Headlight (Except TMC Made): Notes

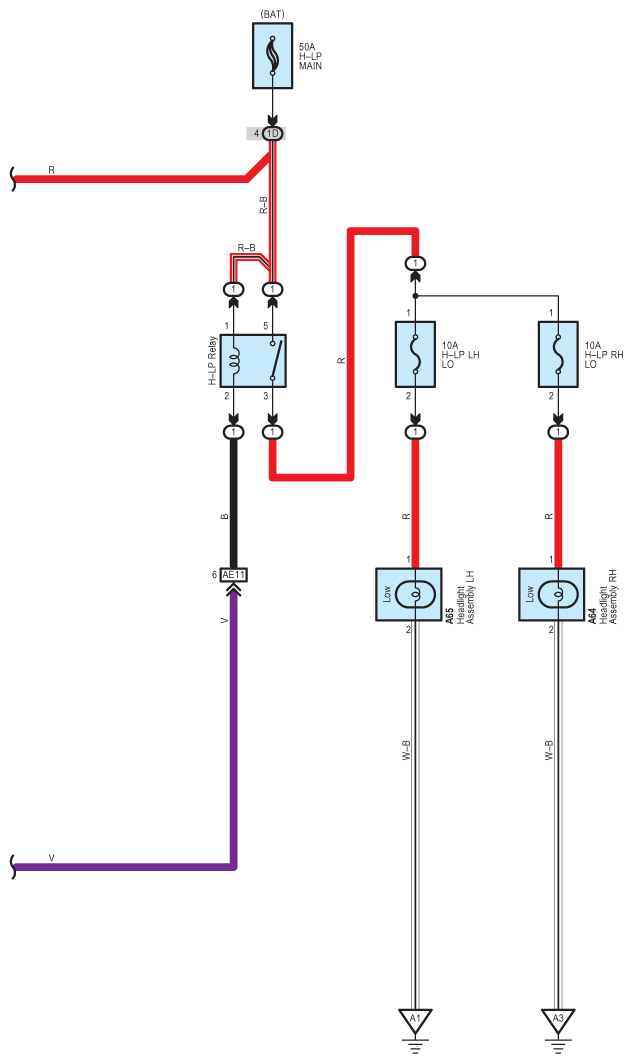

Fig 1: Headlight System Wiring Diagram (Except TMC Made; 1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Headlight System Wiring Diagram (Except TMC Made; 2 Of 3)

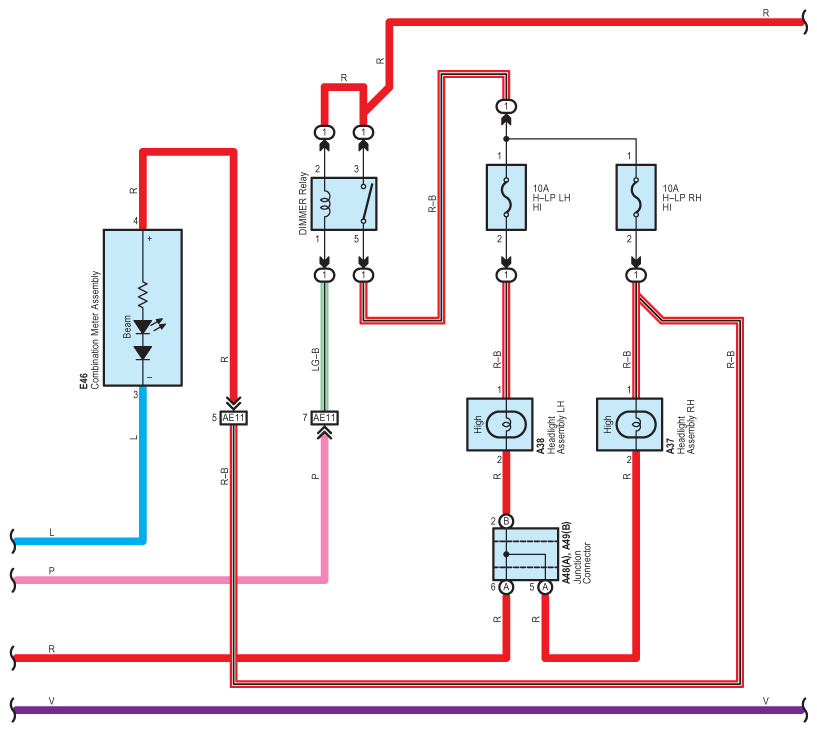

Fig 3: Headlight System Wiring Diagram (Except TMC Made; 3 Of 3)
