Front Wheel Alignment: Adjustment: Adjustment

NOTE:

For vehicles equipped with VSC, if the wheel alignment has been adjusted, and if suspension or underbody components have been removed/installed or replaced, be sure to perform the following initialization procedure in order for the system to function normally:

Disconnect the cable from the negative (-) battery terminal for more than 2 seconds.
Reconnect the cable to the negative (-) battery terminal.
Perform zero point calibration of the yaw rate and acceleration sensor and test mode inspection.

INSPECT TIRES . Refer to INSPECTION - Step 1

MEASURE VEHICLE HEIGHT

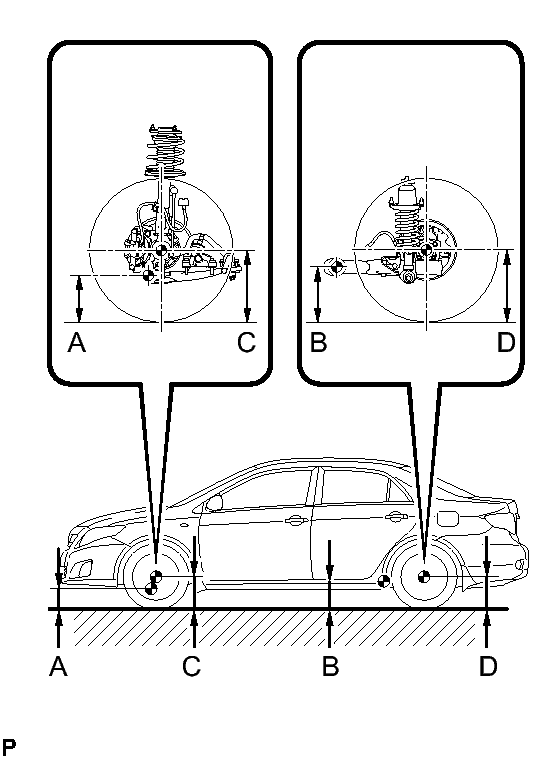

Fig 1: Measuring Vehicle Height

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NOTE:

Before inspecting the wheel alignment, adjust the vehicle height to the specified value.
Be sure to perform measurement on a level surface.
If it is necessary to go under the vehicle for measurement, confirm that the parking brake is applied and the vehicle is secured with chocks.

Bounce the vehicle up and down at the corners several times to stabilize the suspension.

Measure the vehicle height.

Measuring points

No. 1 lower suspension arm bushing set bolt ground clearance

Rear axle beam set bolt ground clearance

Front wheel center ground clearance

Rear wheel center ground clearance

Vehicle Height (Unloaded Vehicle)

-	Engine	Front C - A	Rear D - B
for TMC Made	2ZR-FE	92 mm (3.62 in.)	45 mm (1.77 in.)
except TMC Made	2ZR-FE	92 mm (3.62 in.) 80 mm (3.15 in.)*	45 mm (1.77 in.) 32 mm (1.26 in.)*
except TMC Made	2AZ-FE	96 mm (3.78 in.) 81 mm (3.19 in.)*	51 mm (2.01 in.) 36 mm (1.42 in.)*

* For vehicle height for Mexico, add 15 mm (0.591 in.).

INSPECT WHEEL ANGLE

Fig 2: Measuring Turning Angle

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Put tread center marks on the rearmost points of the turning radius gauge.

Turn the steering wheel to the left and right full lock positions, and measure the turning angle.

Wheel Angle (Unloaded Vehicle)

-	Engine	Tire Size	Inside Wheel	Outside Wheel Reference
for TMC Made	2ZR-FE	195/65R15	38°13' +/- 2° (38.22° +/- 2°)	32°50' (32.83°)
for TMC Made	2ZR-FE	205/55R16	38°13' +/- 2° (38.22° +/- 2°)	32°50' (32.83°)
except TMC Made	2ZR-FE	195/65R15	38°13' +/- 2° (38.22° +/- 2°)	32°50' (32.83°)
	2ZR-FE	205/55R16	38°13' +/- 2° (38.22° +/- 2°) 38°31' +/- 2° (38.52° +/- 2°)*	32°50' (32.83°) 33°04' (33.07°)*
	2AZ-FE	205/55R16*	37°19' +/- 2° (37.32° +/- 2°)*	32°18' (32.30°)*
	2AZ-FE	215/45R17	36°59' +/- 2° (36.98° +/- 2°)	32°01' (32.02°)

* For vehicle height for Mexico, add 15 mm (0.591 in.).

If the angles are not as specified, check and adjust the right and left rack end lengths.

INSPECT CAMBER, CASTER AND STEERING AXIS INCLINATION

Fig 3: Inspecting Camber, Caster And Steering Axis Inclination

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Install a camber-caster-kingpin gauge or place the front wheels on the center of a wheel alignment tester.

Inspect the camber, caster and steering axis inclination.

Camber (Unloaded Vehicle)

-	Engine	Tire Size	Camber Inclination	Right-Left Difference
for TMC Made	2ZR-FE	195/65R15	-0°35' +/- 45' (-0.58° +/- 0.75°)	45' (0.75°) or less
for TMC Made	2ZR-FE	205/55R16	-0°35' +/- 45' (-0.58° +/- 0.75°)
except TMC Made	2ZR-FE	195/65R15	- 0°34' +/- 45' (- 0.57° +/- 0.75°)
	2ZR-FE	205/55R16	- 0°35' +/- 45' (- 0.58° +/- 0.75°) - 0°26' +/- 45' (- 0.43° +/- 0.75°)*
	2AZ-FE	205/55R16*	- 0°27' +/- 45' (- 0.45° +/- 0.75°)*
	2AZ-FE	215/45R17	- 0°37' +/- 45' (- 0.62° +/- 0.75°)

* For vehicle height for Mexico, add 15 mm (0.591 in.).

Caster (Unloaded Vehicle)

-	Engine	Tire Size	Caster Inclination	Right-Left Difference
for TMC Made	2ZR-FE	195/65R15	2°50' +/- 45' (2.83° +/- 0.75°)	45' (0.75°) or less
for TMC Made	2ZR-FE	205/55R16	2°51' +/- 45' (2.85° +/- 0.75°)
except TMC Made	2ZR-FE	195/65R15	2°50' +/- 45' (2.83° +/- 0.75°)
	2ZR-FE	205/55R16	2°50' +/- 45' (2.83° +/- 0.75°) 2°41' +/- 45' (2.68° +/- 0.75°)*
	2AZ-FE	205/55R16*	2°45' +/- 45' (2.75° +/- 0.75°)*
	2AZ-FE	215/45R17	2°55' +/- 45' (2.92° +/- 0.75°)

* For vehicle height for Mexico, add 15 mm (0.591 in.).

Steering Axis Inclination (Unloaded Vehicle)

-	Engine	Tire Size	Steering Axis Inclination
for TMC Made	2ZR-FE	195/65R15	12°32' (12.53°)
for TMC Made	2ZR-FE	205/55R16	12°32' (12.53°)
except TMC Made	2ZR-FE	195/65R15	12°32' (12.53°) 12°13' (12.22°)*
	2ZR-FE	205/55R16	12°32' (12.53°) 12°13' (12.22°)*
	2AZ-FE	205/55R16*	12°16' (12.27°)*
	2AZ-FE	215/45R17	12°37' (12.62°)

* For vehicle height for Mexico, add 15 mm (0.591 in.).

ADJUST CAMBER

NOTE:

Inspect toe-in after the camber has been adjusted.

Remove the front wheel.
Remove the bolt and separate the front flexible hose from the front shock absorber.

Fig 4: Locating Front Speed Sensor Bolt
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Remove the clamp and separate the front speed sensor from the front shock absorber (except TMC Made).

Fig 5: Identifying Front Speed Sensor Clamp
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Remove the 2 nuts on the lower side of the front shock absorber.

Fig 6: Locating Front Shock Absorber With Coil Spring (Lower Side) Bolts And Nuts
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NOTE:
Keep the bolts inserted.
Clean the installation surfaces of the front shock absorber and the steering knuckle.
Temporarily install the 2 nuts (Step A).
Fully push or pull the front axle hub in the direction of the required adjustment (Step B).

Fig 7: Adjusting Front Axle Hub
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Tighten the nuts.
Torque: 240 N*m (2448 kgf*cm, 176 ft.*lbf)

NOTE:
Keep the bolts from rotating when tightening the nuts.
Install the front speed sensor with the clamp to the front shock absorber (except TMC Made).

Fig 8: Identifying Front Speed Sensor Clamp
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Install the front speed sensor and the front flexible hose to the front shock absorber with the bolt.

Fig 9: Locating Front Speed Sensor Bolt
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Torque: 29 N*m (296 kgf*cm, 21 ft.*lbf)
Install the front wheel.
Torque: 103 N*m (1050 kgf*cm, 76 ft.*lbf)

Check the camber.

Fig 10: Identifying Set Bolt And Adjust Bolt

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

If the measured value is not within the specification, calculate the required adjustment amount using the formula below.

Camber adjustment amount = center value of the specified range - measured value

Check the combination of installed bolts. Select appropriate bolts from the table below to adjust the camber to the specified values.

HINT:

Try to adjust the camber to the center of the specified values.

Move the Axle toward (+) in Step (B)	Move the Axle toward (-) in Step (B)
Refer to table (1) (Move the axle toward the positive side)	Refer to table (2) (Move the axle toward the negative side)

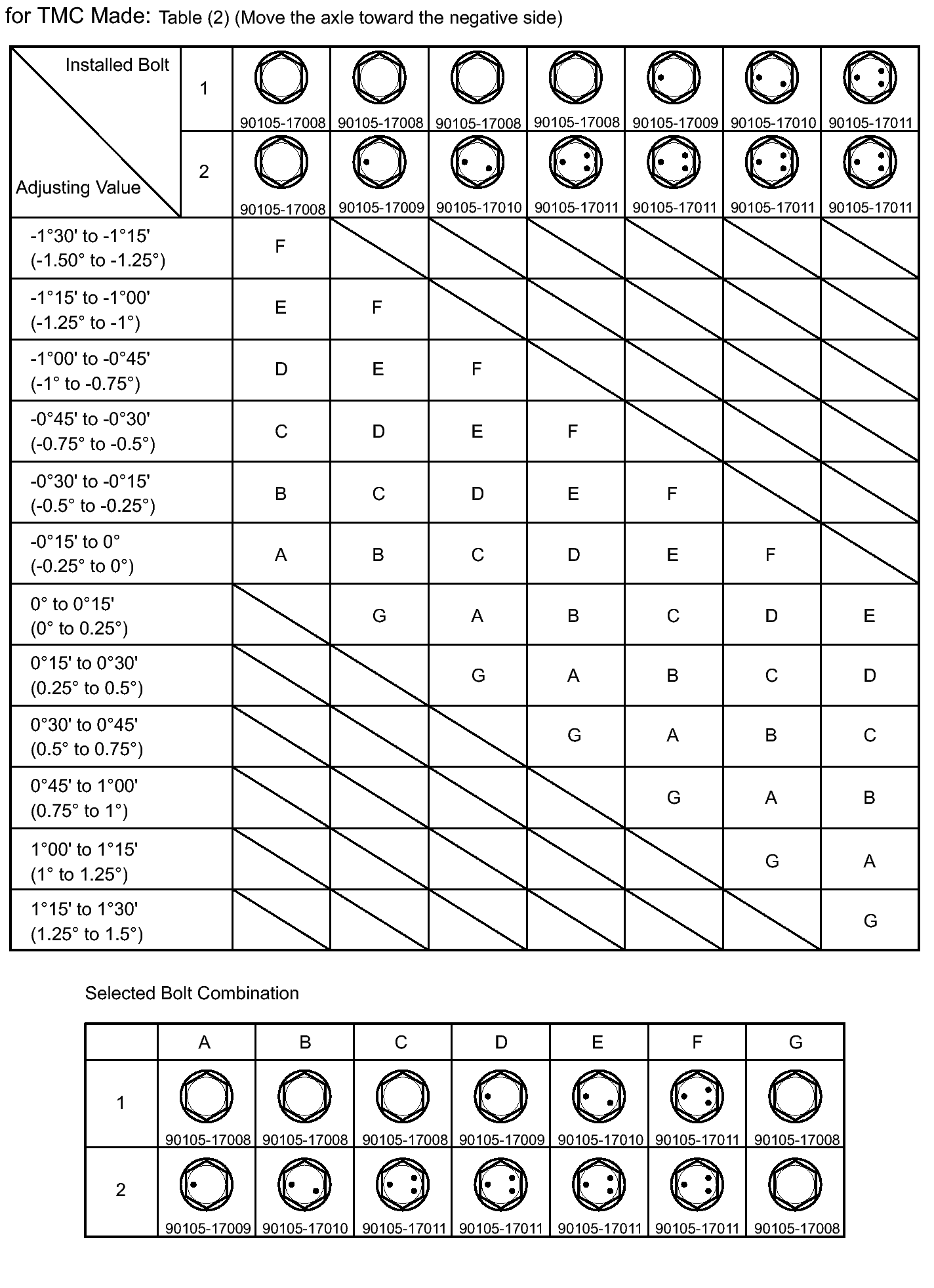

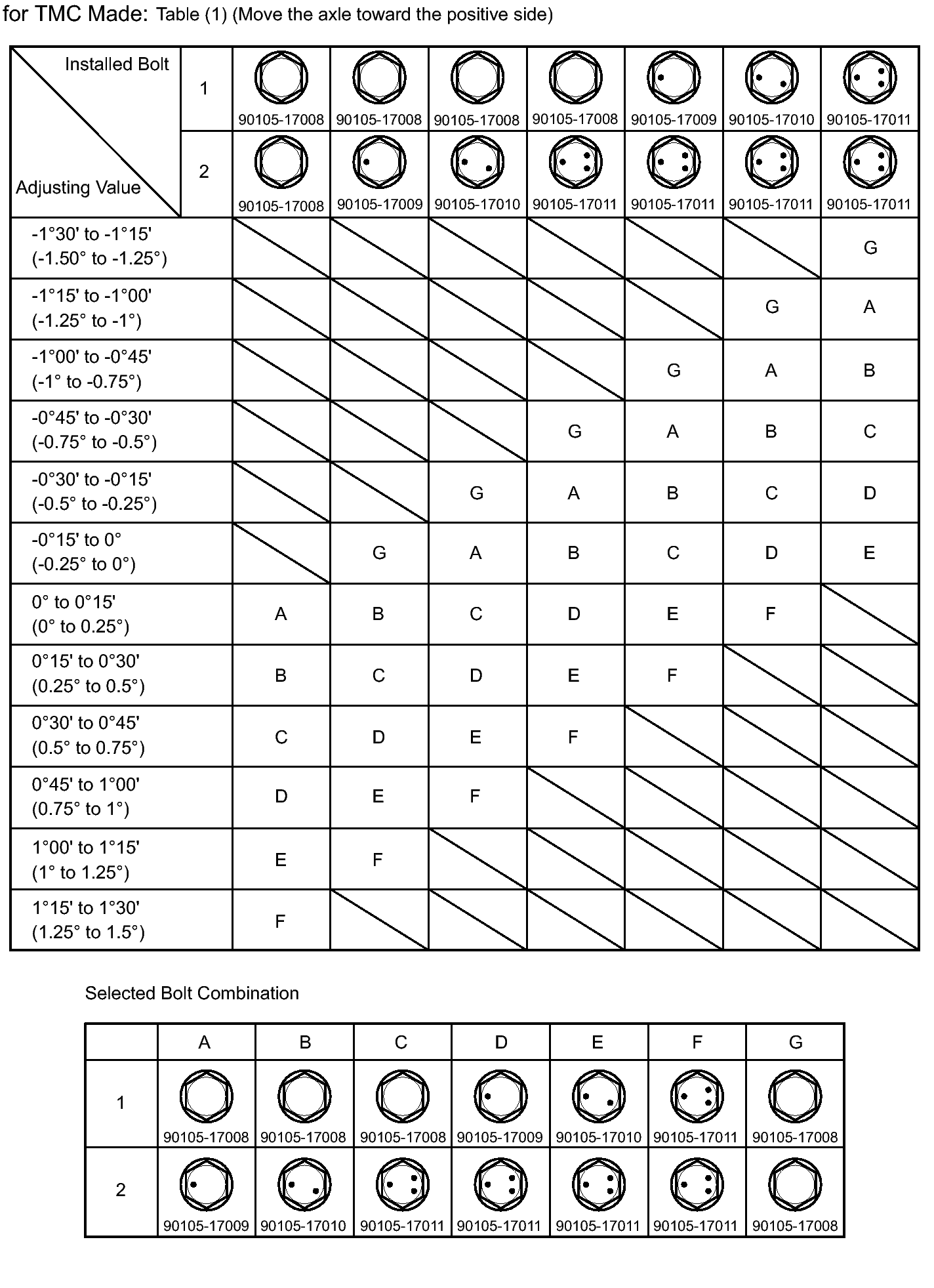

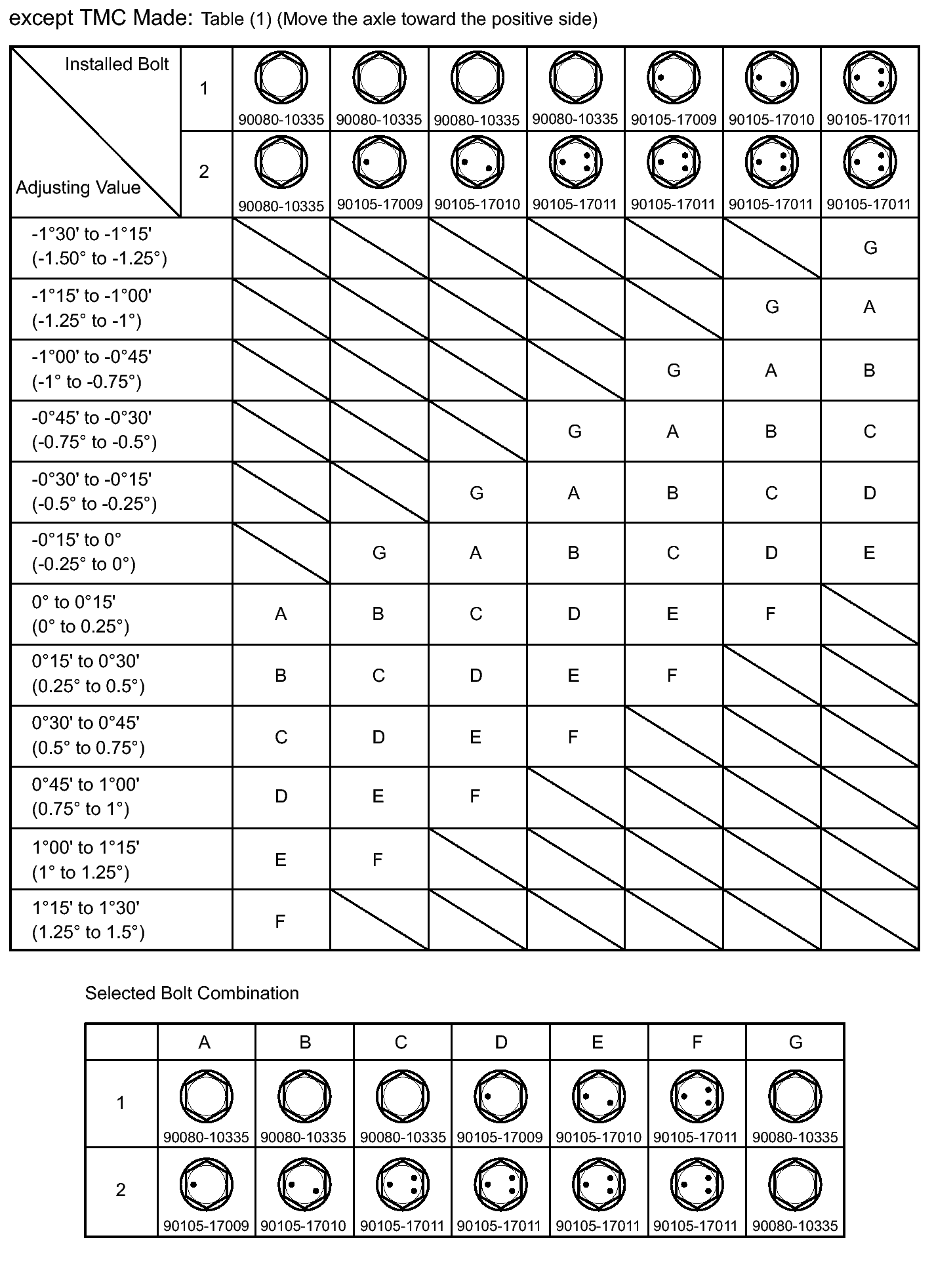

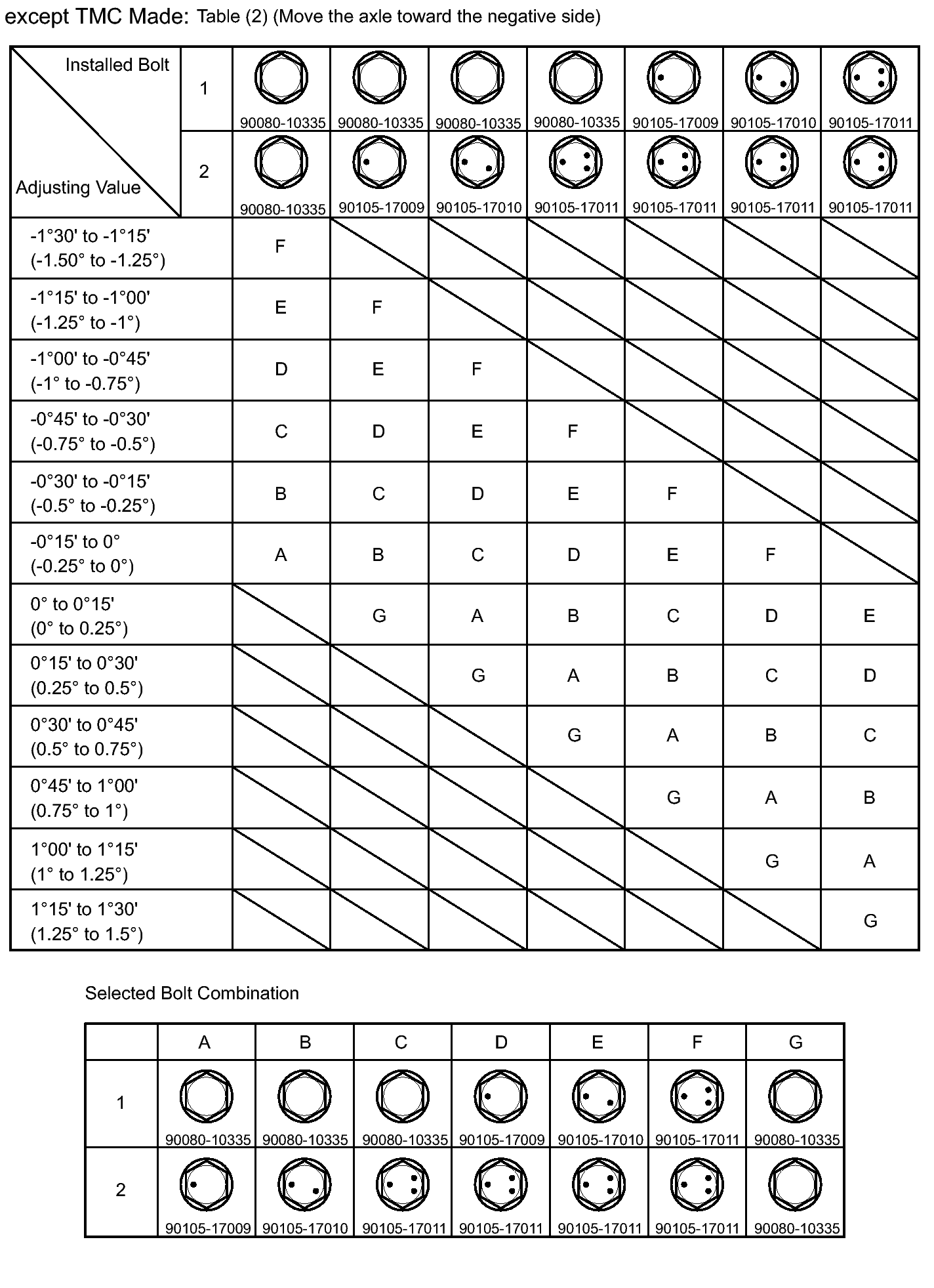

Fig 11: Bolt Specification Chart (1 Of 4)

Fig 12: Bolt Specification Chart (2 Of 4)

Fig 13: Bolt Specification Chart (3 Of 4)

Fig 14: Bolt Specification Chart (4 Of 4)

The body and suspension may be damaged if the camber is not correctly adjusted according to the table above.

NOTE:

Replace the nut with a new one when replacing the bolt.

Repeat the steps mentioned above. In step (A), replace 1 or 2 selected bolts.
HINT:

Replace 1 bolt at a time when replacing the 2 bolts.

INSPECT TOE-IN

Bounce the vehicle up and down at the corners several times to stabilize the suspension.
Release the parking brake and move the shift lever to N.
Push the vehicle straight ahead approximately 5 m (16.4 ft.). (*1)
Put tread center marks on the rearmost points of the front wheels and measure the distance between the marks (dimension B).

Fig 15: Identifying Tread Center Marks On Rearmost Points Of Front Wheels
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Slowly push the vehicle straight ahead to rotate the front wheels 180° using the front tire valve as a reference point.
HINT:

Do not allow the wheels to rotate more than 180°. If the wheels rotate more than 180°, perform the procedure from (*1) again.

Measure the distance between the tread center marks on the front side of the wheels (dimension A).

Fig 16: Measuring Distance Between Tread Center Marks On Front Side Of Wheels (Dimension A)

Toe-in

Specified Condition
C + D: 0°00' +/- 0°12' (0° +/- 0.2°) B - A: 0 +/- 2.0 mm (0 +/- 0.0787 in.)

HINT:

Measure "B - A" only when "C + D" cannot be measured.
If the toe-in is not within the specified range, adjust it at the rack ends.

ADJUST TOE-IN
1. Make sure that the lengths of the right and left rack ends are almost the same.

  Fig 17: Identifying Difference Between Right And Left Rack Ends
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Difference between right and left rack ends

  1.5 mm (0.0591 in.) or less
2. Remove the boot clips.
3. Loosen the tie rod end lock nuts.

  Fig 18: Locating Tie Rod End Lock Nuts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Turn the right and left rack ends by an equal amount to adjust the toe-in to the center value.
  1. Extend the shorter rack end if the measured toe-in deviates toward the outer side.
  2. Shorten the longer rack end if the measured toe-in deviates toward the inner side.
5. Tighten the tie rod end lock nuts.
  Torque: 74 N*m (755 kgf*cm, 55 ft.*lbf)
6. Place the boots on the seats and install the clips.
  HINT:

  Make sure that the boots are not twisted.
PLACE FRONT WHEELS FACING STRAIGHT AHEAD
DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL (w/ VSC)
NOTE:
Disconnect the cable from the negative (-) battery terminal for more than 2 seconds.
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL (w/ VSC)
PERFORM YAW RATE SENSOR ZERO POINT CALIBRATION (w/ VSC)
Refer to CALIBRATION .
CHECK STEERING ANGLE SENSOR ZERO POINT CALIBRATION (w/ VSC)
Refer to PROCEDURE - Step 2 .
