FJ Cruiser 4WD, Automatic T/Case Control
›
Repair and Diagnosis
›
Electrical
›
Body Electrical
›
OEM System Circuits
›
Parking Assist (Intuitive Parking Assist)
›
Notes
Parking Assist (Intuitive Parking Assist): Notes

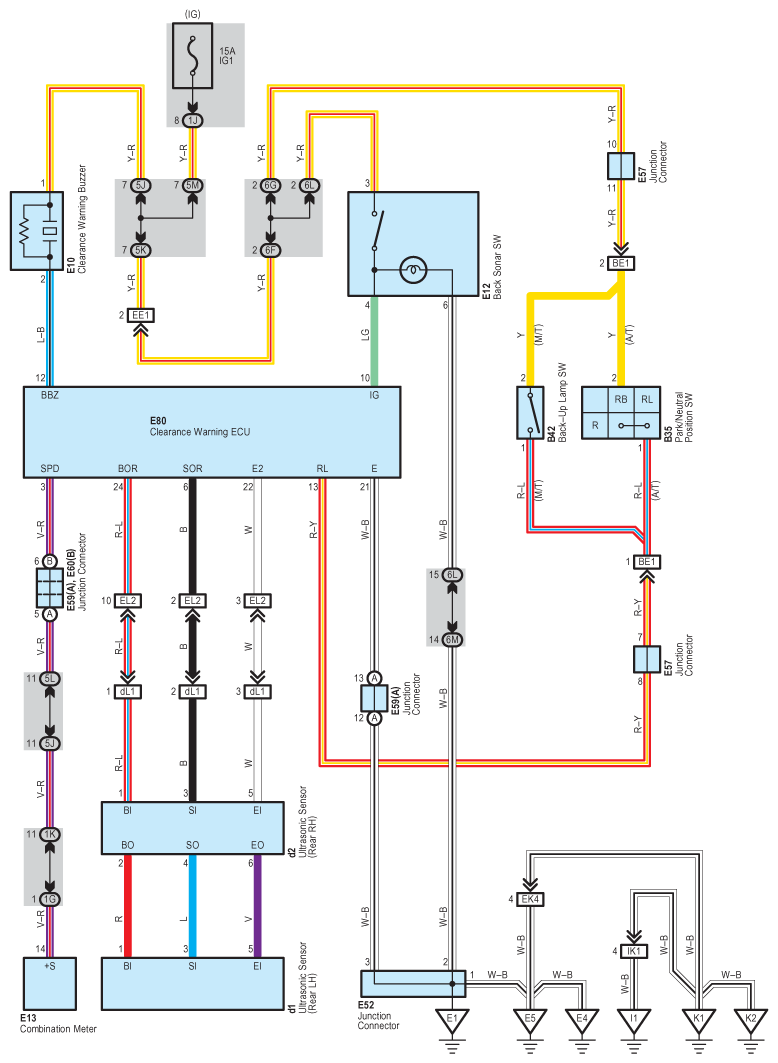

Fig 1: Parking Assist (Intuitive Parking Assist) System Wiring Diagram
