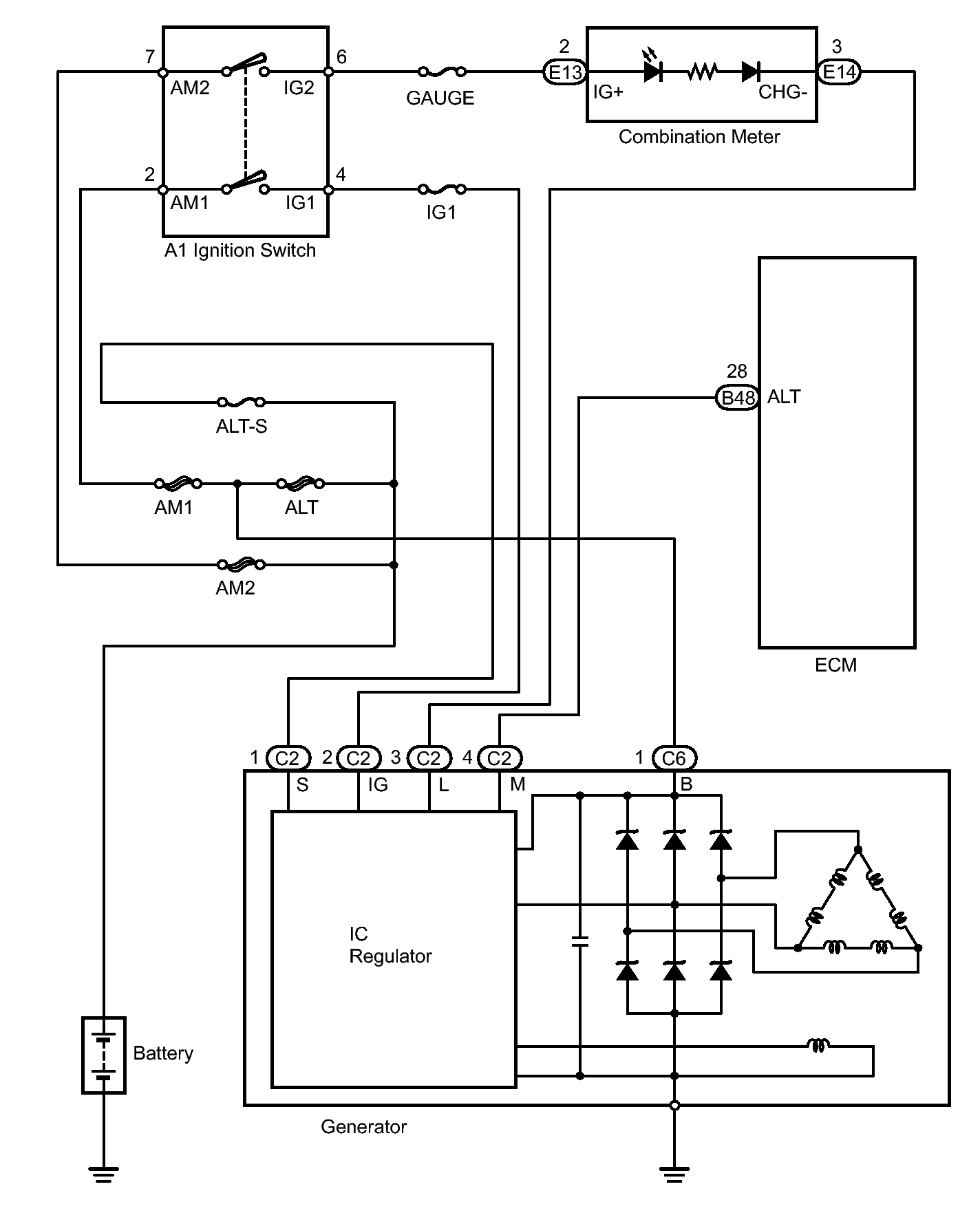

Home › Toyota › 2012 › FJ Cruiser 4WD, Automatic T/Case Control › Repair and Diagnosis › Electrical › Charging Systems › Charging System (Inspection) › Charging System › System Diagram › System Diagram
