System Diagram

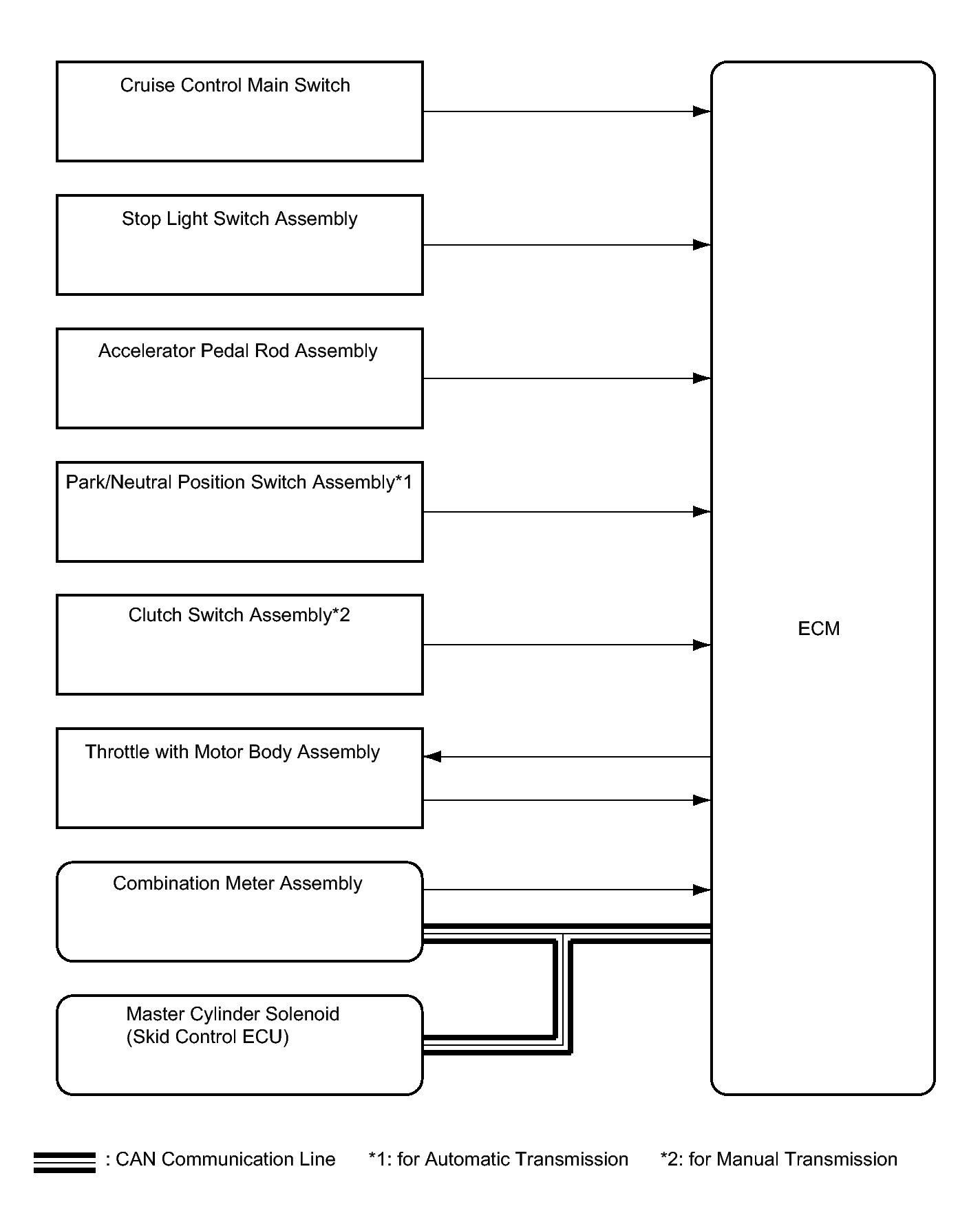

Fig 1: Cruise Control System Circuit Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

COMMUNICATION TABLE

Sender	Receiver	Signal	Line
ECM	Combination Meter Assembly	Cruise main indicator light signal	CAN
Skid Control ECU	ECM	Vehicle stability control system operation signal	CAN
