Power Outlet (115V): Notes

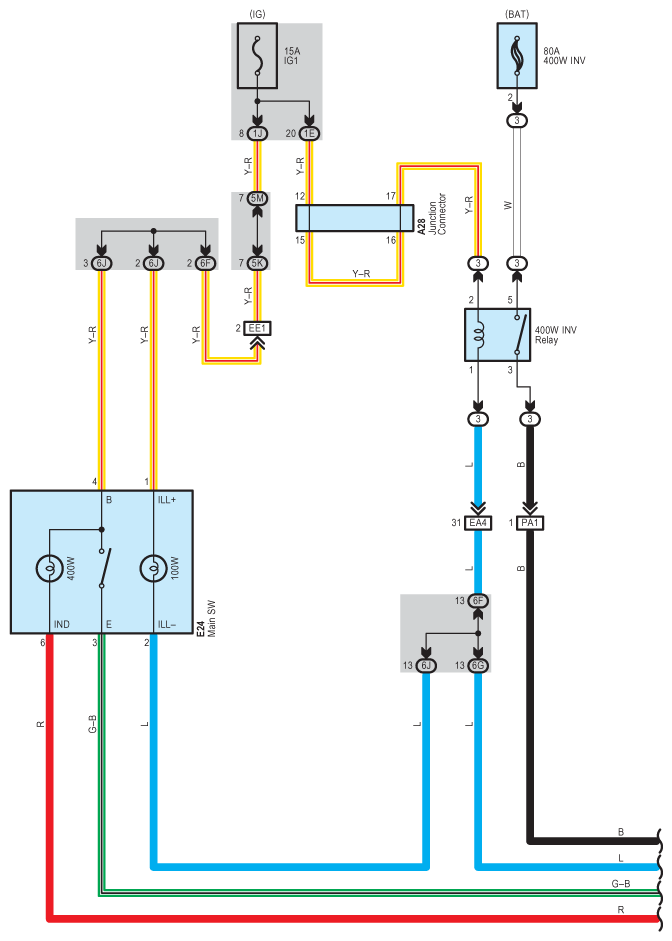

Fig 1: Power Outlet (115V) System Wiring Diagram (1 Of 3)
G08843631Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

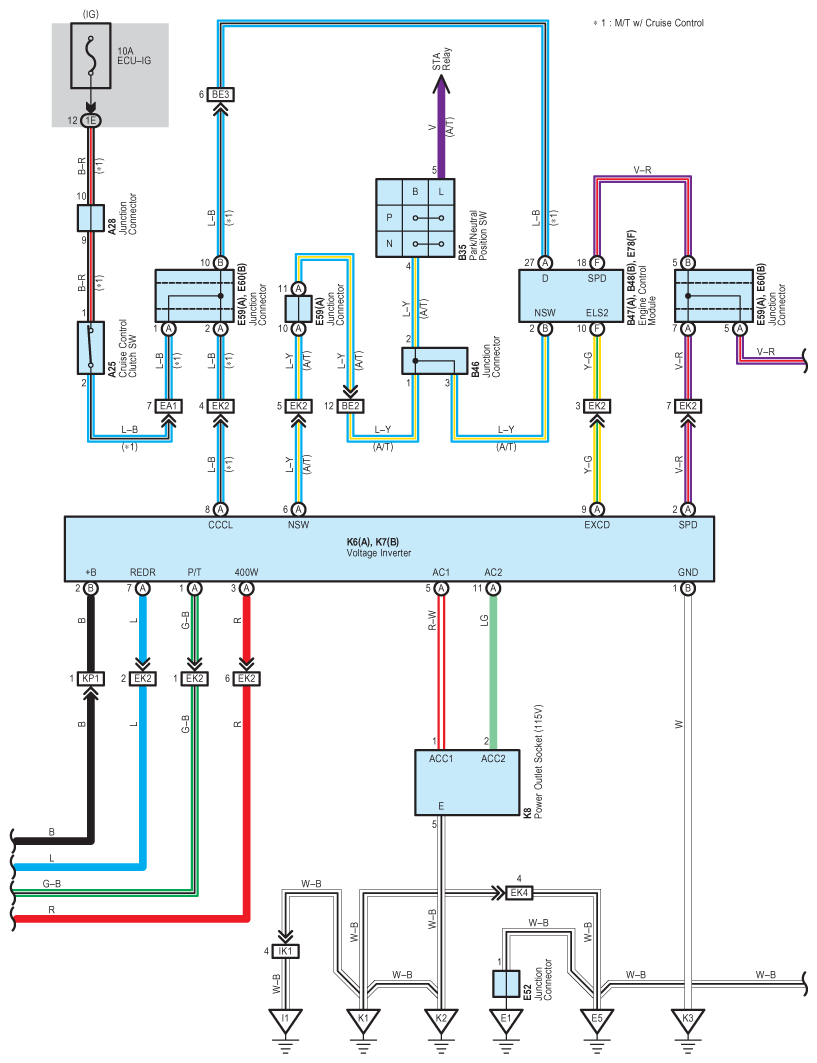

Fig 2: Power Outlet (115V) System Wiring Diagram (2 Of 3)
G08843632Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

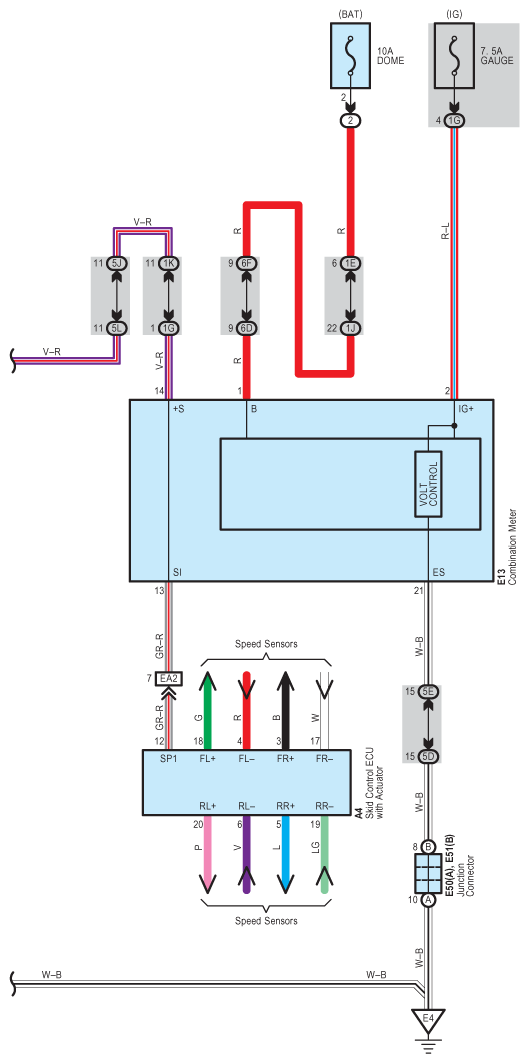

Fig 3: Power Outlet (115V) System Wiring Diagram (3 Of 3)
G08843633Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
