FJ Cruiser 4WD, Part Time T/Case Control
›
Repair and Diagnosis
›
Electrical
›
Body Electrical
›
OEM System Circuits
›
Power Outlet (12V)
›
Notes
Power Outlet (12V): Notes

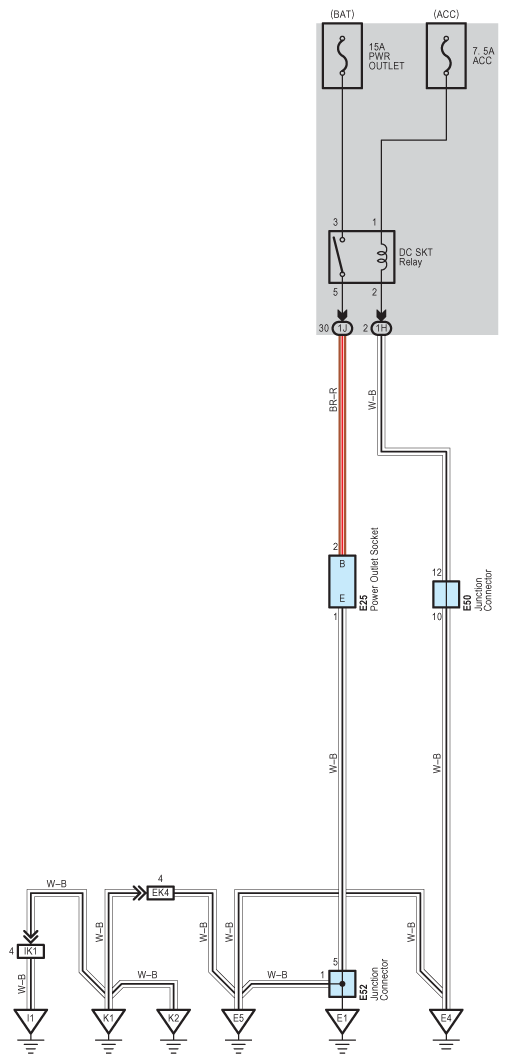

Fig 1: Power Outlet (12V) System Wiring Diagram
