Light Control Rheostat: Installation: Installation

INSTALL LIGHT CONTROL RHEOSTAT

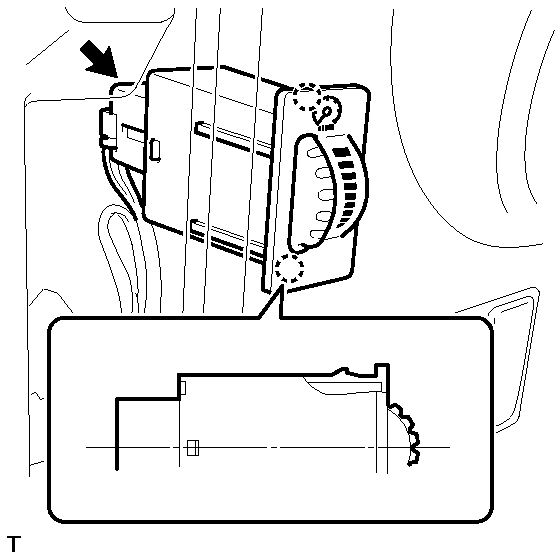

Fig 1: Identifying Light Control Rheostat Connector
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Engage the 2 claws and install the light control rheostat.
2. Connect the connector.
INSTALL NO. 1 INSTRUMENT PANEL REGISTER ASSEMBLY . Refer to INSTALLATION - Step 35
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
Torque: 3.9 N*m (40 kgf*cm, 35 in.*lbf)
