OEM System Circuits: Clock: Notes

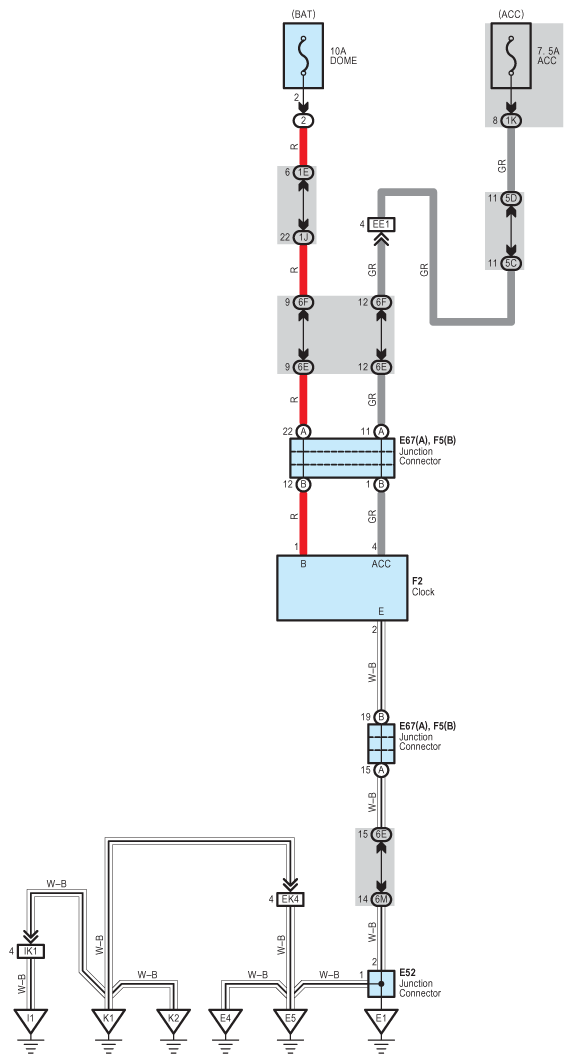

Fig 1: Clock System Wiring Diagram
G08843638Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
