Multiplex Communication System (CAN)
›
Notes
Multiplex Communication System (CAN): Notes

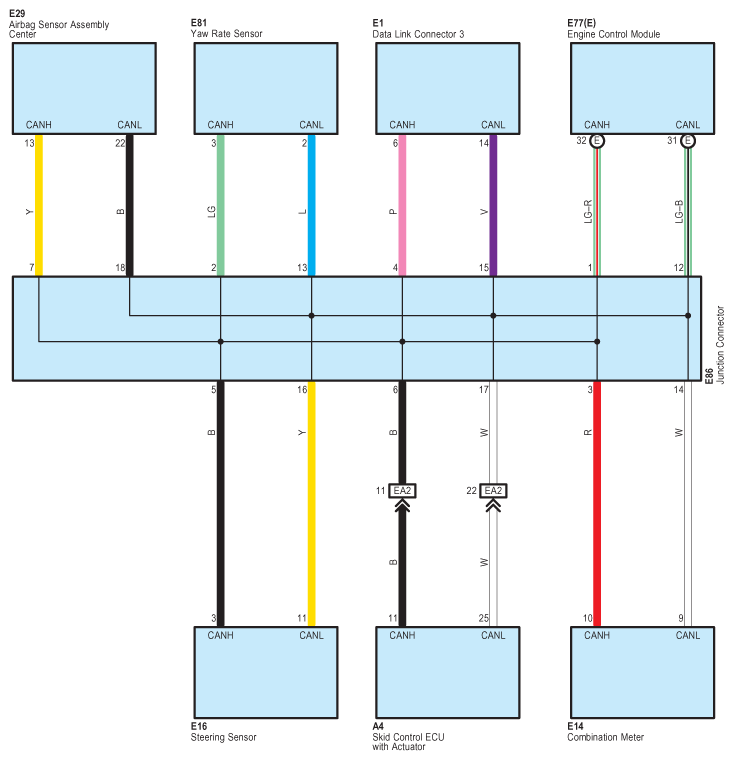

Fig 1: Multiplex Communication System (CAN) Wiring Diagram
