Stop Light: Notes

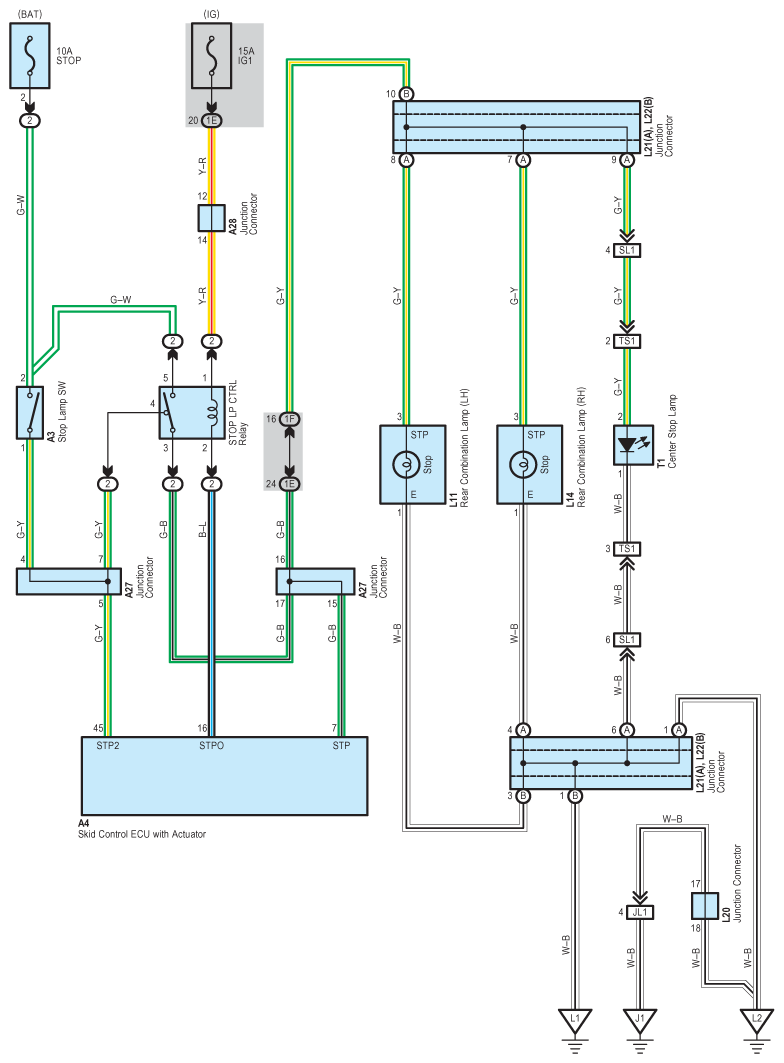

Fig 1: Stop Light System Wiring Diagram

G08843569

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
