Fuel Pump: Disassembly: Disassembly

NOTE:

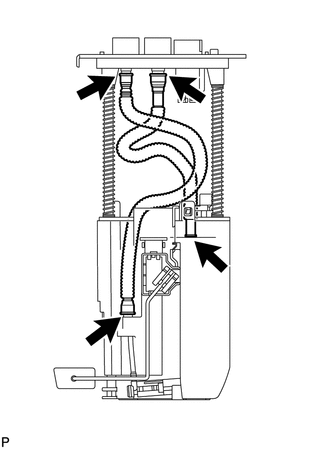

Do not disconnect the hoses indicated in the illustration.

Fig 1: Identifying Hoses Not To Be Disconnected

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE NO. 1 FUEL SUB-TANK

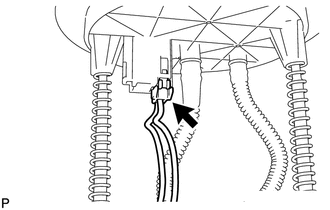

Disconnect the fuel pump connector.

Fig 2: Identifying Fuel Pump Connector
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Disconnect the jet pump from the No. 1 fuel sub-tank.

Fig 3: Identifying Jet Pump And Protective Tape

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

TEXT IN ILLUSTRATION

*1	Jet Pump
*2	Protective Tape

Using a screwdriver with its tip wrapped in protective tape, disengage the claw from the No. 1 fuel sub-tank.
NOTE:
Do not damage the No. 1 fuel sub-tank.
Disengage the 3 claws.

Fig 4: Identifying Fuel Sub-Tank Claws
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NOTE:
Do not damage the No. 1 fuel sub-tank.
Disengage the 3 claws and remove the No. 1 fuel sub-tank.

Fig 5: Identifying No. 1 Fuel Sub-Tank And Claws Location
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NOTE:
Do not damage the No. 1 fuel sub-tank.

REMOVE FUEL PUMP

Disengage the 5 claws and separate the fuel pump from the fuel filter case.

Fig 6: Identifying Fuel Filter Case And Claws Location
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
TEXT IN ILLUSTRATION

*1 Fuel Filter Case
Disconnect the fuel pump wire harness connector from the fuel pump to remove it.

Remove the O-ring and fuel pump spacer from the fuel pump.

Fig 7: Identifying O-Ring, Fuel Pump Spacer And Fuel Pump

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

TEXT IN ILLUSTRATION

*1	O-ring
*2	Fuel Pump Spacer

REMOVE FUEL MAIN VALVE ASSEMBLY

Remove the fuel main valve from the fuel filter case.

Fig 8: Identifying Fuel Main Valve, Fuel Filter Case And O-Rings

TEXT IN ILLUSTRATION

*1	Fuel Filter Case
*2	O-ring
