System Diagram

WARNING: This page is about a different car, the 2012 Lexus GX 460. However, it is still accessible from the selected car via links, so may be relevant.

MOST NETWORK COMMUNICATION LINE

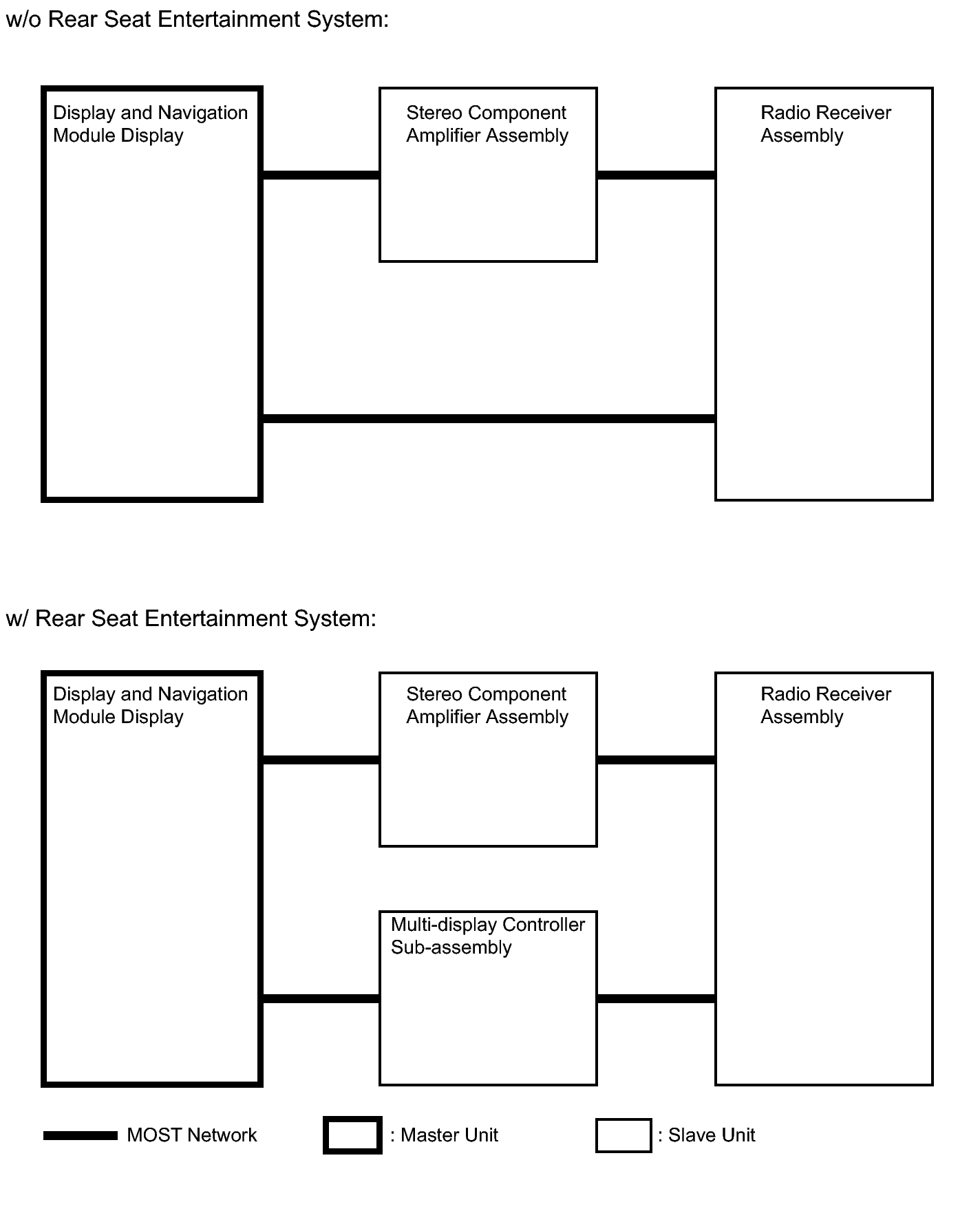

Fig 1: Identifying Most Network Communication Line System Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
AVC-LAN COMMUNICATION LINE

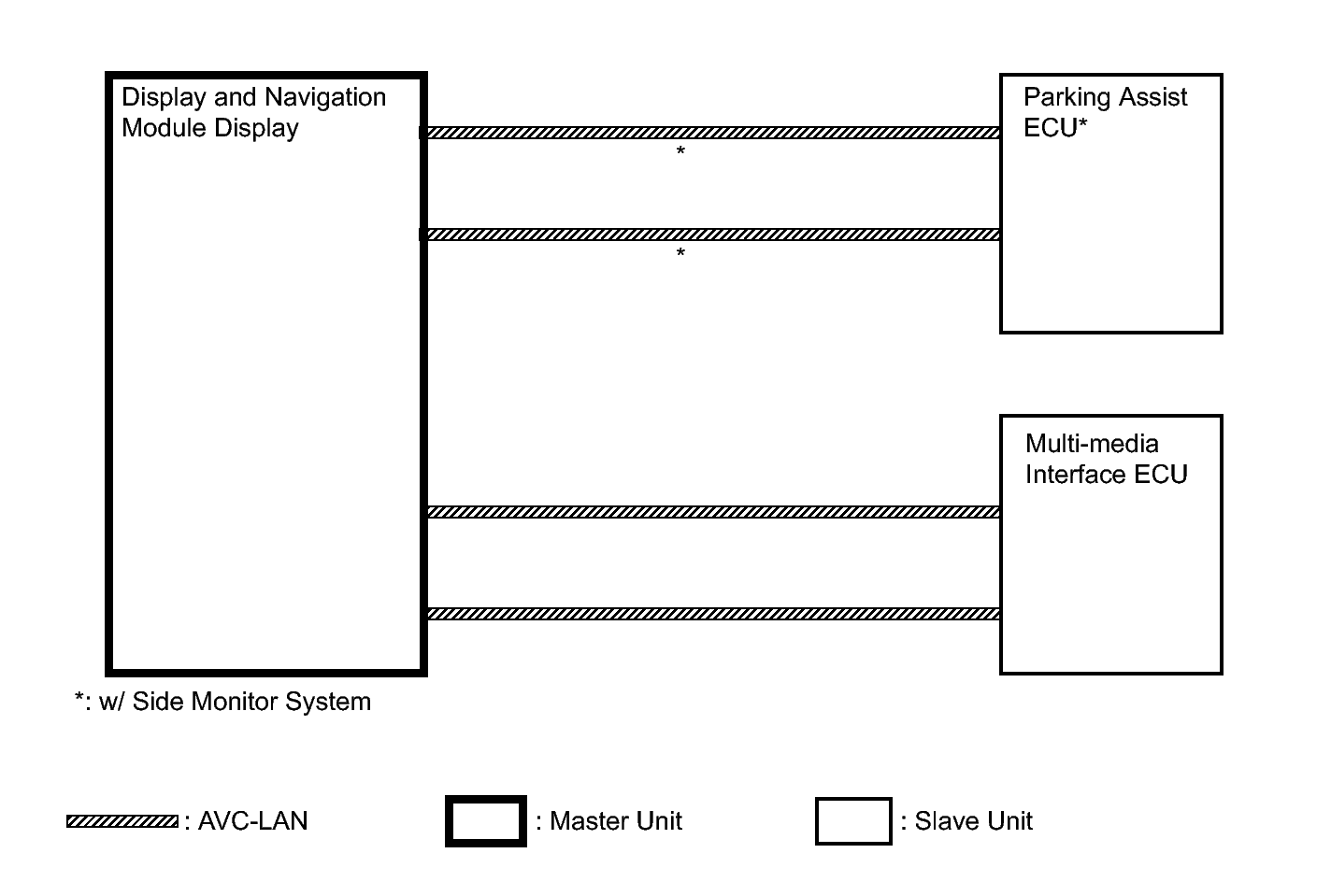

Fig 2: Identifying AVC-LAN Communication Line System Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
OTHER
1. w/ Rear Seat Entertainment System

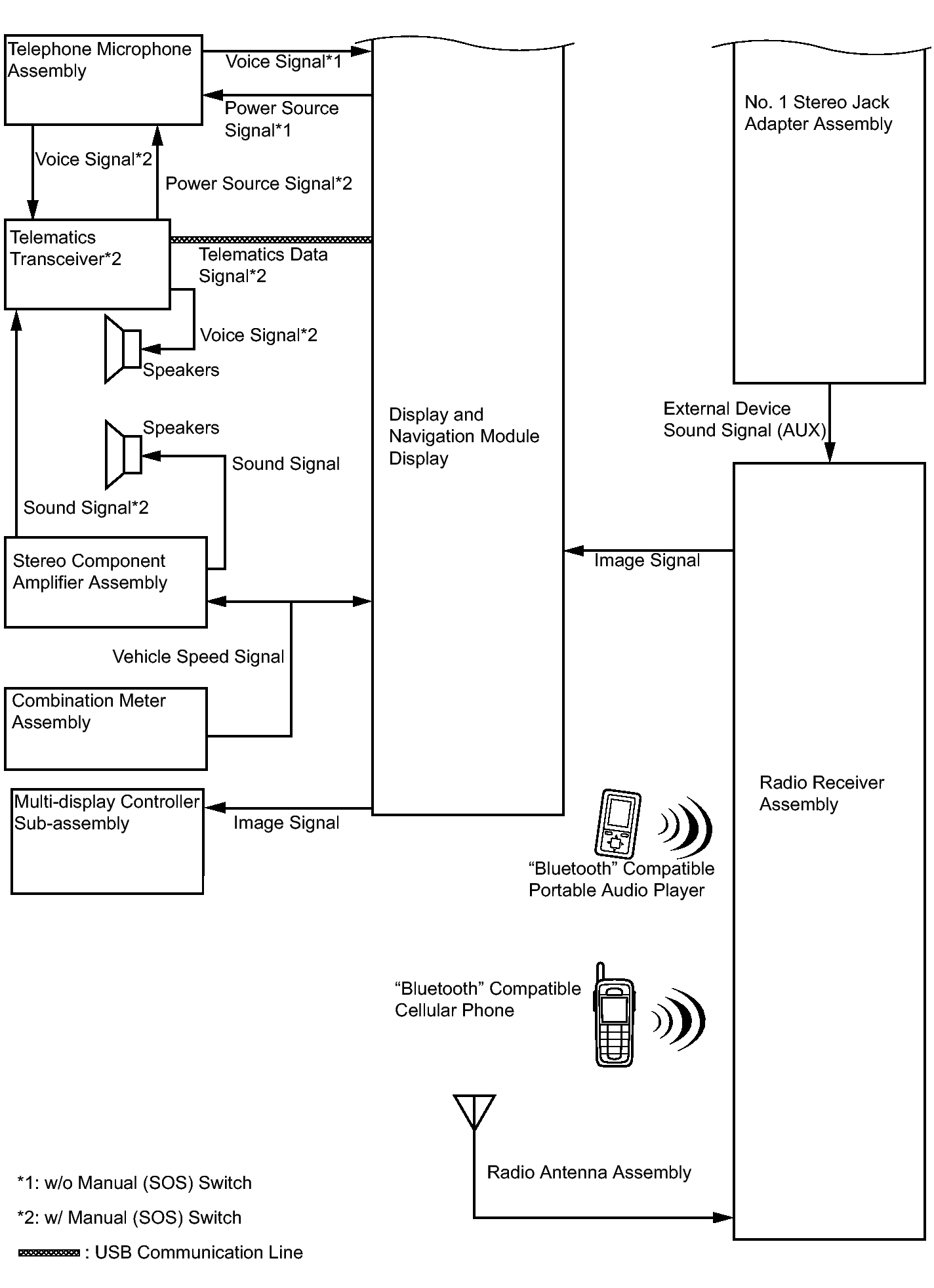

  Fig 3: Identifying Navigation System w/ Rear Seat Entertainment System Diagram (1 Of 2)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

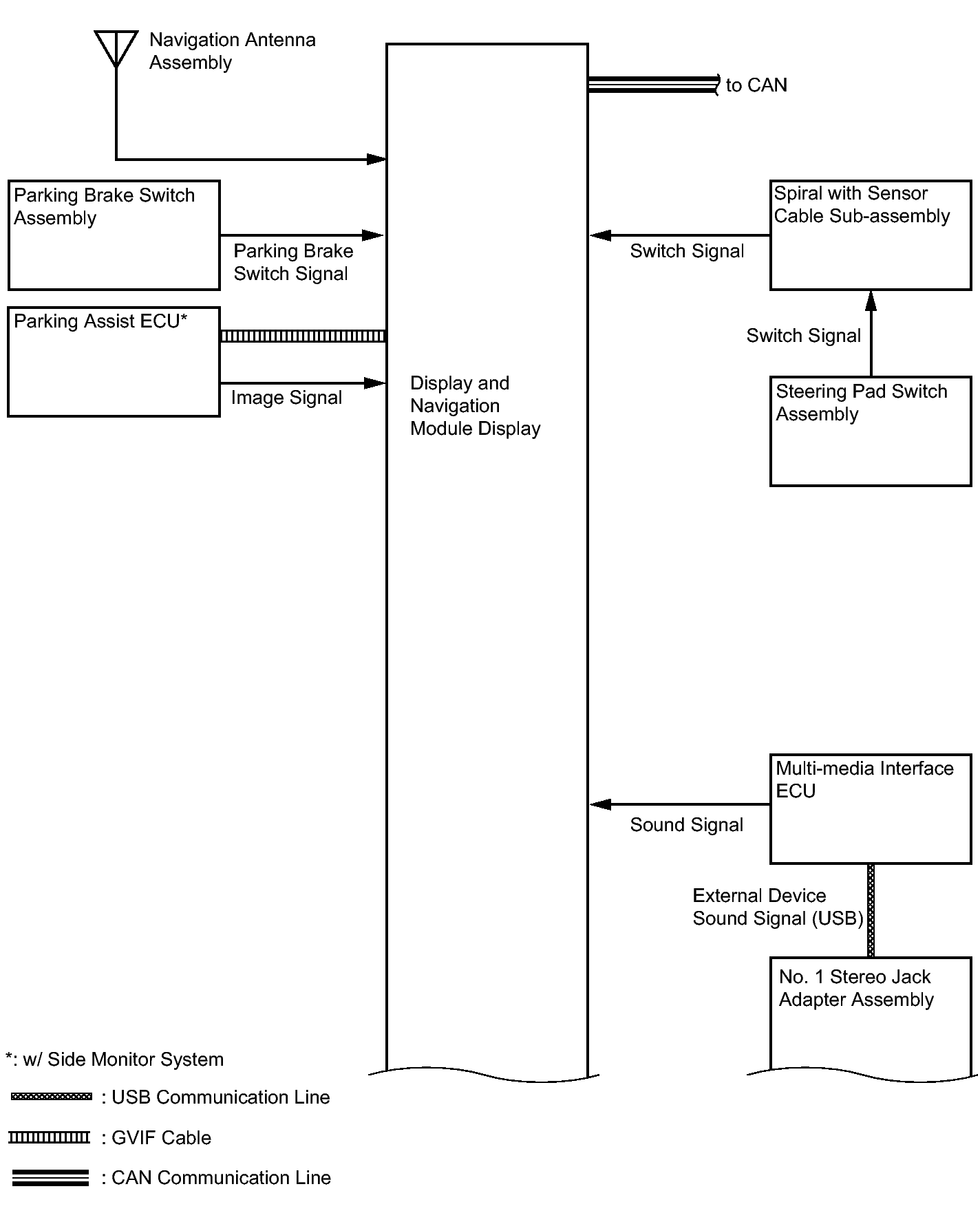

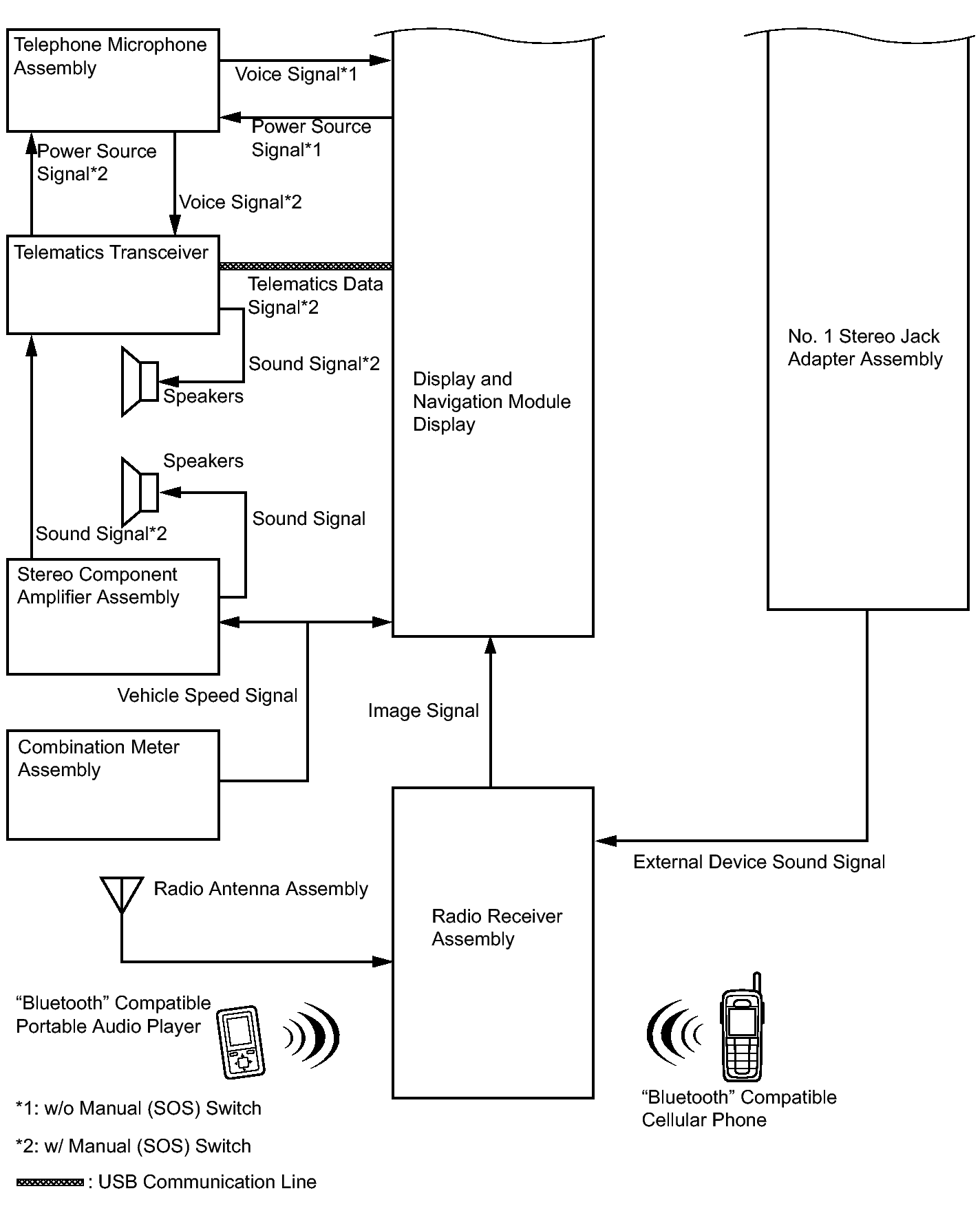

  Fig 4: Identifying Navigation System w/ Rear Seat Entertainment System Diagram (2 Of 2)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. w/o Rear Seat Entertainment System

  Fig 5: Identifying Navigation System w/o Rear Seat Entertainment System Diagram (1 Of 2)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

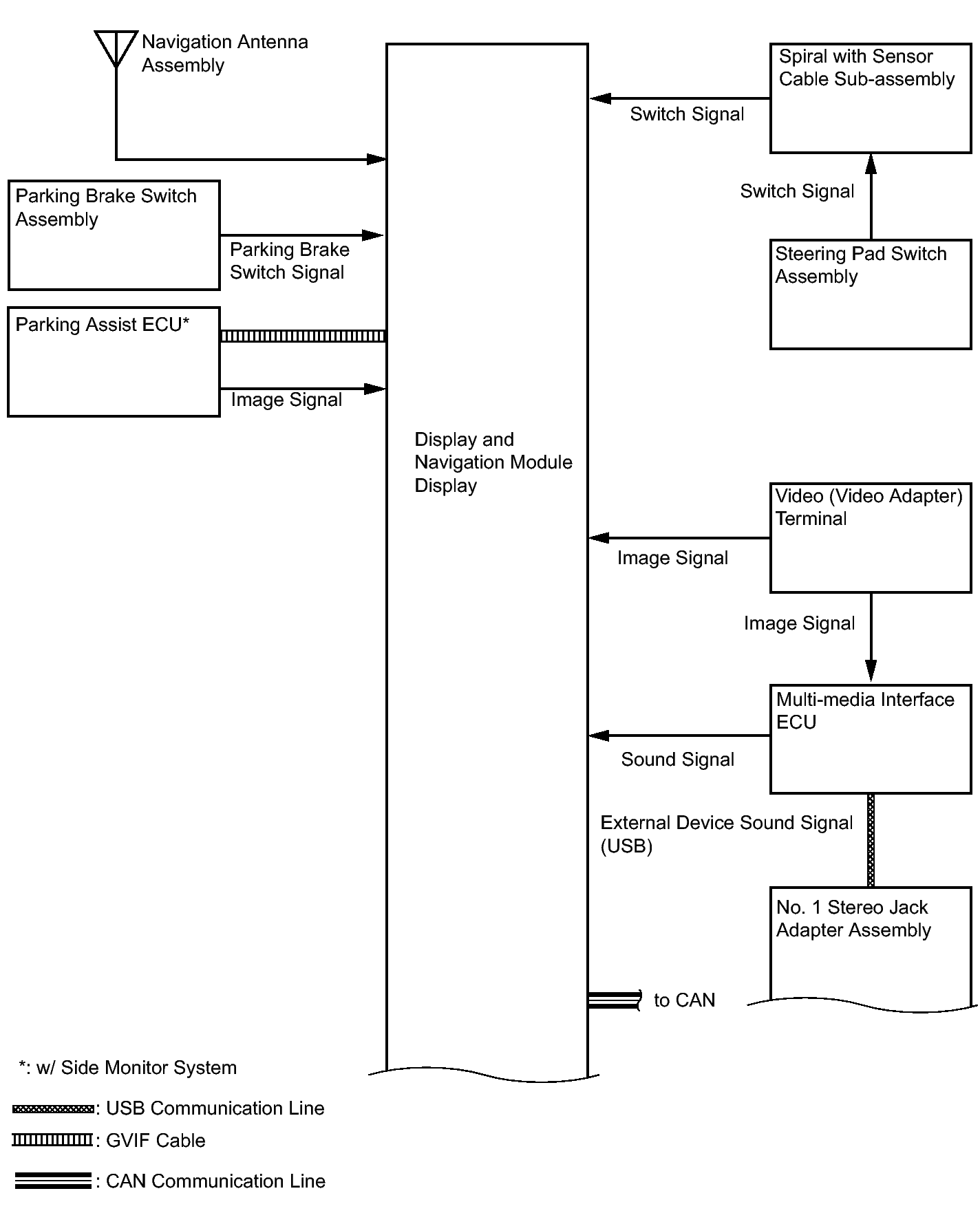

  Fig 6: Identifying Navigation System w/o Rear Seat Entertainment System Diagram (2 Of 2)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
