Display And Navigation Assembly: Installation: Installation

WARNING: This page is about a different car, the 2012 Lexus GX 460. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL HAZARD WARNING SIGNAL SWITCH ASSEMBLY  . Refer to INSTALLATION - Step 1
  2. INSTALL CENTER INSTRUMENT PANEL REGISTER ASSEMBLY
    1. Attach the 8 claws to install the center instrument panel register.
      Fig 1: Identifying Center Instrument Panel Register Assembly And Claws
      GTY263764Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL NO. 2 RADIO BRACKET
    1. Install the No. 2 radio bracket with the 3 bolts.

      Torque: 3.0 N*m (31 kgf*cm, 27 in.*lbf)

  4. INSTALL NO. 1 RADIO BRACKET
    1. Install the No. 1 radio bracket with the 3 bolts.

      Torque: 3.0 N*m (31 kgf*cm, 27 in.*lbf)

    2. Attach the claw and clamp to install the connector.
  5. INSTALL DISPLAY AND NAVIGATION MODULE DISPLAY
    1. Connect the connectors.
    2. Insert the display and navigation module display and attach the 7 clips on the backside of the display and navigation module display.

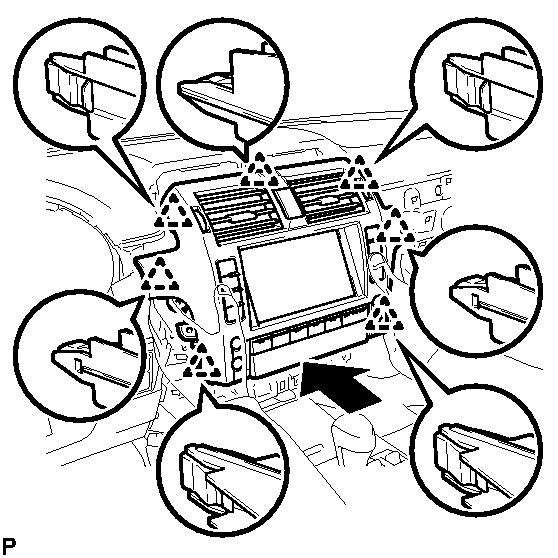

      Fig 2: Identifying Display And Navigation Module Display And Clips
      GTY263978Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      When inserting the display, do not press the knobs on it.

    3. Install the display and navigation module display with the 4 bolts.

      Torque: 12 N*m (122 kgf*cm, 9 ft.*lbf)

  6. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL ASSEMBLY  . Refer to INSTALLATION - Step 30
  7. INSTALL CENTER INSTRUMENT CLUSTER FINISH PANEL GARNISH  . Refer to INSTALLATION - Step 23
  8. INSTALL NO. 2 INSTRUMENT PANEL REGISTER ASSEMBLY  . Refer to INSTALLATION - Step 22
  9. INSTALL RADIO RECEIVER ASSEMBLY WITH BRACKET  . Refer to INSTALLATION - Step 4
  10. INSTALL FRONT UPPER CONSOLE PANEL GARNISH  . Refer to INSTALLATION - Step 13
  11. INSTALL UPPER CONSOLE PANEL SUB-ASSEMBLY  . Refer to INSTALLATION - Step 5
  12. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY  . Refer to INSTALLATION - Step 6
  13. INSTALL INSTRUMENT PANEL FINISH PANEL END RH  . Refer to INSTALLATION - Step 8
  14. INSTALL INSTRUMENT PANEL FINISH PANEL END LH  . Refer to INSTALLATION - Step 7
  15. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected. Refer to INITIALIZATION .
