Engine Control System (Service Information) (Hybrid): ECM: Components: Illustration

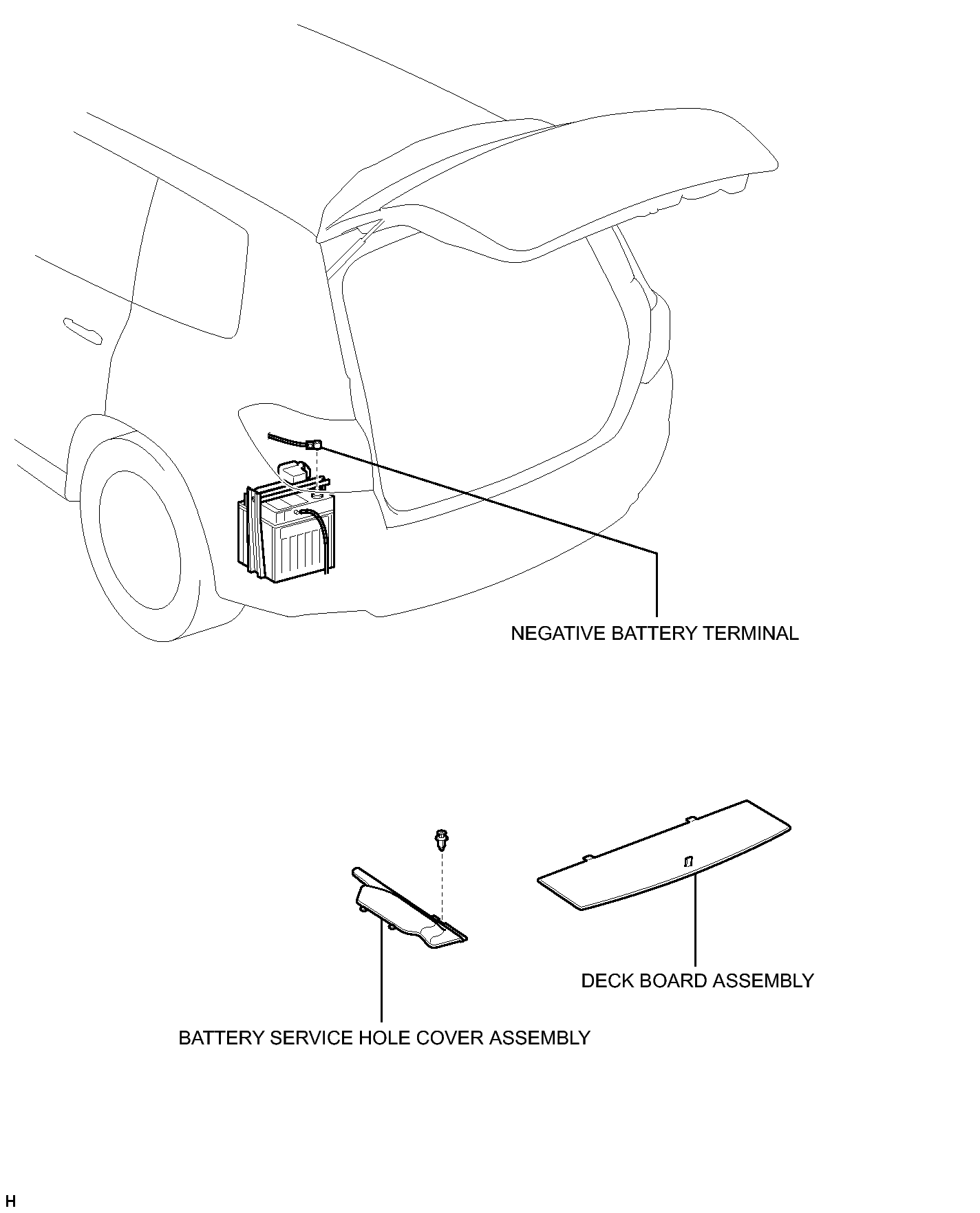

Fig 1: Identifying ECM Replacement Components (1 of 2)
GTY301962Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

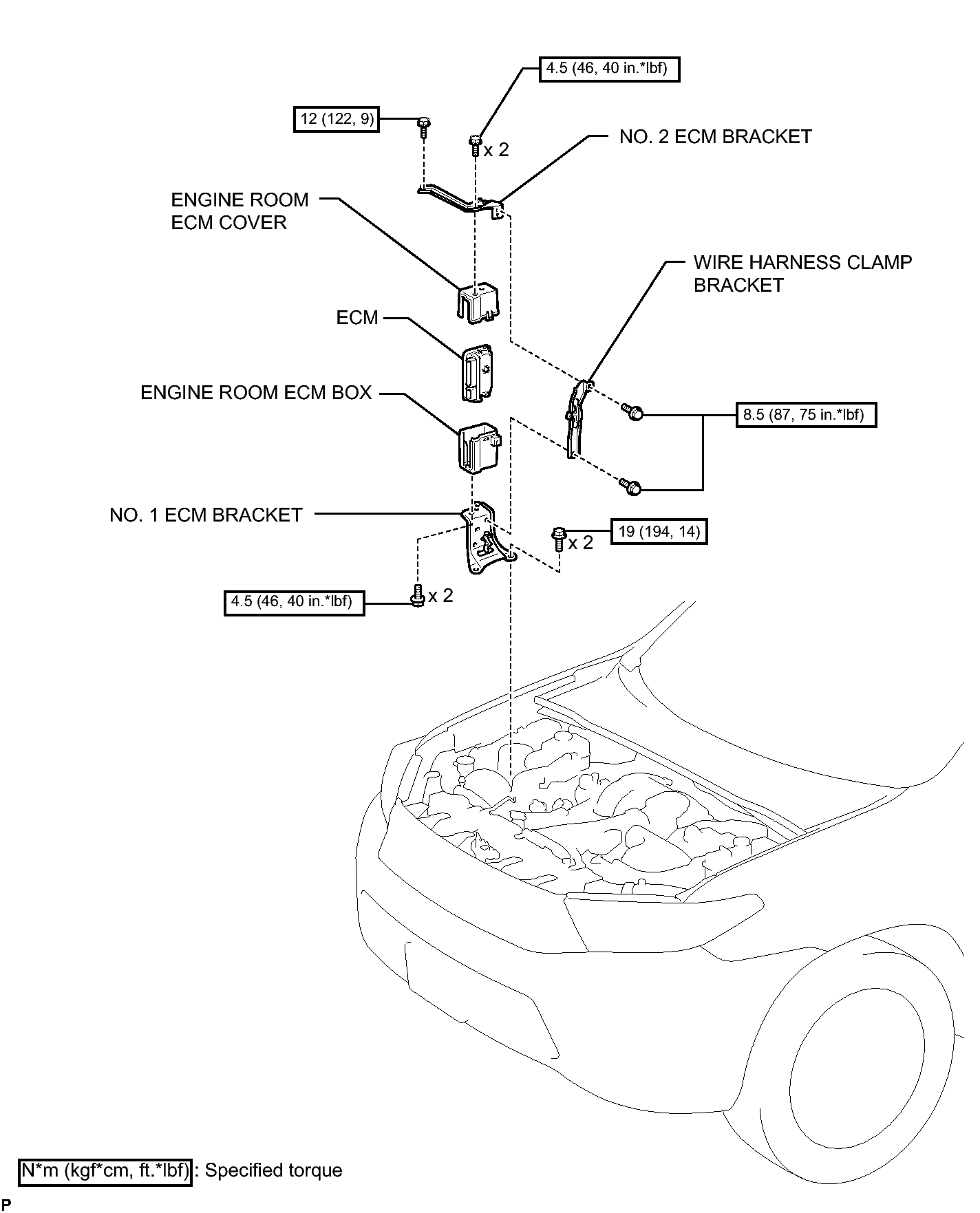

Fig 1: Identifying ECM Replacement Components With Torque Specifications (2 of 2)
GTY305123Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
