Parts Location: Illustration

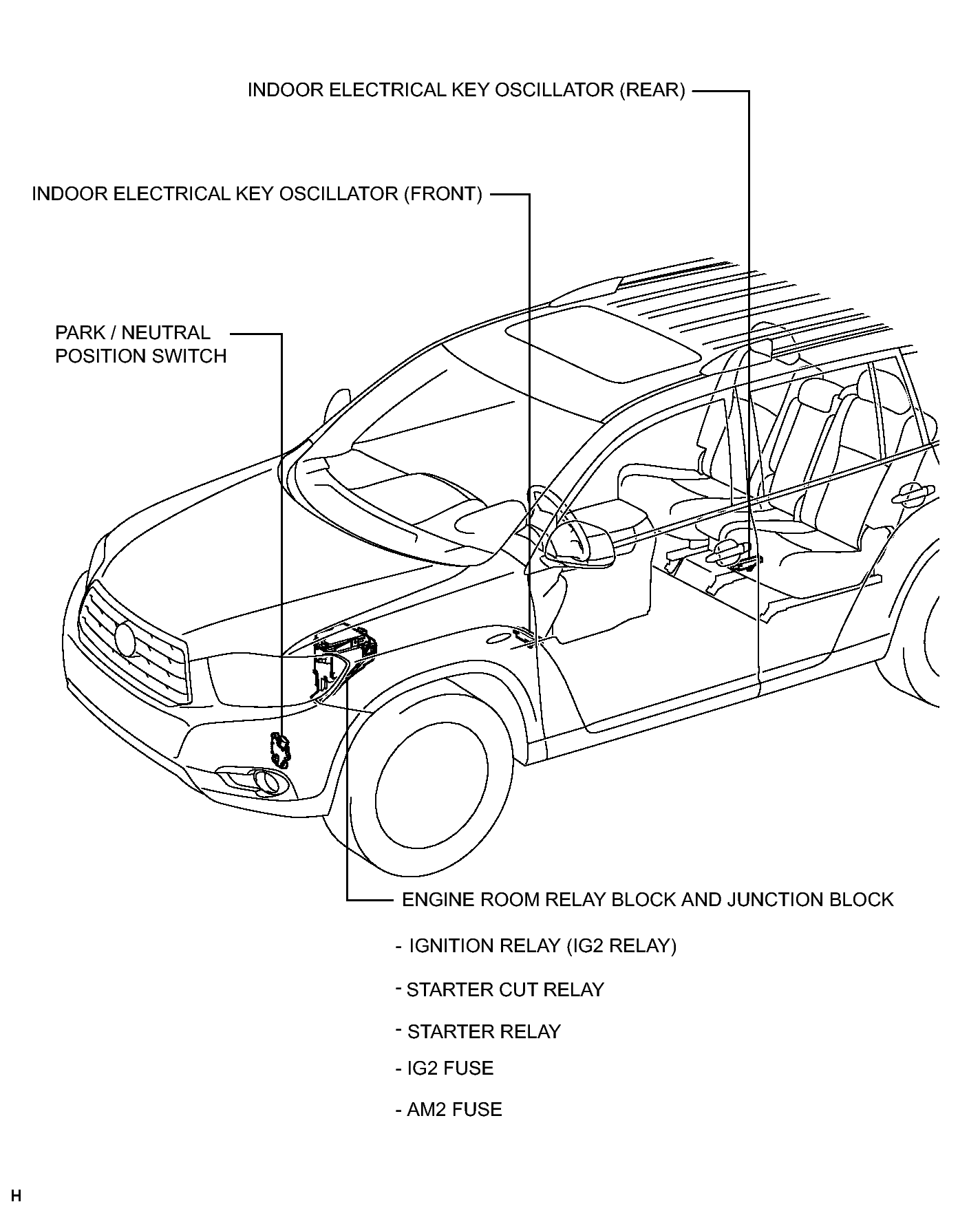

Fig 1: Smart Key System Components Location (1 Of 2)
GTY199517Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

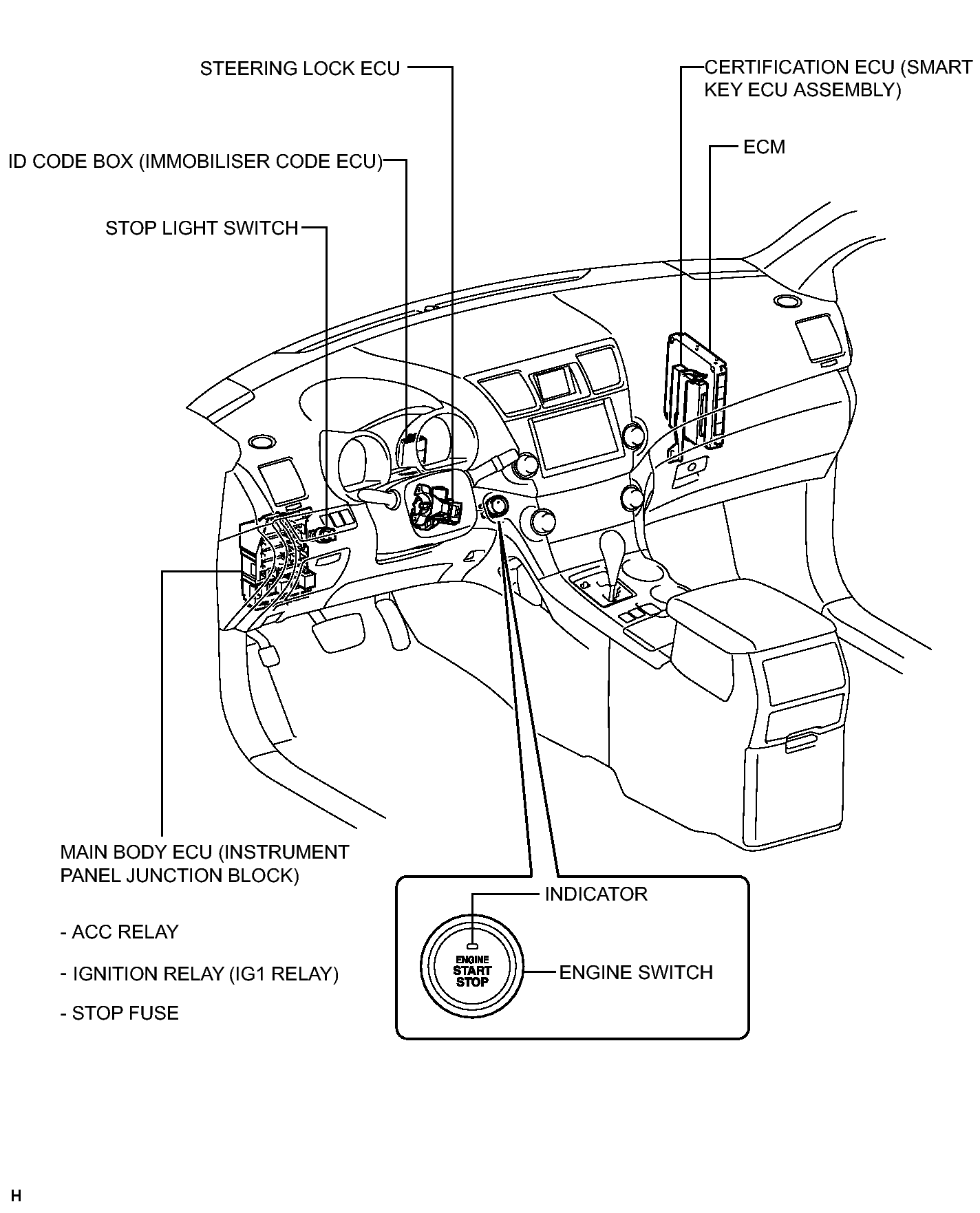

Fig 1: Smart Key System Components Location (2 Of 2)
GTY199587Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
