Ground Point: Notes — 2012 Toyota Matrix Base, Automatic Trans Service Manual ~ FixVault

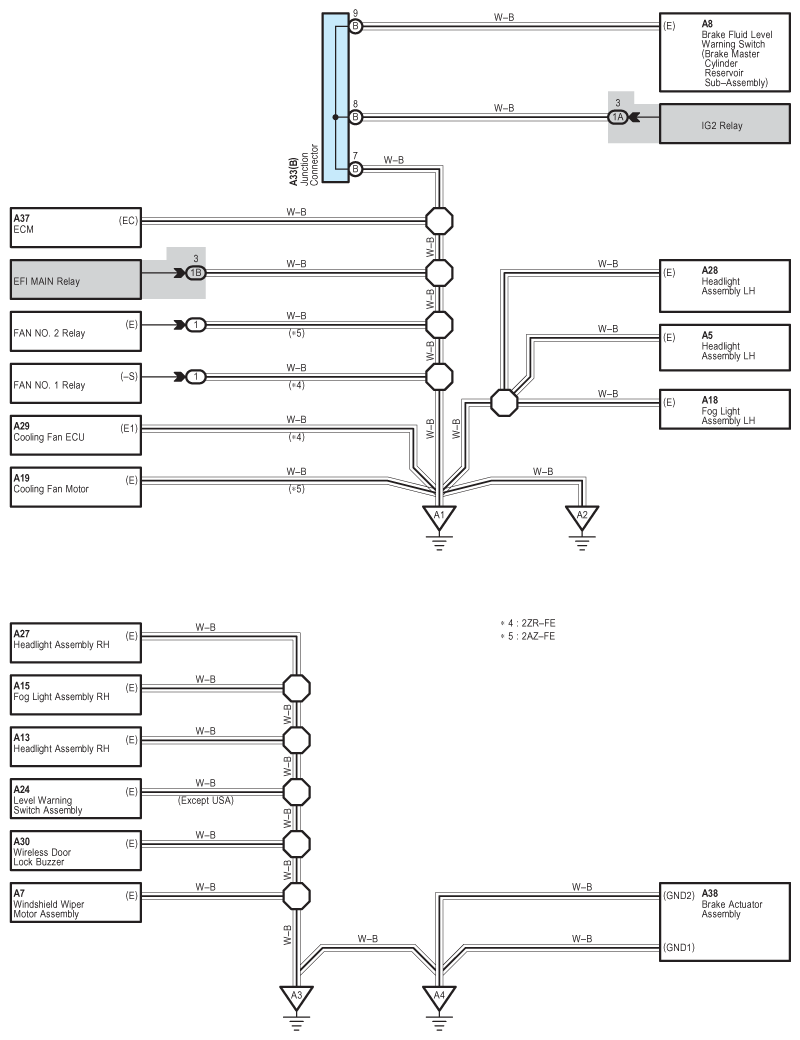

Fig 1: Ground Point Wiring Diagram (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

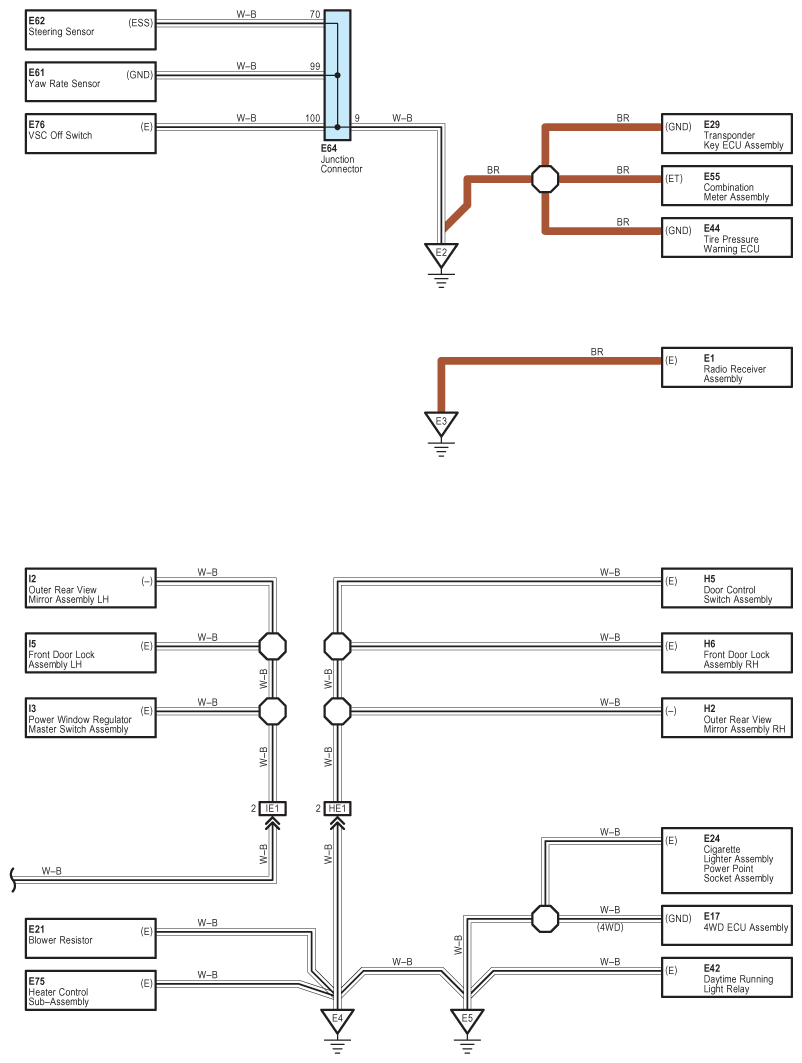

Fig 2: Ground Point Wiring Diagram (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

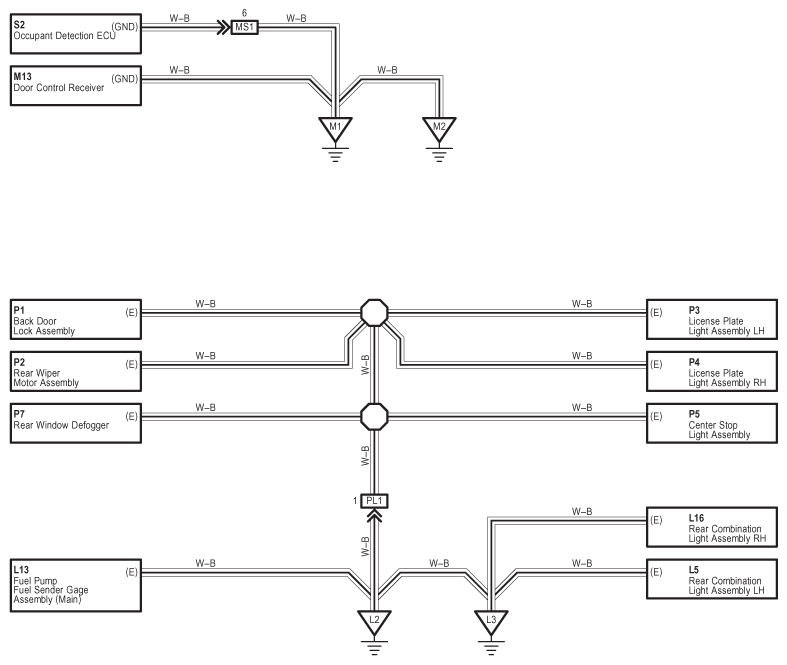

Fig 3: Ground Point Wiring Diagram (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

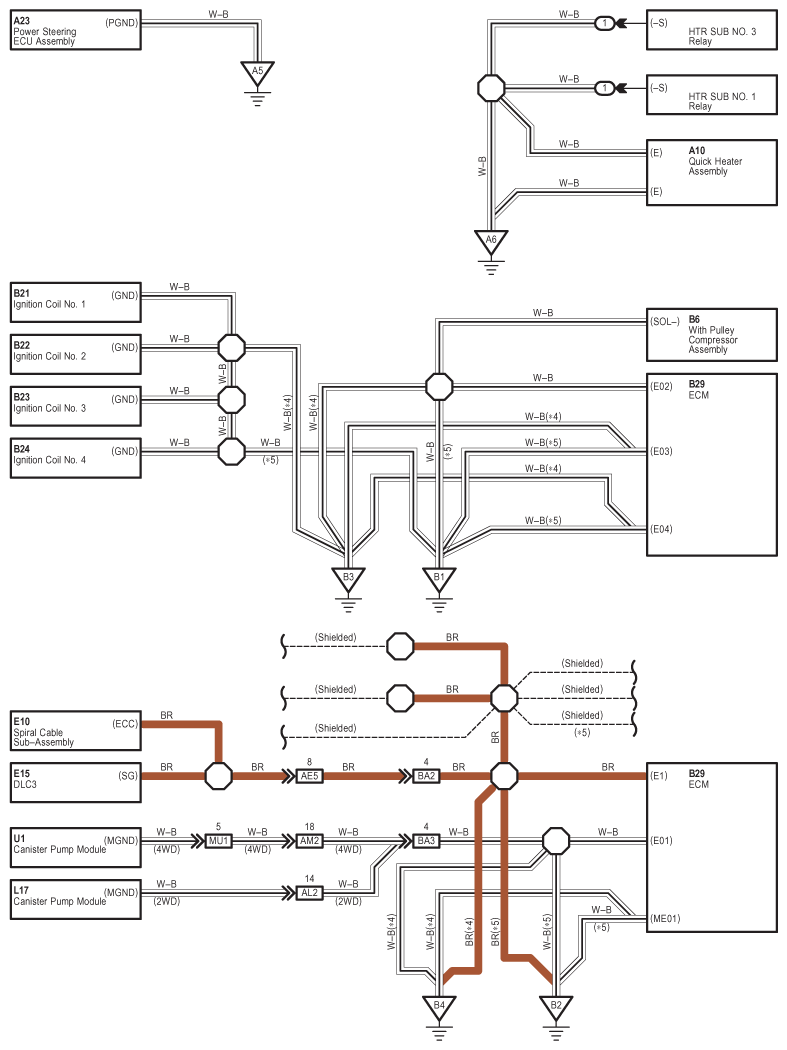

Fig 4: Ground Point Wiring Diagram (4 Of 5)

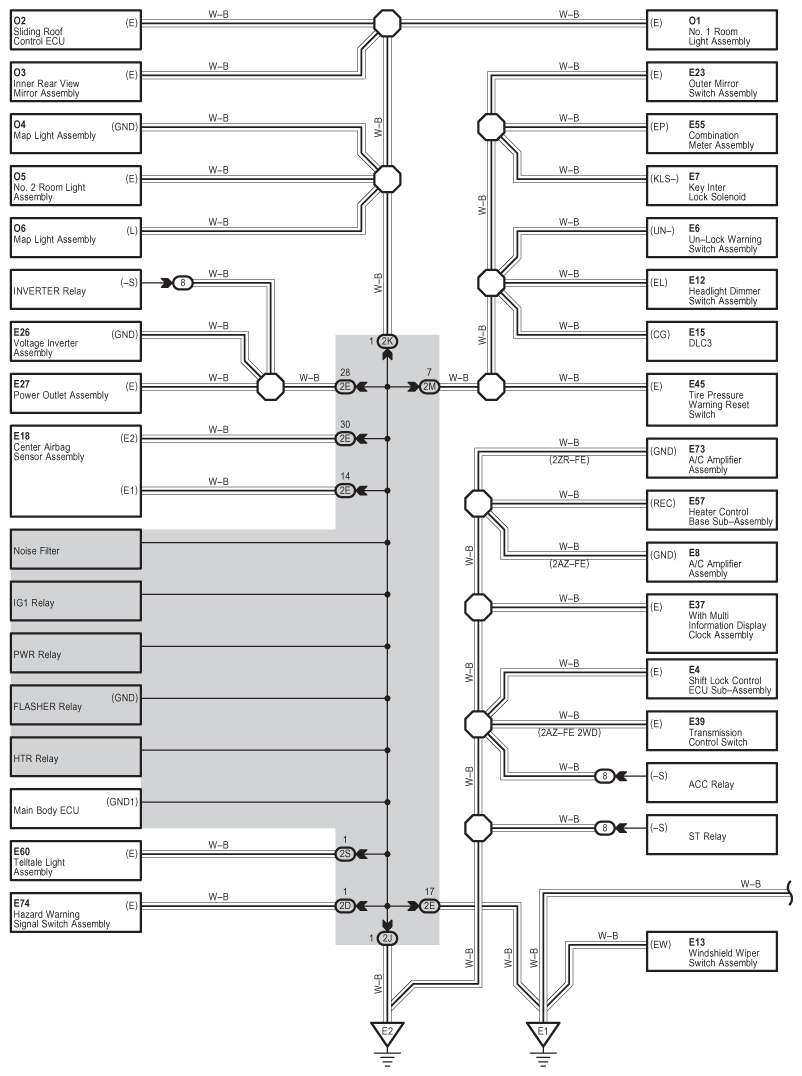

Fig 5: Ground Point Wiring Diagram (5 Of 5)
