Engine Immobilizer System
›
Notes
Engine Immobilizer System: Notes

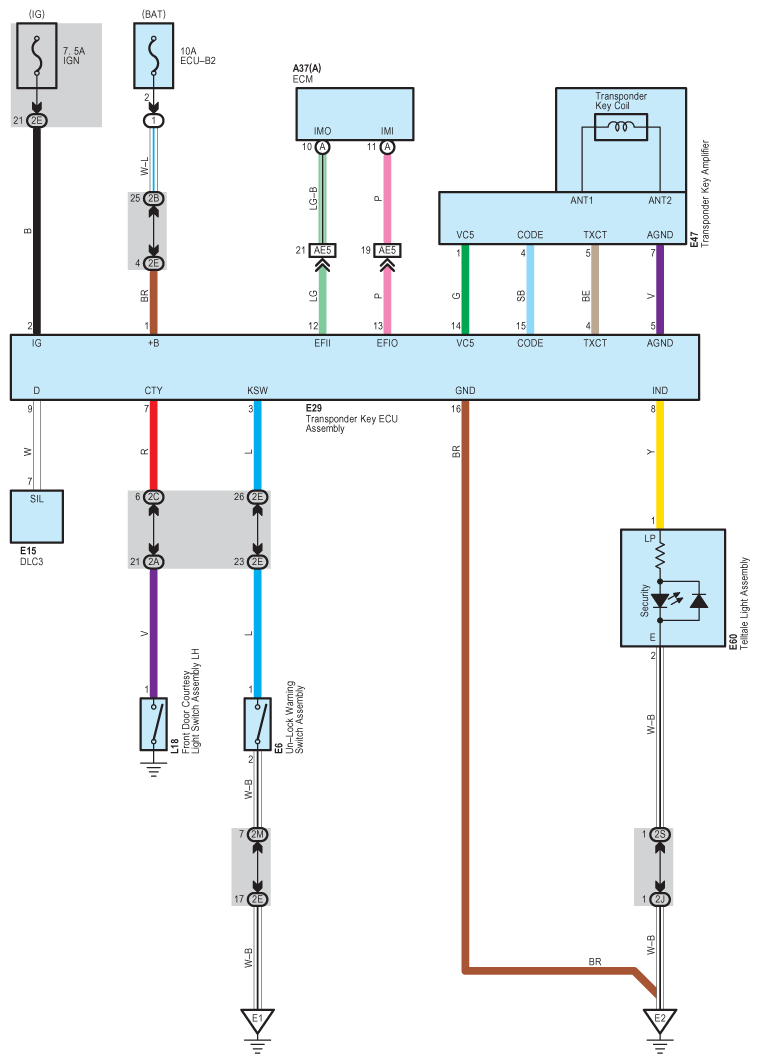

Fig 1: Engine Immobilizer System Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
