Power Window: Notes

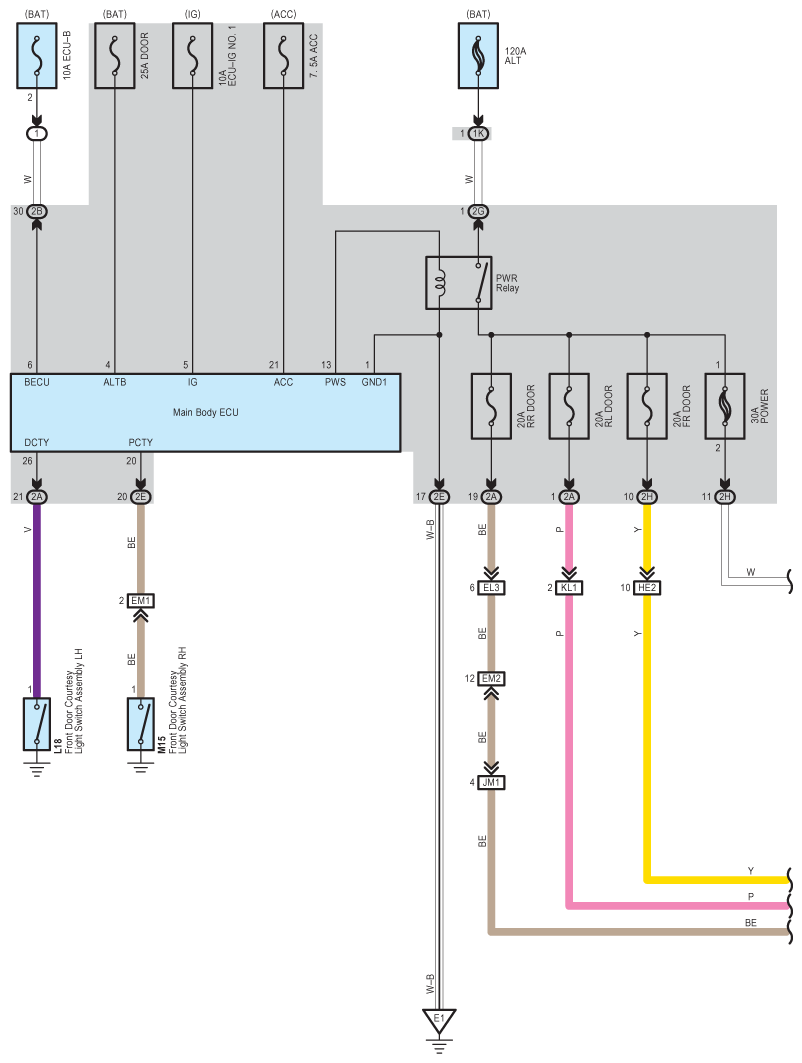

Fig 1: Power Window Wiring Diagram (1 Of 3)
G08798913Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

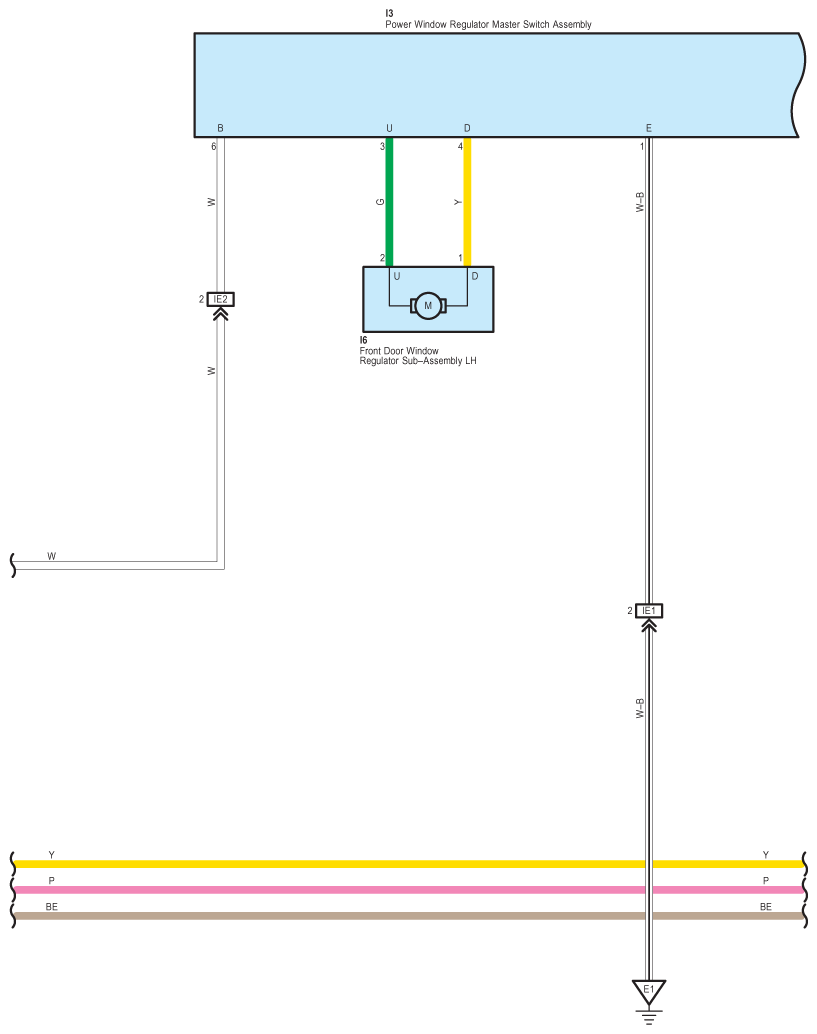

Fig 2: Power Window Wiring Diagram (2 Of 3)
G08798914Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

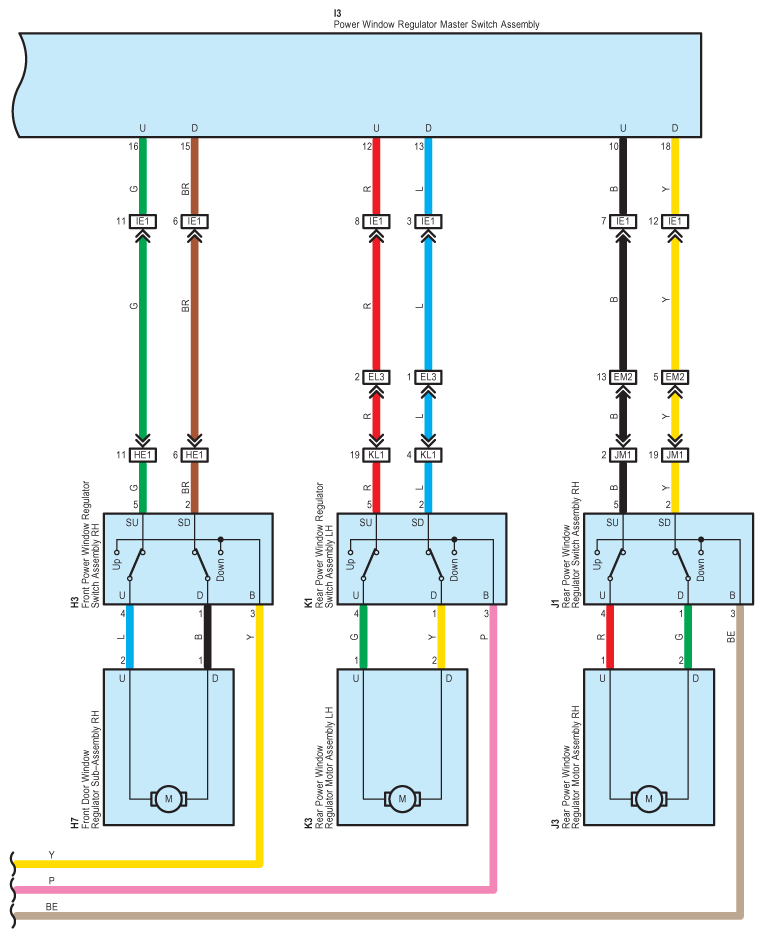

Fig 3: Power Window Wiring Diagram (3 Of 3)
G08798915Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
