Fuel System (2ZR-FE) (Service Information)
›
Fuel Tank
›
Components
›
Illustration
Fuel Tank: Components: Illustration
Fig 1: Identifying Fuel Tank Replacement Components With Torque Specifications (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

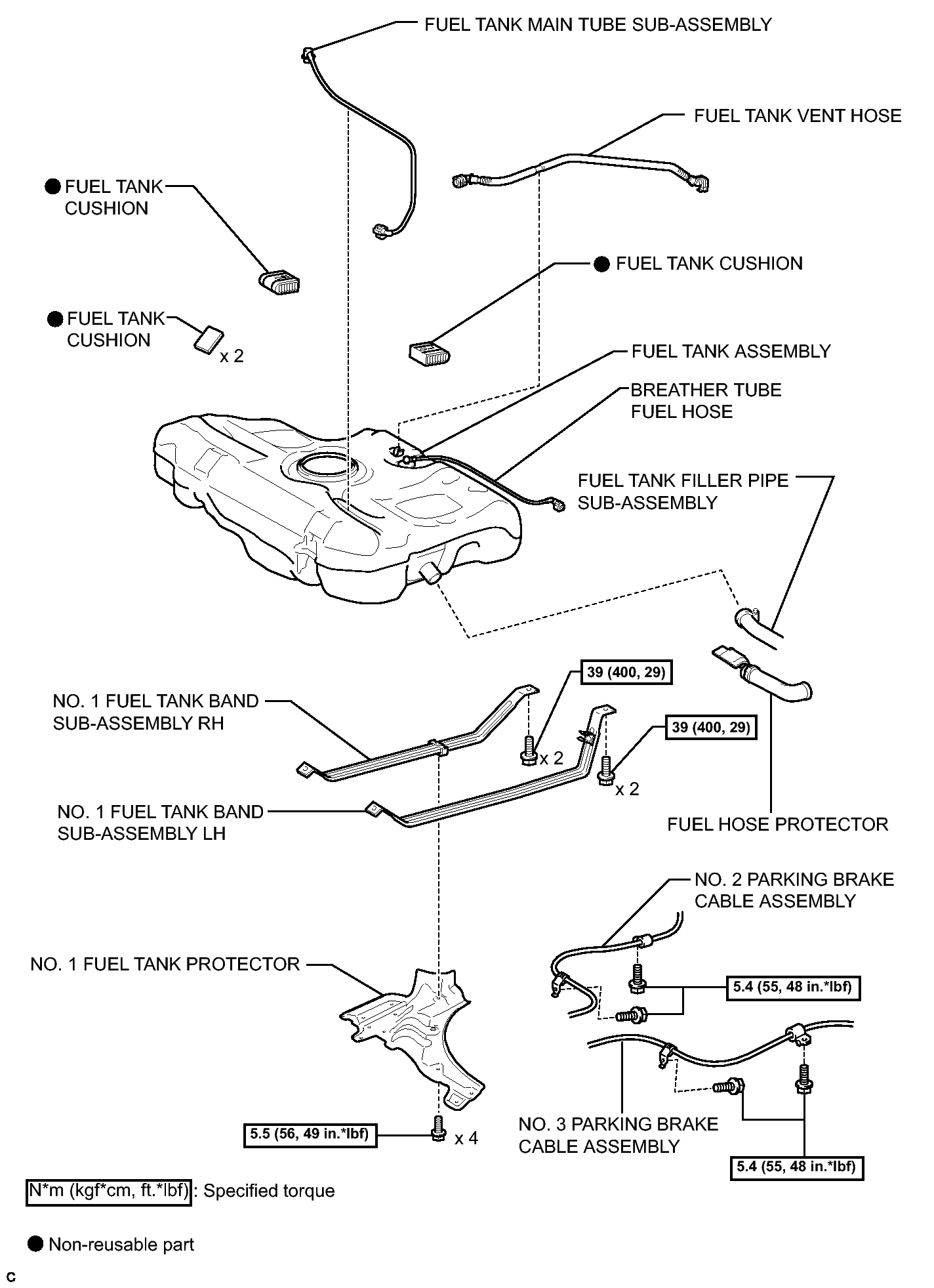

Fig 1: Identifying Fuel Tank Replacement Components With Torque Specifications (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
