Section 342 (Door Lock System (Service Information))
›
Door Control Switch
›
Components
›
Illustration
Door Control Switch: Components: Illustration
WARNING:
This page is about a different car, the 2012 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

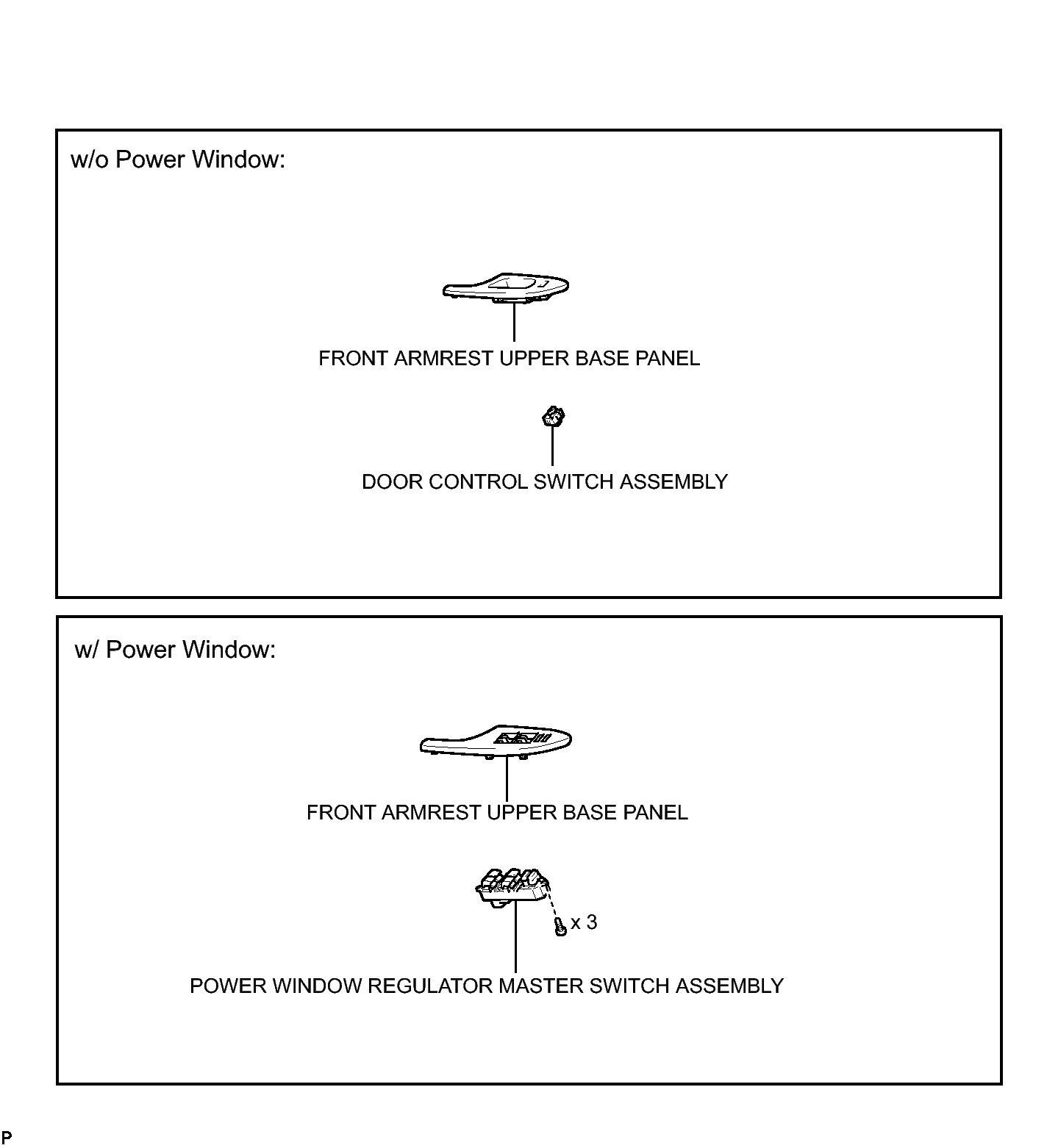

Fig 1: Identifying Door Control Switch Replacement Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
