Turn Signal Flasher Assembly: Installation: Installation

WARNING: This page is about a different car, the 2011 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL TURN SIGNAL FLASHER ASSEMBLY
    1. Install the turn signal flasher assembly to the junction block.

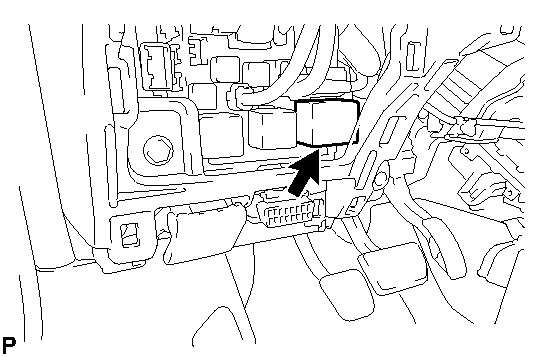

      Fig 1: Locating Turn Signal Flasher Assembly
      GTY207419Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL ASSEMBLY  . Refer to INSTALLATION - Step 4
