Accelerator Pedal: Installation: Installation

WARNING: This page is about a different car, the 2011 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL ACCELERATOR PEDAL ASSEMBLY
1. Install the accelerator pedal assembly with the 2 bolts.

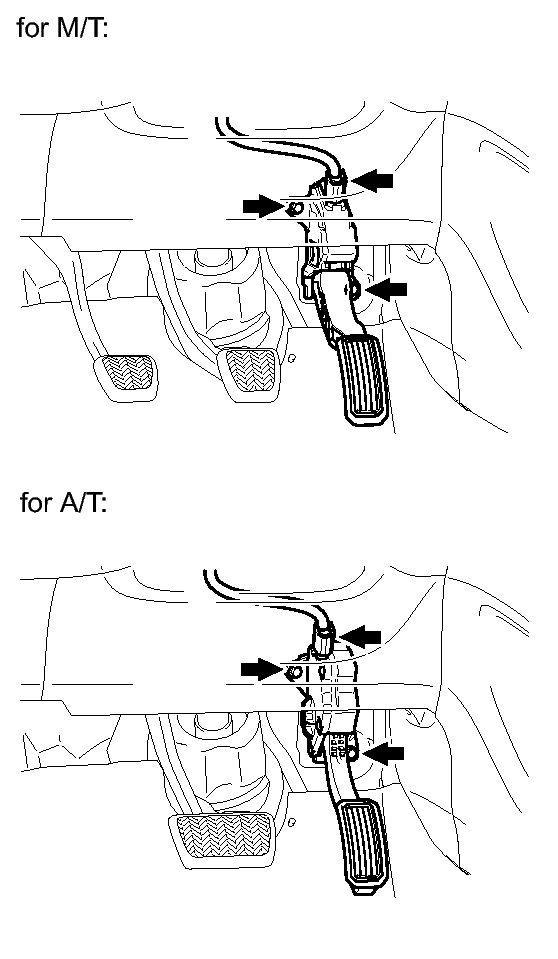

  Fig 1: Locating Accelerator Pedal Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 5.5 N*m (56 kgf*cm, 49 in.*lbf)
2. Install the accelerator pedal assembly connector.
