On-Vehicle Inspection

WARNING: This page is about a different car, the 2011 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSPECT INTAKE SYSTEM
    1. Check that there is no air suction at the points shown in the illustration.

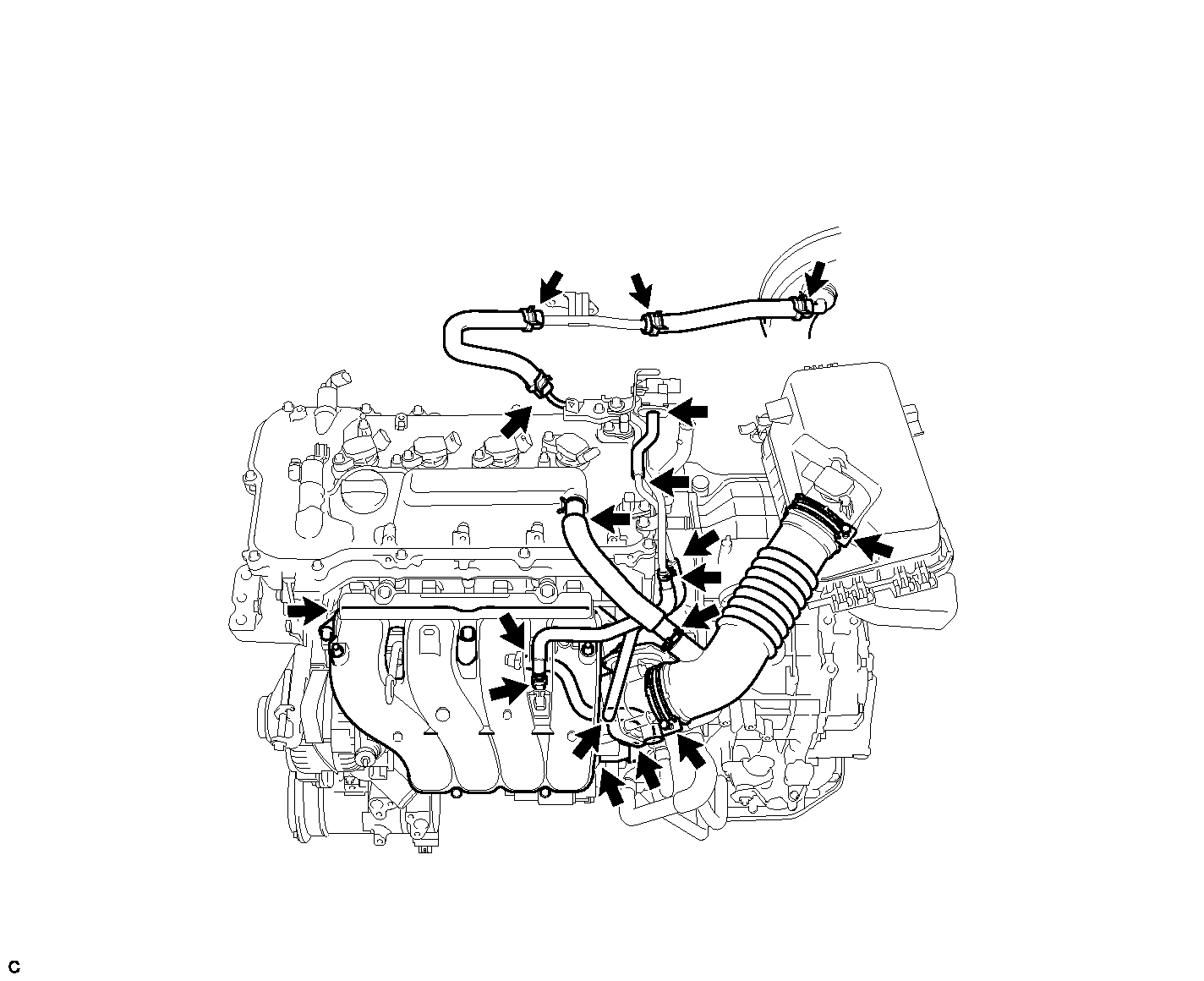

      Fig 1: Identifying Intake System Components
      GTY291502Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
