Solar Sensor: Components: Illustration

WARNING: This page is about a different car, the 2011 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

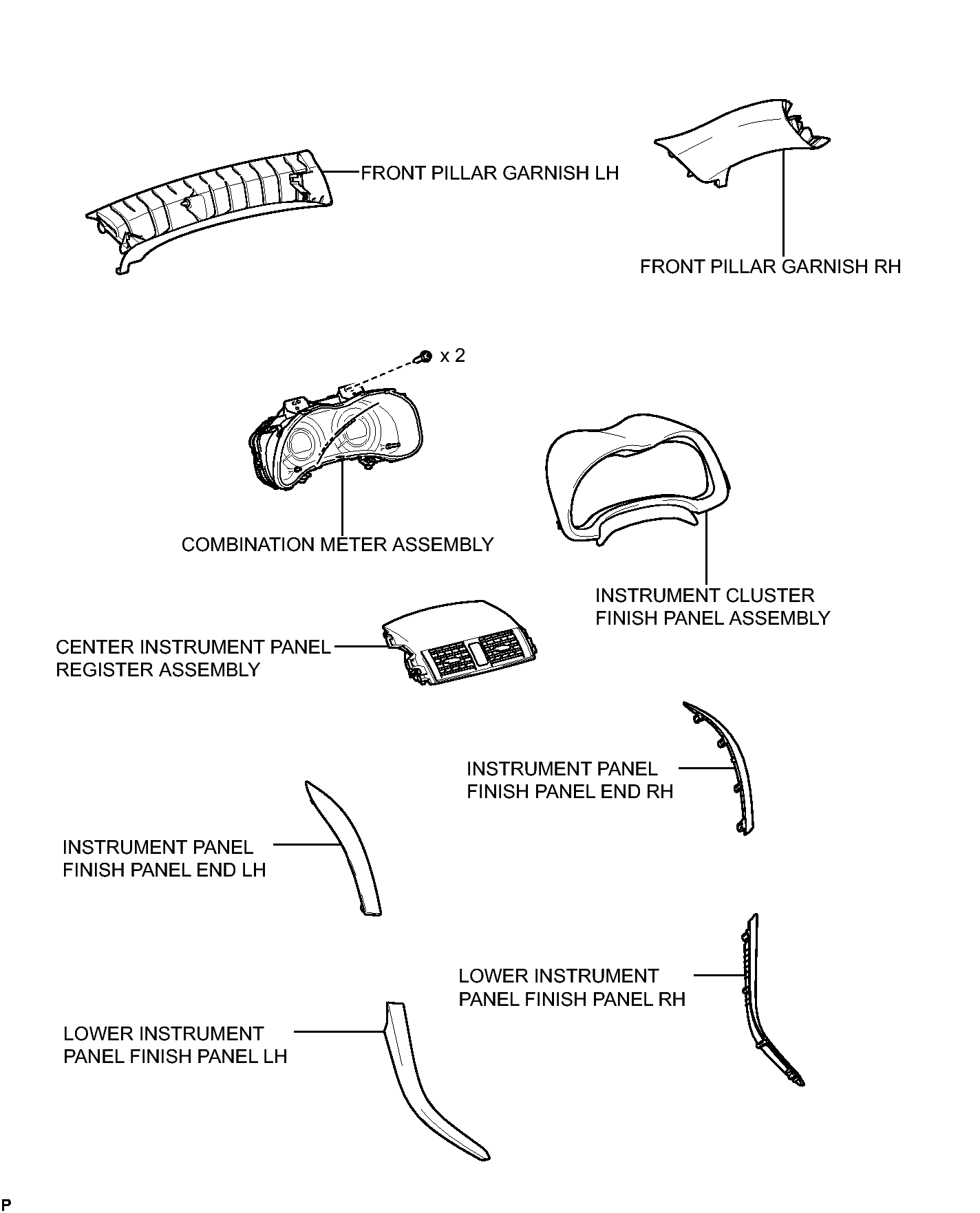

Fig 1: Identifying Solar Sensor Replacement Components (1 Of 2)

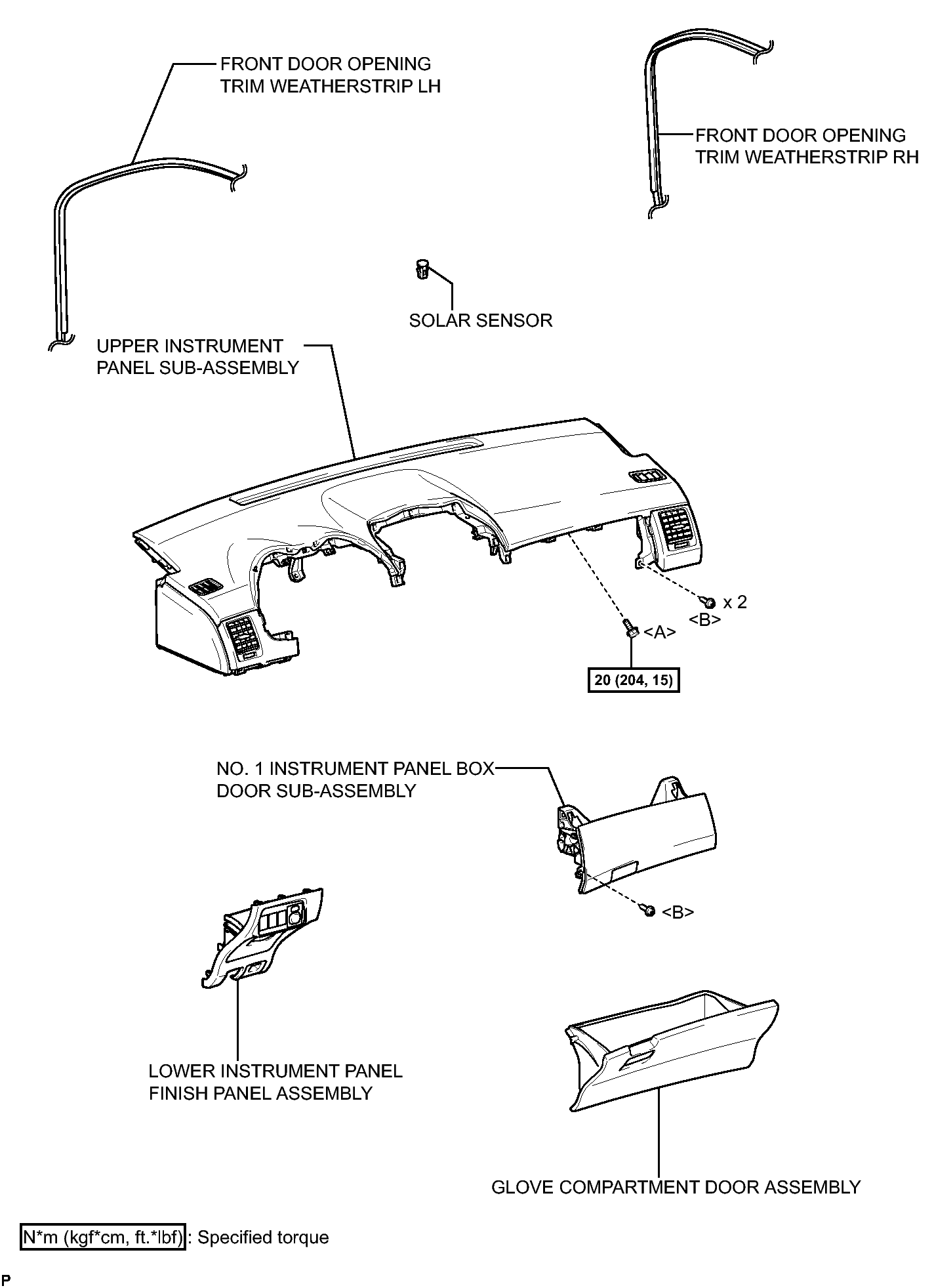

Fig 1: Identifying Solar Sensor Replacement Components With Torque Specifications (2 Of 2)
