Navigation Receiver: Components: Illustration
WARNING:
This page is about a different car, the 2011 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

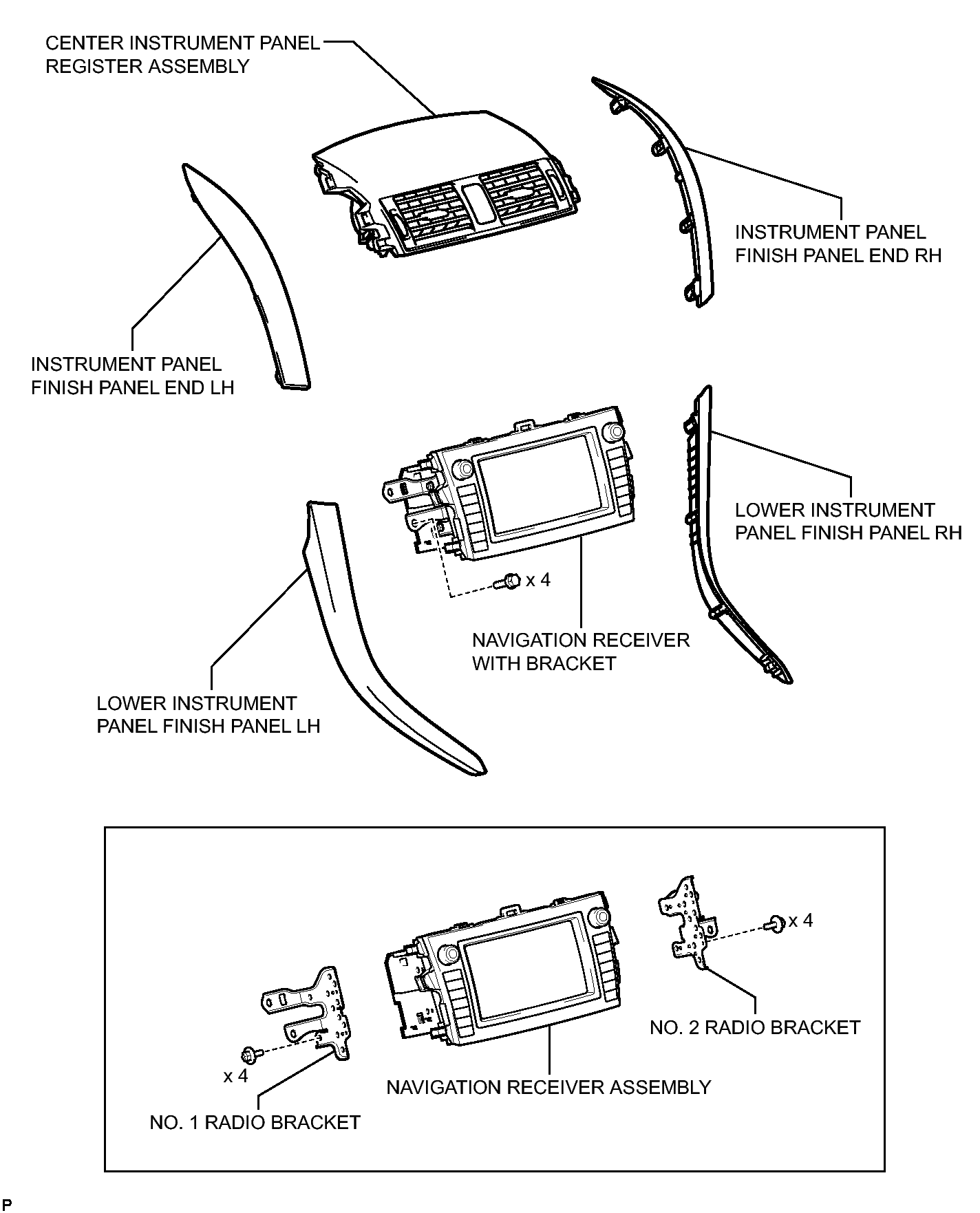

Fig 1: Identifying Navigation Receiver Replacement Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
