Speed Sensor: Components: Illustration

WARNING: This page is about a different variant/trim than selected.

Fig 1: Automatic Transaxle Assembly Replacement Components With Torque Specifications (3 Of 8)

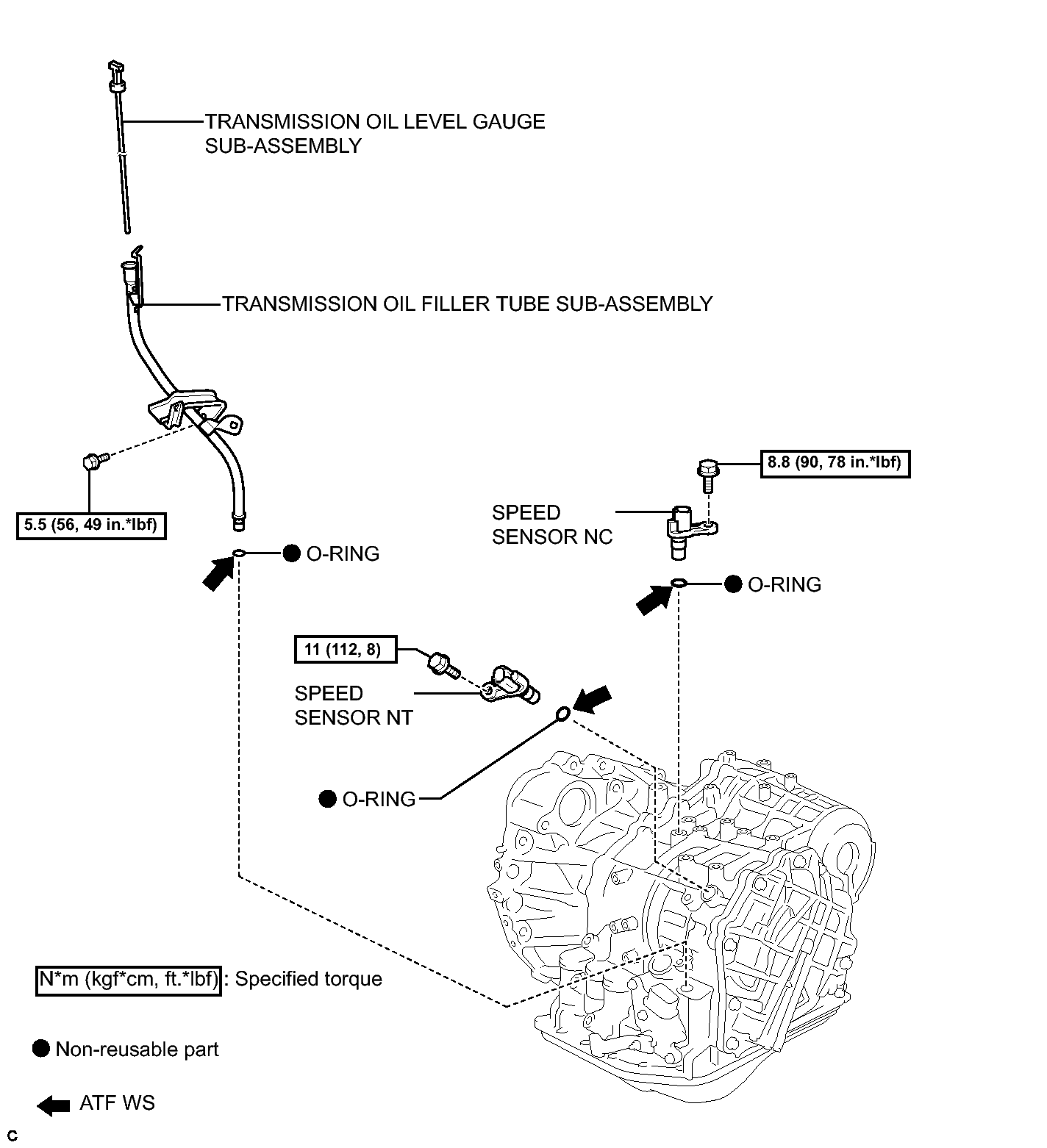

Fig 1: Identifying Speed Sensor Replacement Components With Torque Specifications (2 Of 2)
