Front Seat Side Airbag Assembly: Components: Illustration

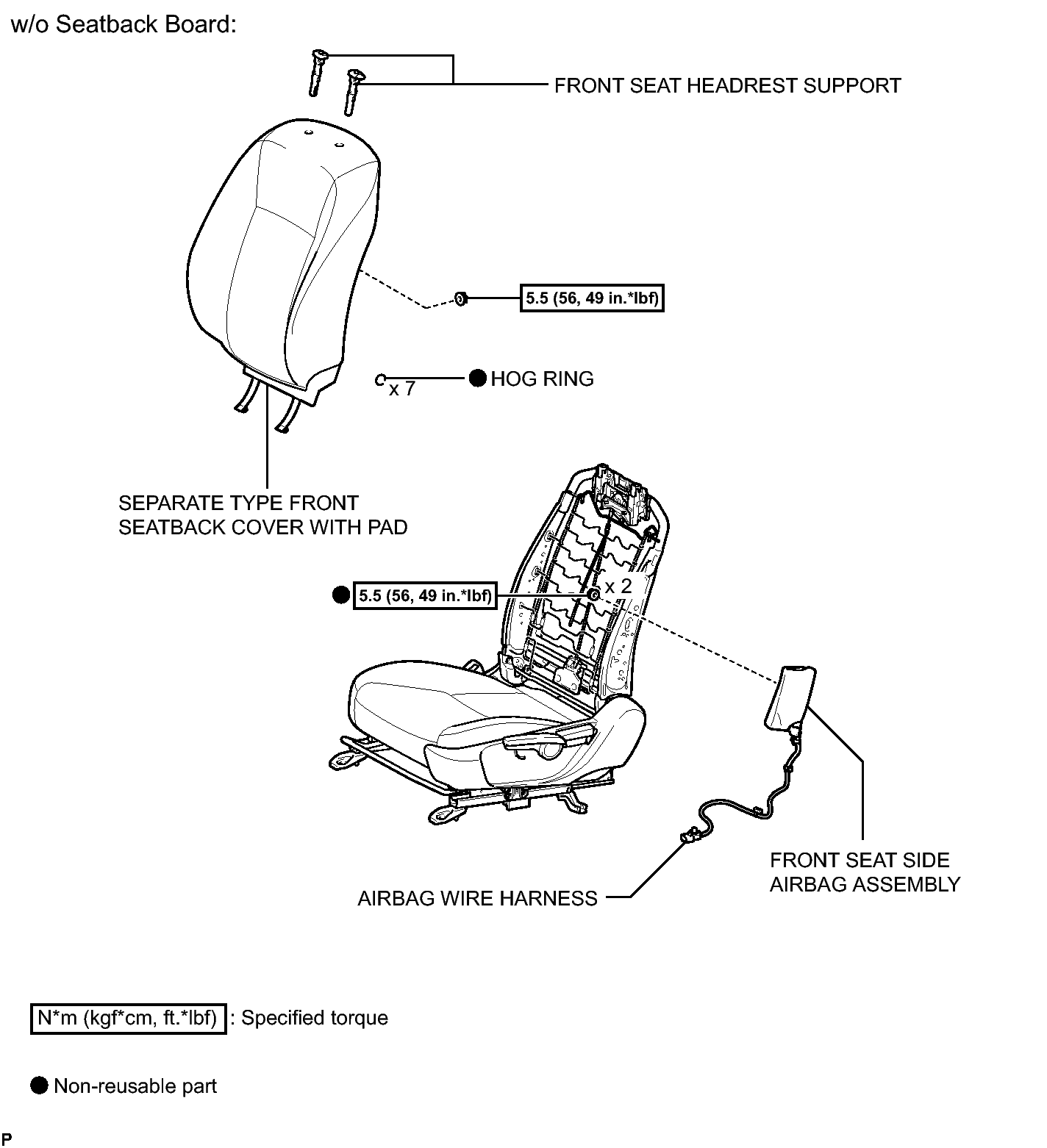

Fig 1: Identifying Front Seat Side Airbag Assembly Replacement Components With Torque Specifications (1 Of 2)
GTY294070Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

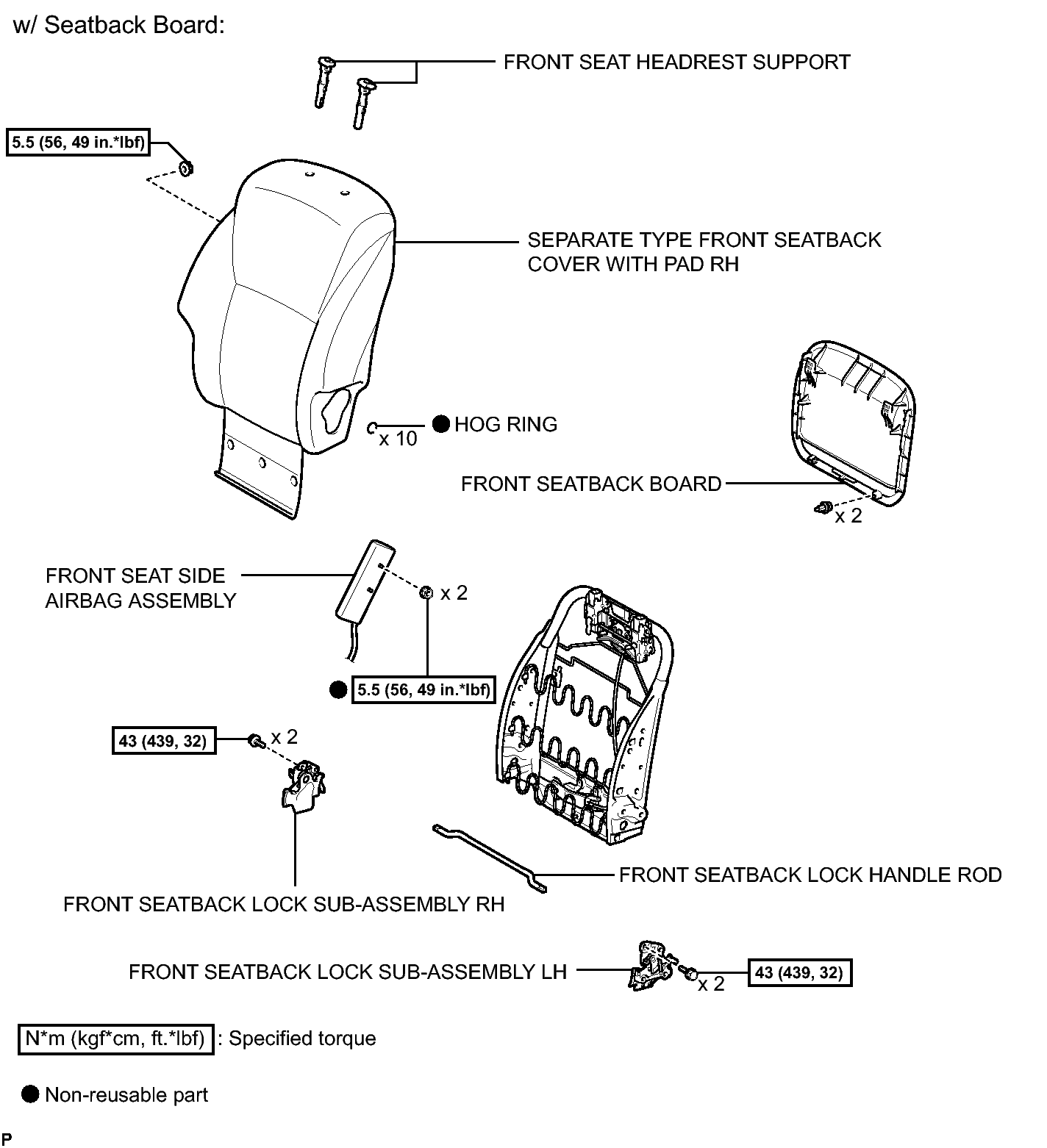

Fig 1: Identifying Front Seat Side Airbag Assembly Replacement Components With Torque Specifications (2 Of 2)
GTY291781Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
