Side Airbag Sensor: Components: Illustration

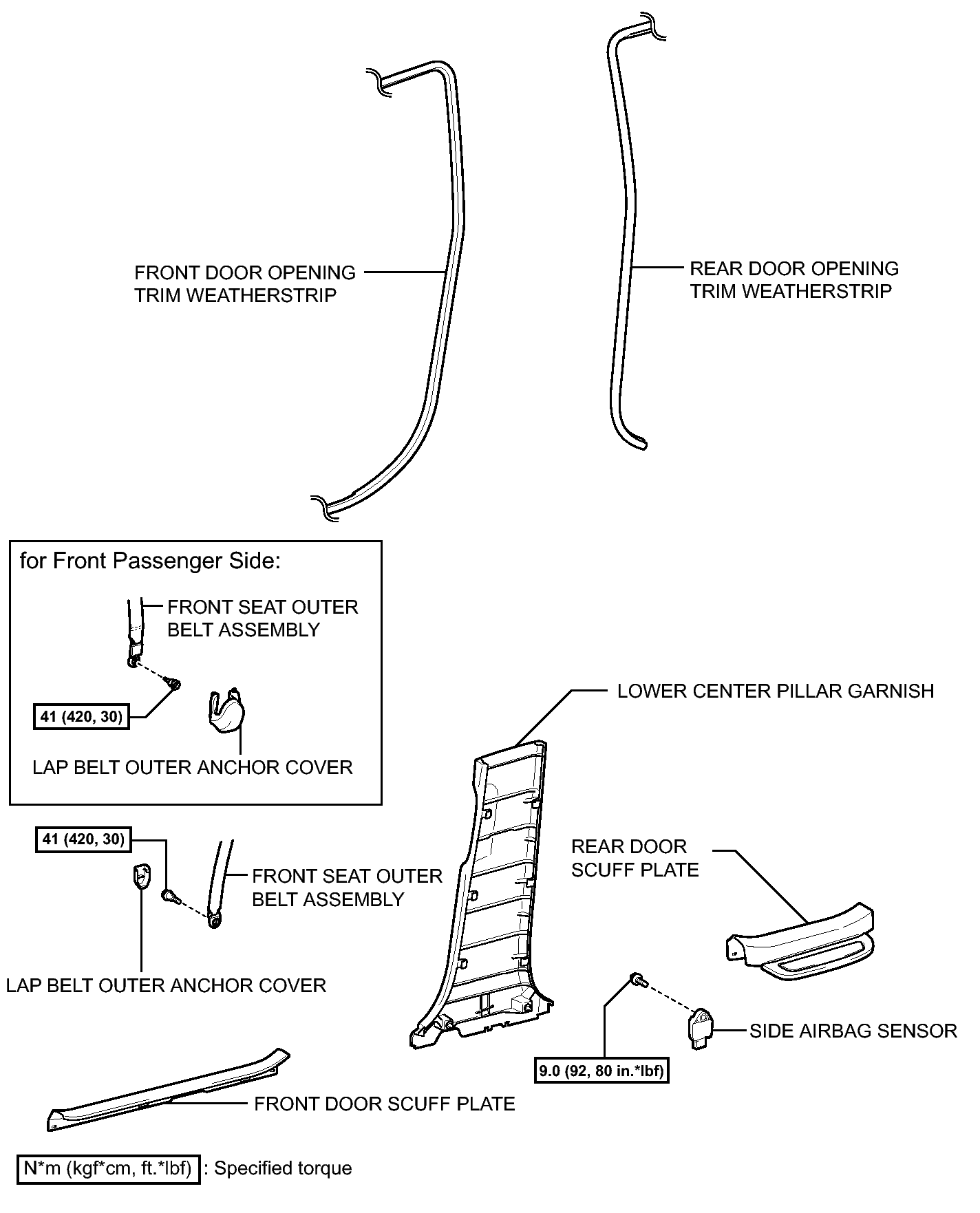

Fig 1: Identifying Side Airbag Sensor Replacement Components With Torque Specifications
GTY217319Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
