Steering Pad: Installation: Installation

INSTALL STEERING PAD
1. Check that the ignition switch is off.
2. Check that the cable is disconnected from the negative (-) battery terminal.
  WARNING:
  Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.
3. Connect the 2 airbag connectors to the steering pad.

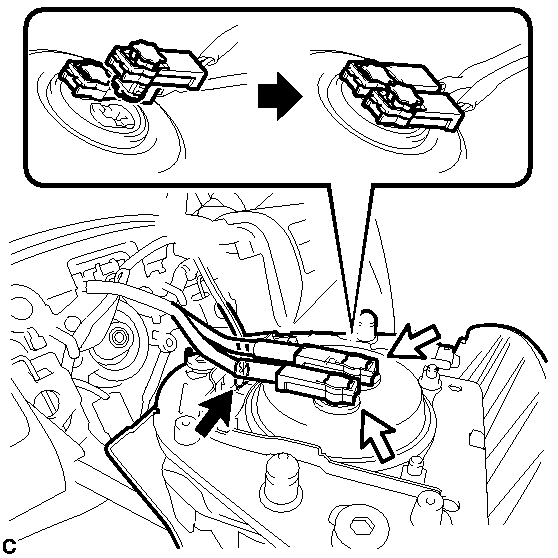

  Fig 1: Connecting 2 Airbag Connectors To Steering Pad
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  NOTE:
  - When connecting any airbag connector, take care not to damage the airbag wire harness.
  - Be sure to only connect the connectors to each corresponding color.
4. Push in the 2 locks to install the airbag connectors.
5. Connect the horn connector to the steering pad.
6. Push the steering pad to engage the 2 pins.

  Fig 2: Identifying Steering Pad Pins
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NOTE:
  Make sure that the pins are securely inserted into the steering wheel holes.
INSTALL LOWER NO. 3 STEERING WHEEL COVER
1. Install the lower No. 3 steering wheel cover with the 2 claws.
INSTALL LOWER NO. 2 STEERING WHEEL COVER
1. Install the lower No. 2 steering wheel cover with the 2 claws.
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
INSPECT STEERING PAD
1. Make sure that the horn sounds.
  HINT:

  If the horn does not sound, inspect the horn system. Refer to PROBLEM SYMPTOMS TABLE .
INSPECT SRS WARNING LIGHT
1. Inspect the SRS warning light. Refer to DIAGNOSIS SYSTEM .
