Toyota
›
2012
›
Matrix Base, Standard Trans
›
Repair and Diagnosis
›
Electrical
›
Body Electrical
›
OEM System Circuits
›
Data Link Connector 3
›
Notes
Data Link Connector 3: Notes

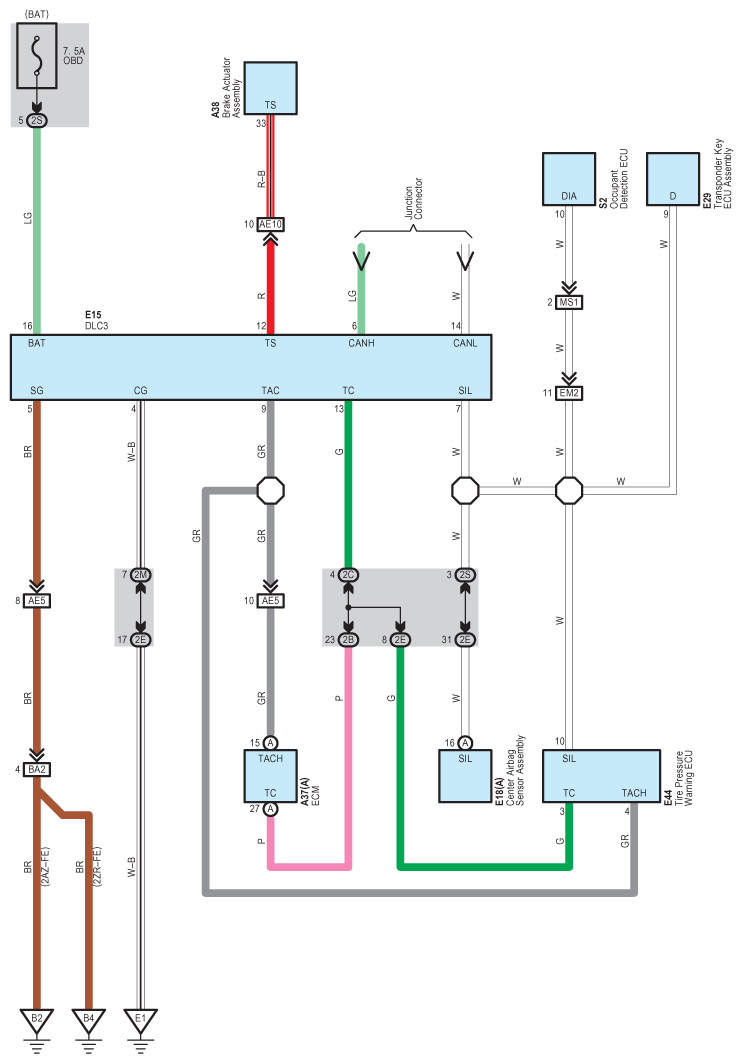

Fig 1: Data Link Connector 3 Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
