Cruise Control Main Switch: Components: Illustration

WARNING: This page is about a different car, the 2012 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

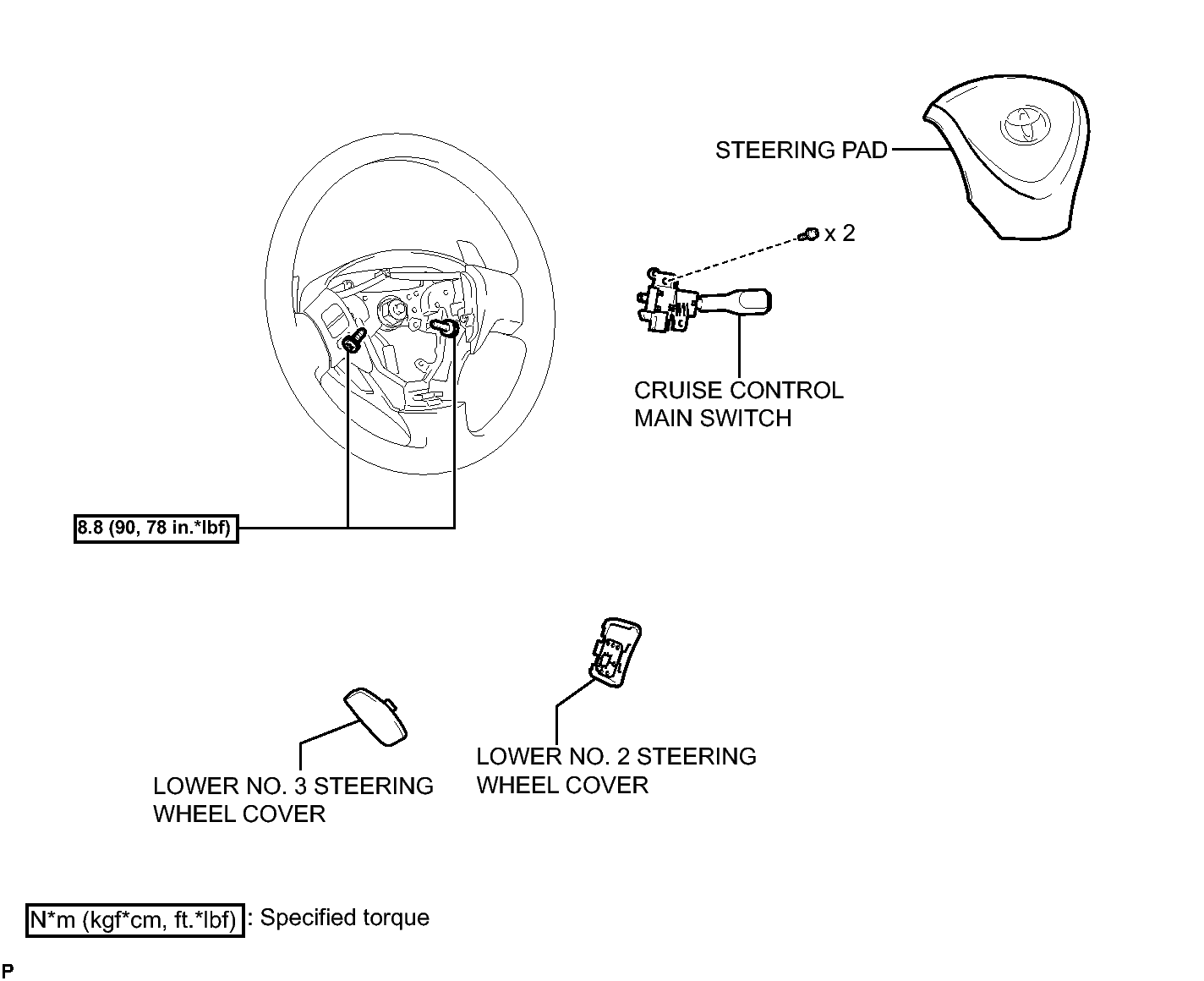

Fig 1: Identifying Cruise Control Main Switch Replacement Components With Torque Specifications
GTY208597Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
