System Diagram

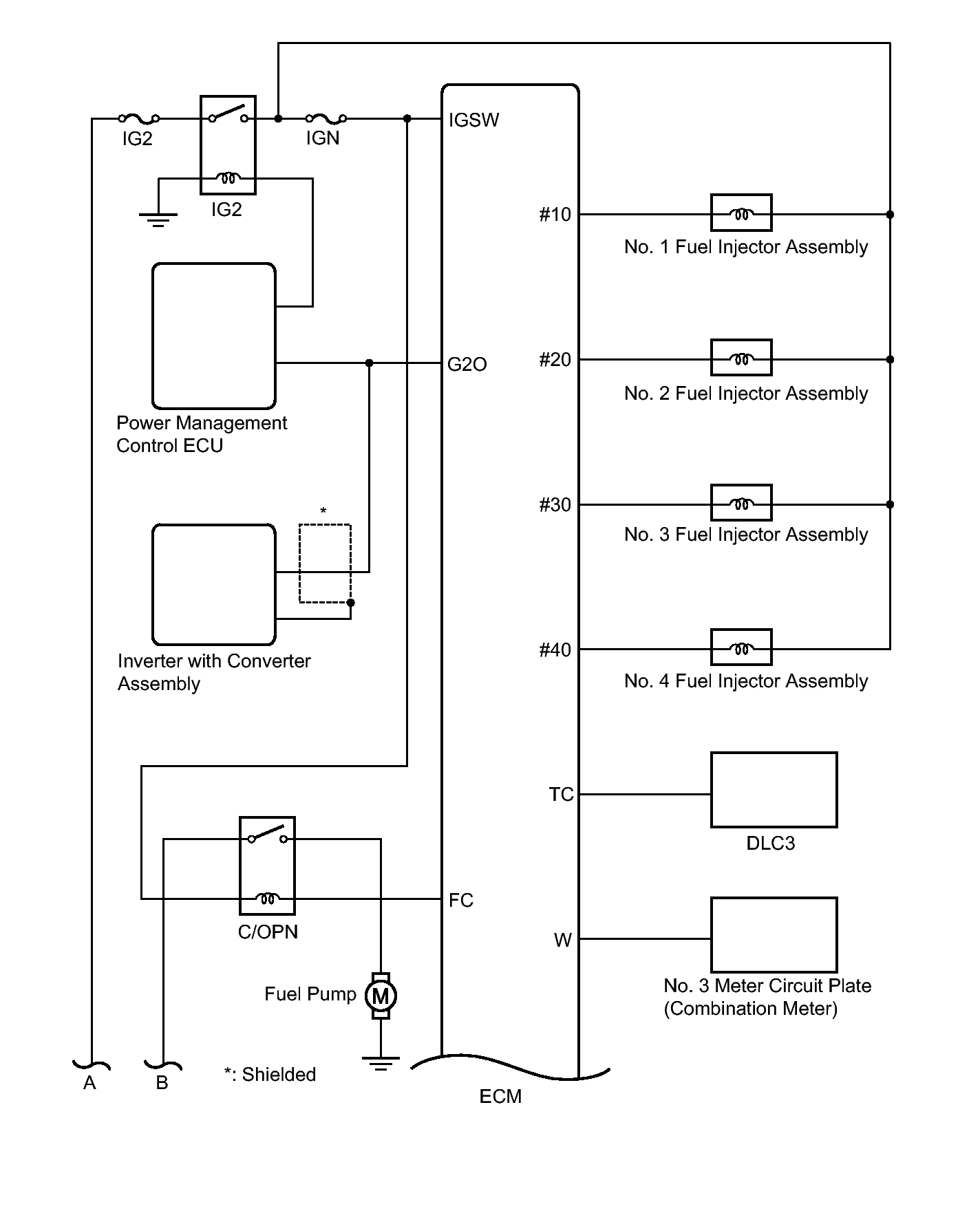

Fig 1: SFI System Diagram (1 Of 4)
GTY216225Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

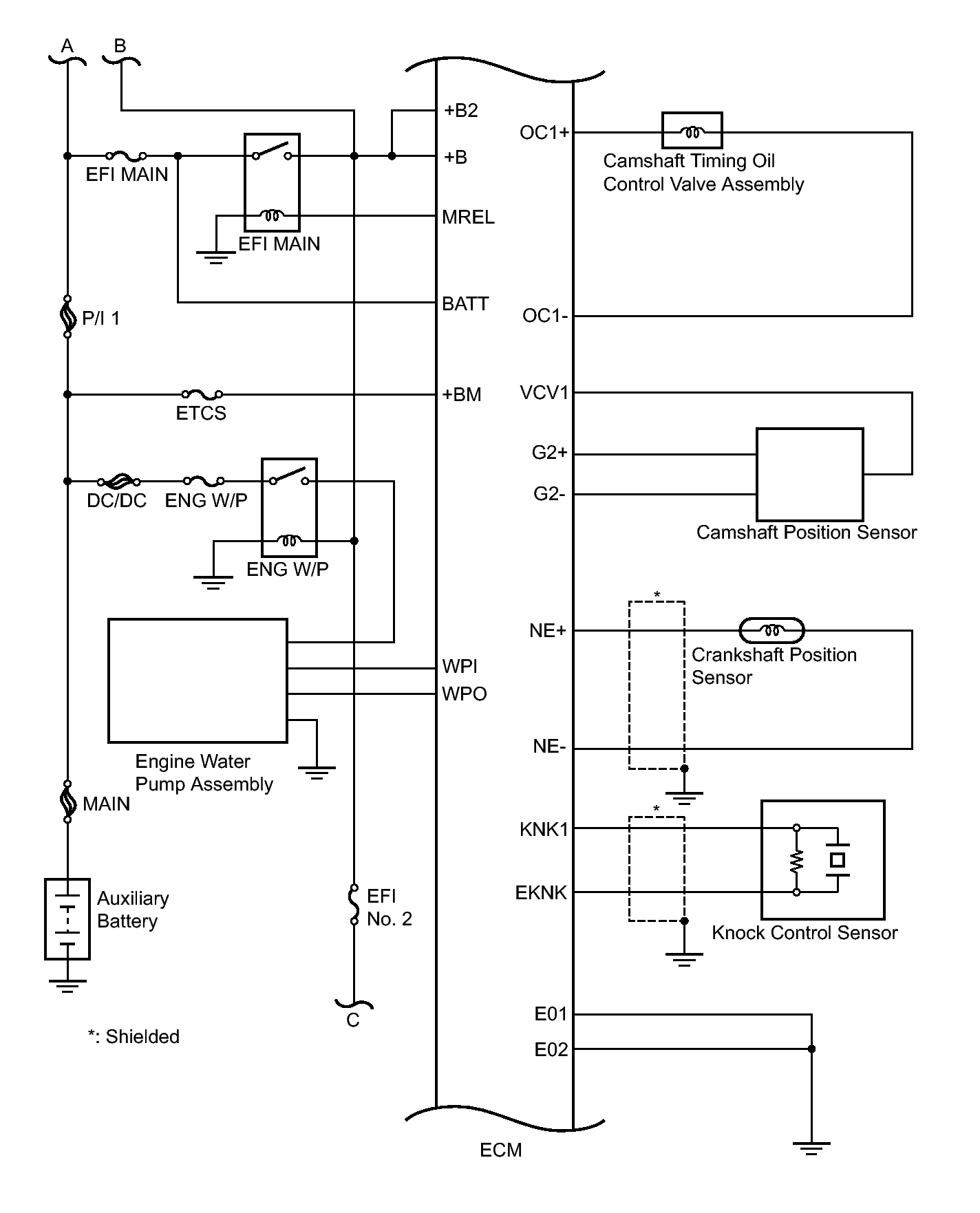

Fig 2: SFI System Diagram (2 Of 4)
GTY342760Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

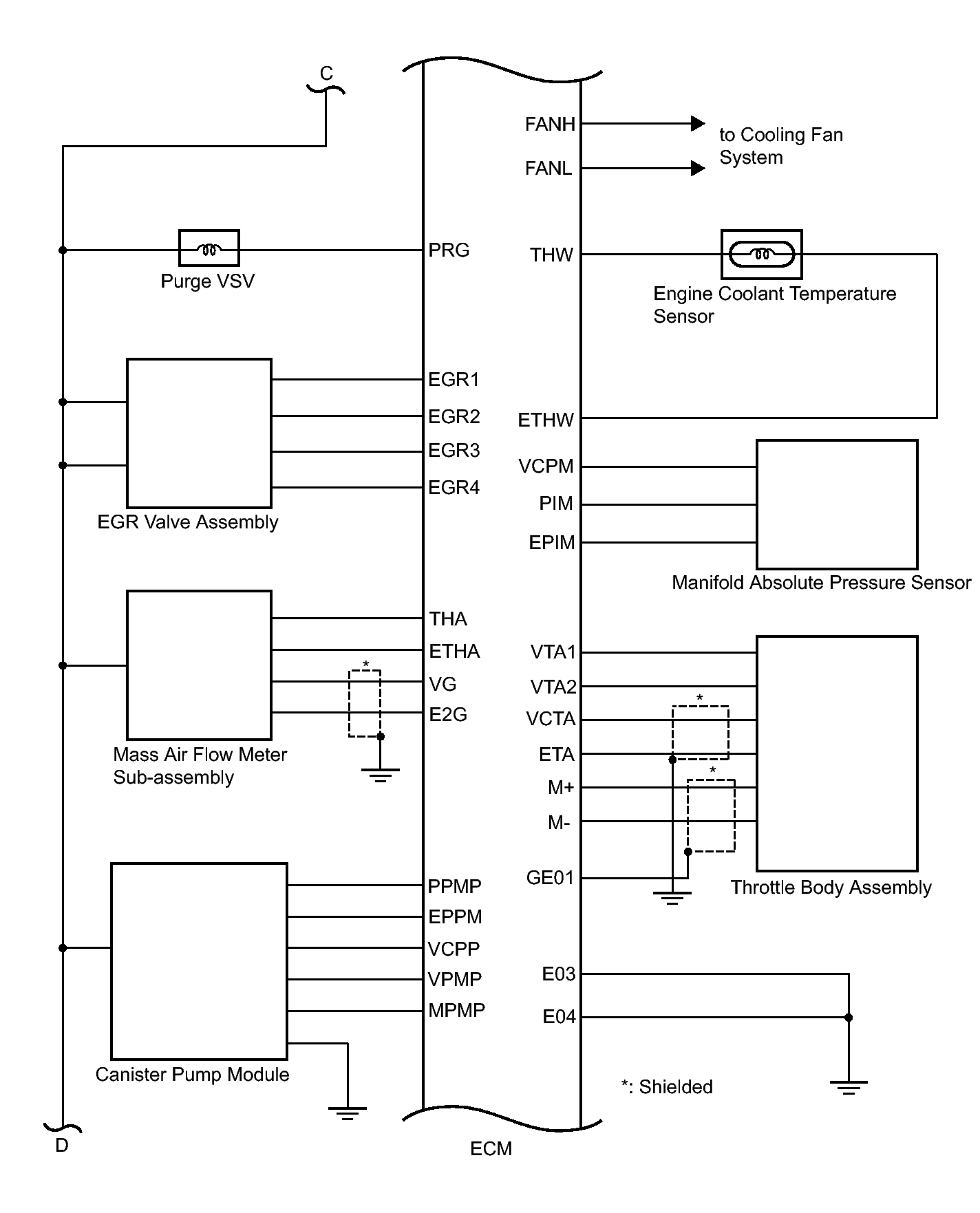

Fig 3: SFI System Diagram (3 Of 4)
GTY338068Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

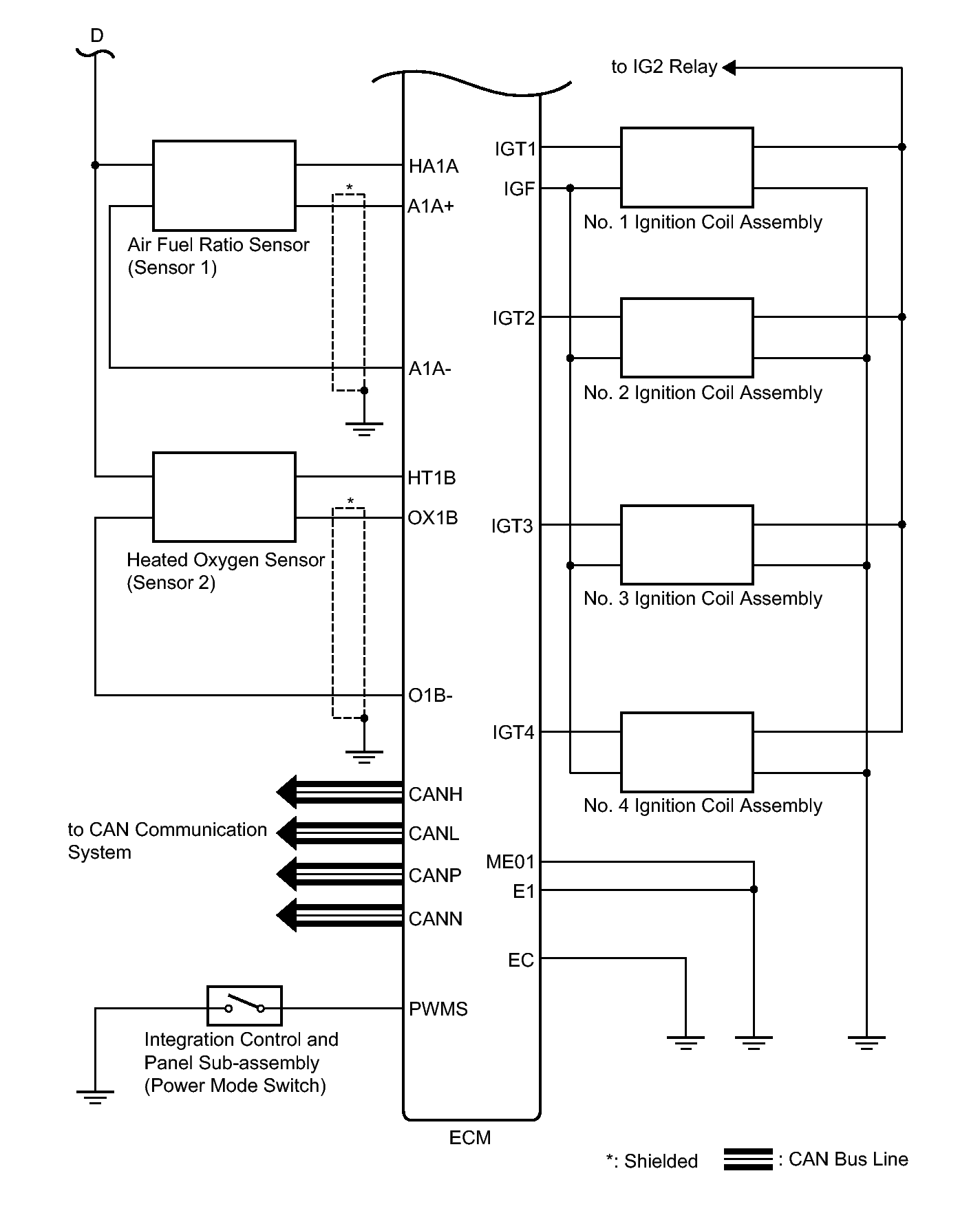

Fig 4: SFI System Diagram (4 Of 4)
GTY338220Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
