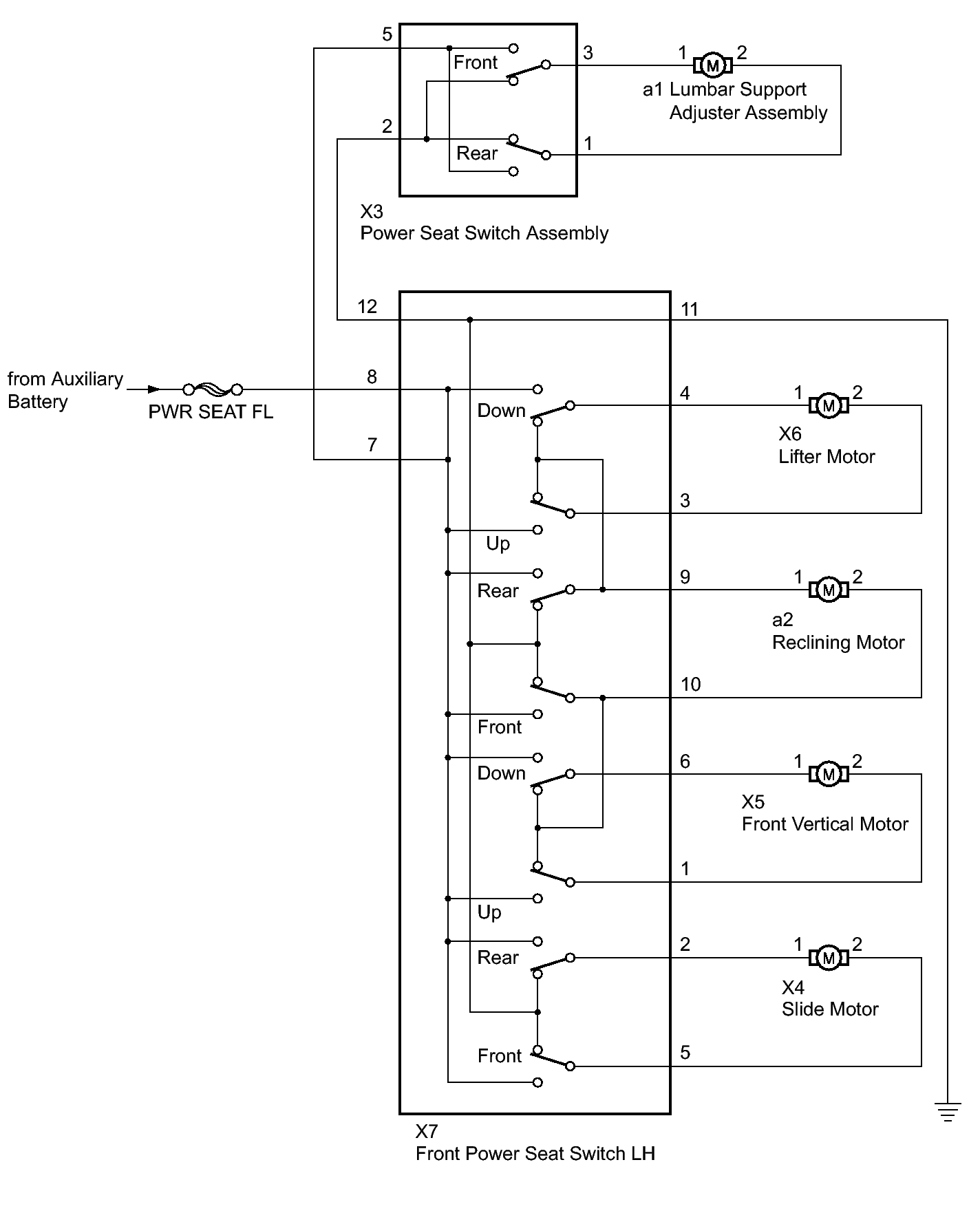

Home › Toyota › 2012 › Prius Four › Repair and Diagnosis (Single Page) › Body & Frame › Seats › Front Power Seat Control System (Except Plug-In) (Inspection) › Front Power Seat Control System › System Diagram › System Diagram
