PTC Heater Assembly: Installation: Installation

WARNING: This page is about a different variant/trim than selected.

INSTALL QUICK HEATER ASSEMBLY
1. Insert the quick heater assembly as shown in the illustration.

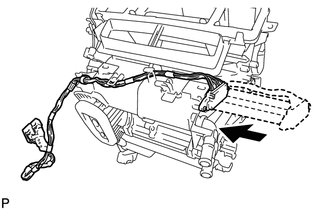

  Fig 1: Installing Quick Heater Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the 2 screws.
3. Engage each clamp to install the quick heater assembly.
INSTALL BLOWER ASSEMBLY
Refer to INSTALLATION
