Engine Unit: Removal: Removal

  1. INSTALL ENGINE STAND
    1. Install the engine onto an engine stand with the bolts.
  2. REMOVE ENGINE HANGERS
    1. Remove the 2 bolts and 2 engine hangers.

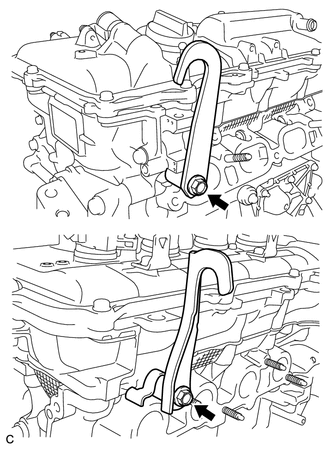

      Fig 1: Identifying Engine Hangers
      GTY336877Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE THROTTLE BODY ASSEMBLY  . Refer to REMOVAL - Step 7
  4. REMOVE ENGINE OIL LEVEL DIPSTICK GUIDE
    1. Remove the engine oil level dipstick.
    2. Remove the 2 bolts, clamp and engine oil level dipstick guide.

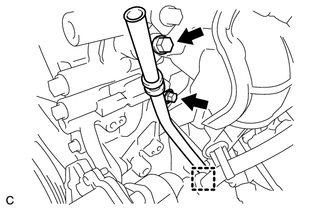

      Fig 2: Identifying Bolts, Clamp And Engine Oil Level Dipstick Guide
      GTY223965Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the O-ring from the engine oil level dipstick guide.
  5. REMOVE EGR PIPE ASSEMBLY  . Refer to REMOVAL - Step 9
  6. REMOVE EGR VALVE WITH COOLER ASSEMBLY  . Refer to REMOVAL - Step 10
  7. REMOVE INTAKE MANIFOLD  . Refer to REMOVAL - Step 5
  8. REMOVE FUEL VAPOR FEED PIPE
    1. Remove the bolt and fuel vapor feed pipe.

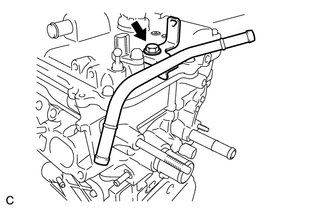

      Fig 3: Identifying Fuel Vapor Feed Pipe
      GTY337209Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE FUEL DELIVERY PIPE SUB-ASSEMBLY  . Refer to REMOVAL - Step 9
  10. REMOVE NO. 1 DELIVERY PIPE SPACER  . Refer to REMOVAL - Step 10
  11. REMOVE FUEL INJECTOR ASSEMBLY  . Refer to REMOVAL - Step 11
  12. REMOVE NO. 1 EXHAUST MANIFOLD HEAT INSULATOR  . Refer to REMOVAL - Step 12
  13. REMOVE MANIFOLD STAY  . Refer to REMOVAL - Step 14
  14. REMOVE EXHAUST MANIFOLD  . Refer to REMOVAL - Step 15
  15. REMOVE VENTILATION HOSE
    1. Remove the ventilation hose from the ventilation valve.
      Fig 4: Identifying Ventilation Hose
      GTY329959Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. REMOVE IGNITION COIL ASSEMBLY  . Refer to REMOVAL - Step 5
