Plug-In Charge Control System (Plug-In) (Diagnostic Codes (P0560-117 - U-0293-449) & Circuit Tests)
›
Plug-In Charge Control System
›
Circuit Tests
›
ECU Power Source Circuit
›
Wiring Diagram

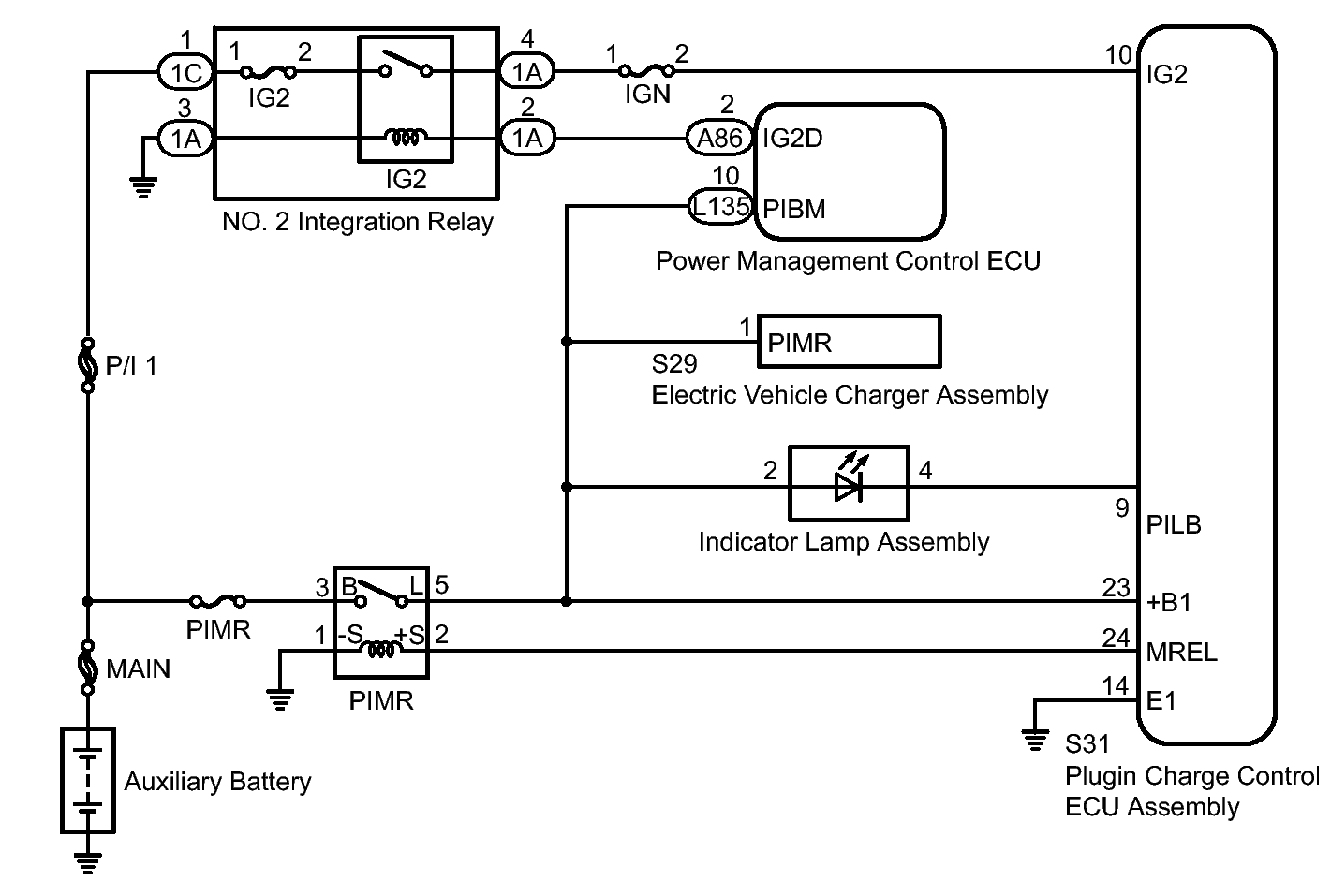

ECU Power Source Circuit: Wiring Diagram
Fig 1: Identifying ECU Power Source Circuit Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
