Parts Location: Illustration

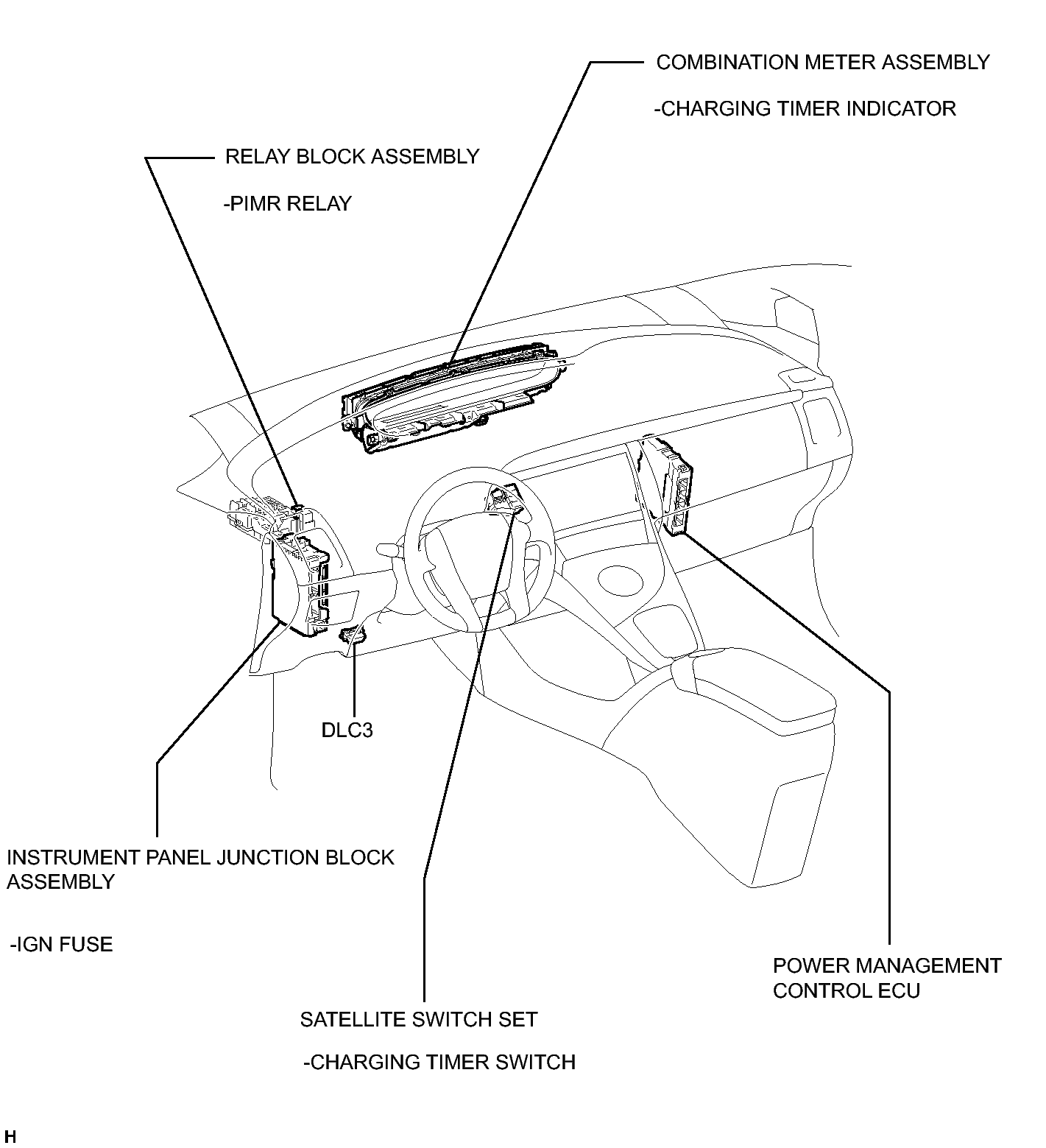

Fig 1: Identifying Plug-In Charge Control System Replacement Components (1 Of 3)
GTY343931Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

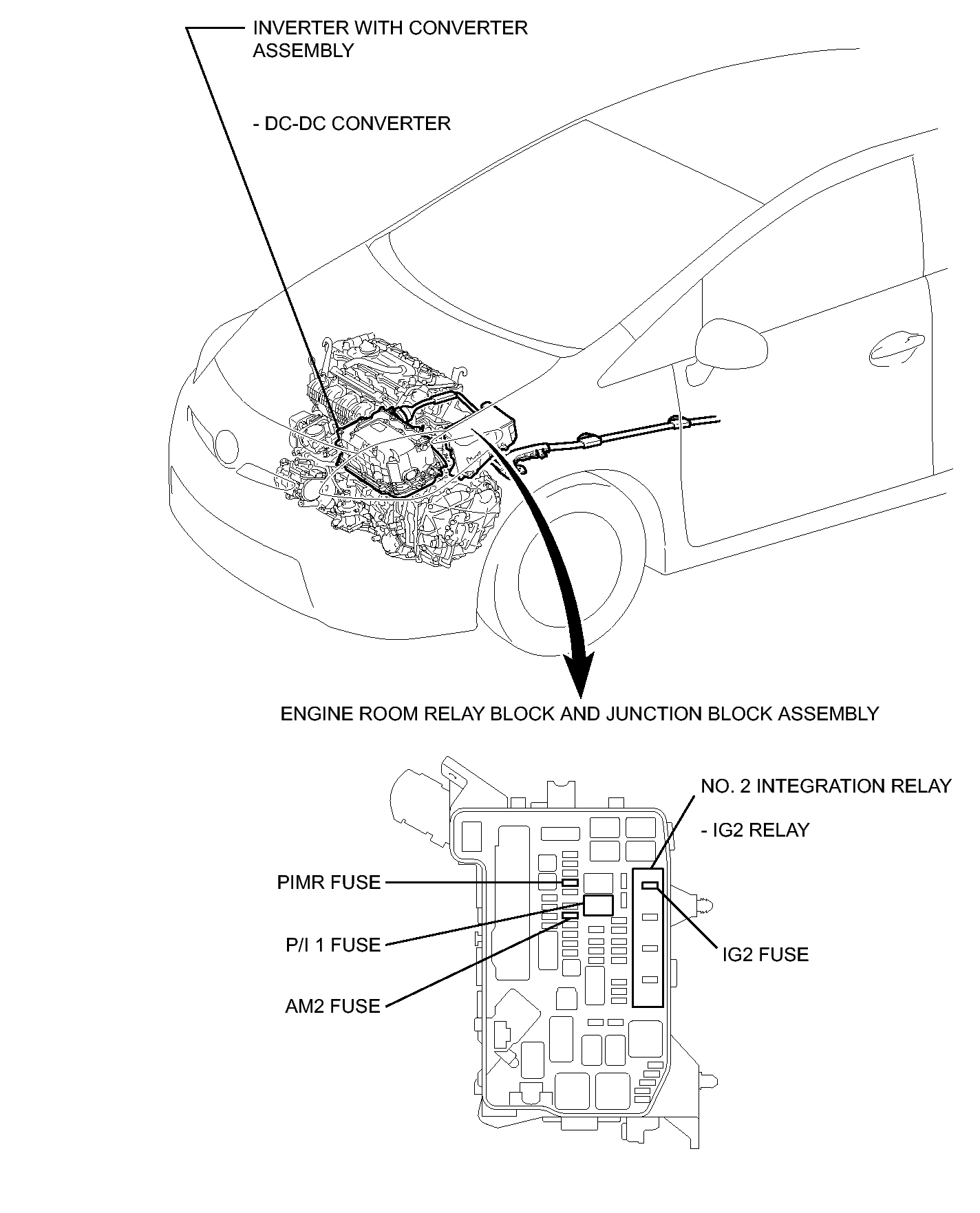

Fig 1: Identifying Plug-In Charge Control System Replacement Components (2 Of 3)
GTY337619Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

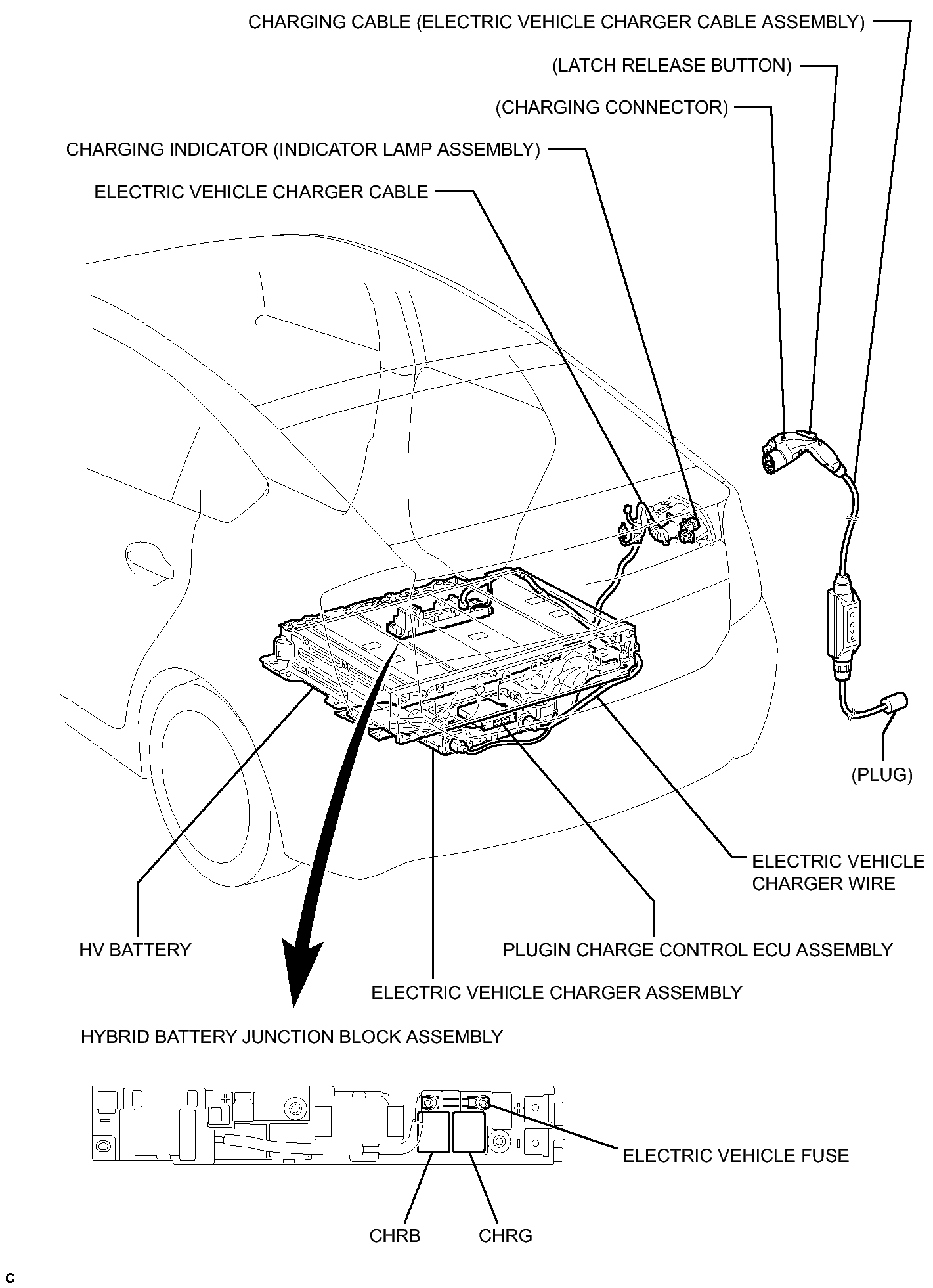

Fig 1: Identifying Plug-In Charge Control System Replacement Components (3 Of 3)
GTY340419Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
