Parts Location: Illustration

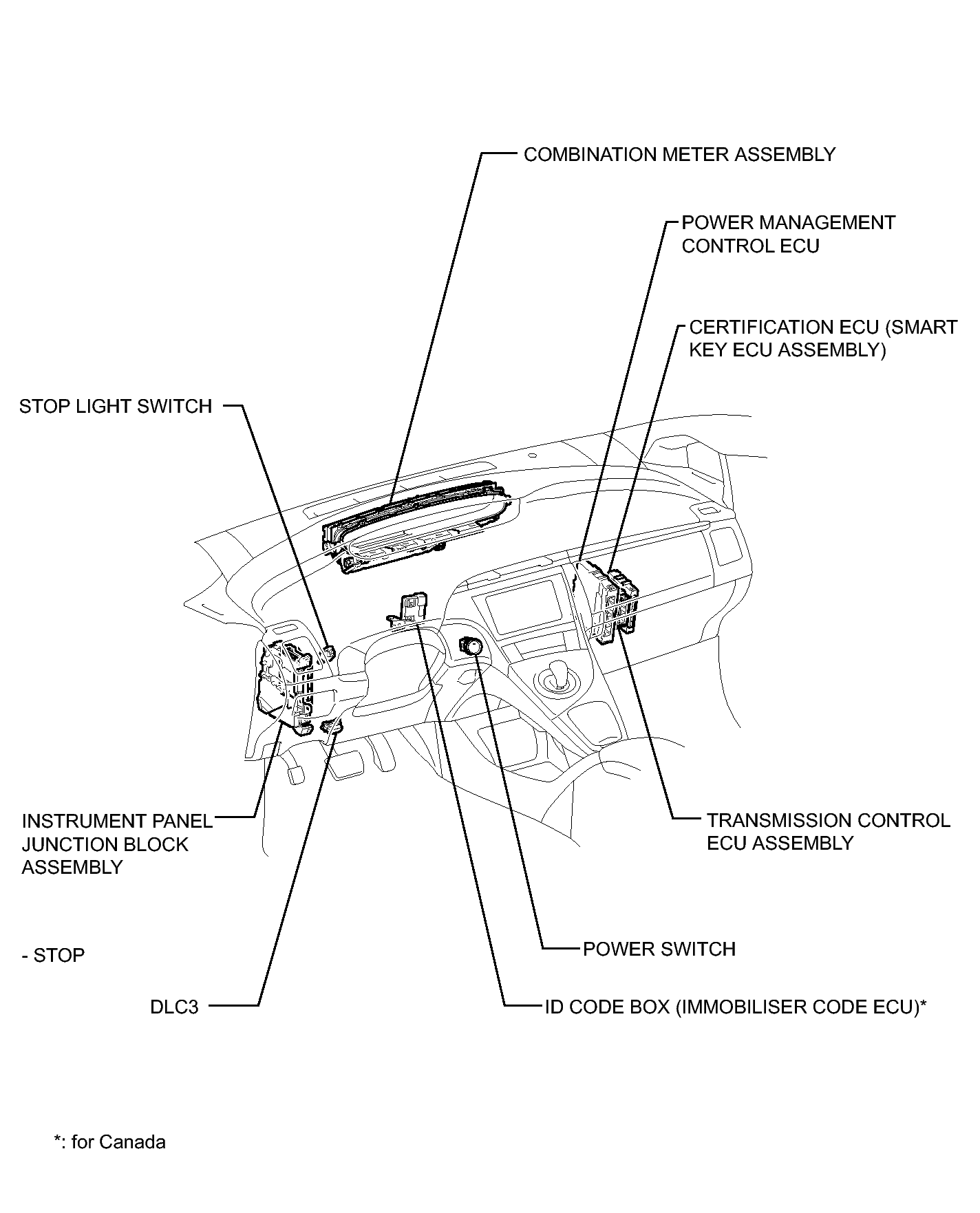

Fig 1: Identifying Smart Key System (For Start Function) Components Location (1 Of 2)
GTY327514Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

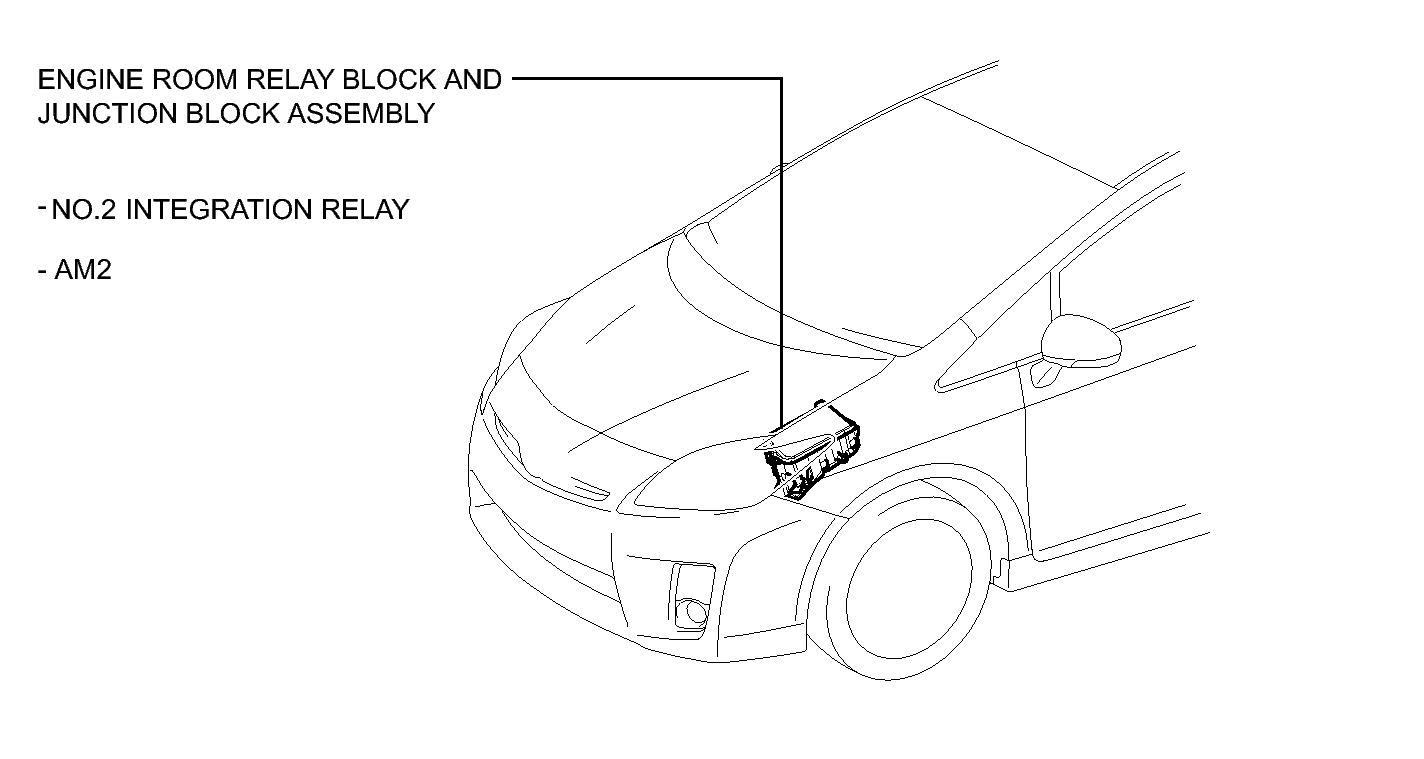

Fig 1: Identifying Smart Key System (For Start Function)Components Location (2 Of 2)
GTY336525Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
