Integration Relay: Components: Illustration

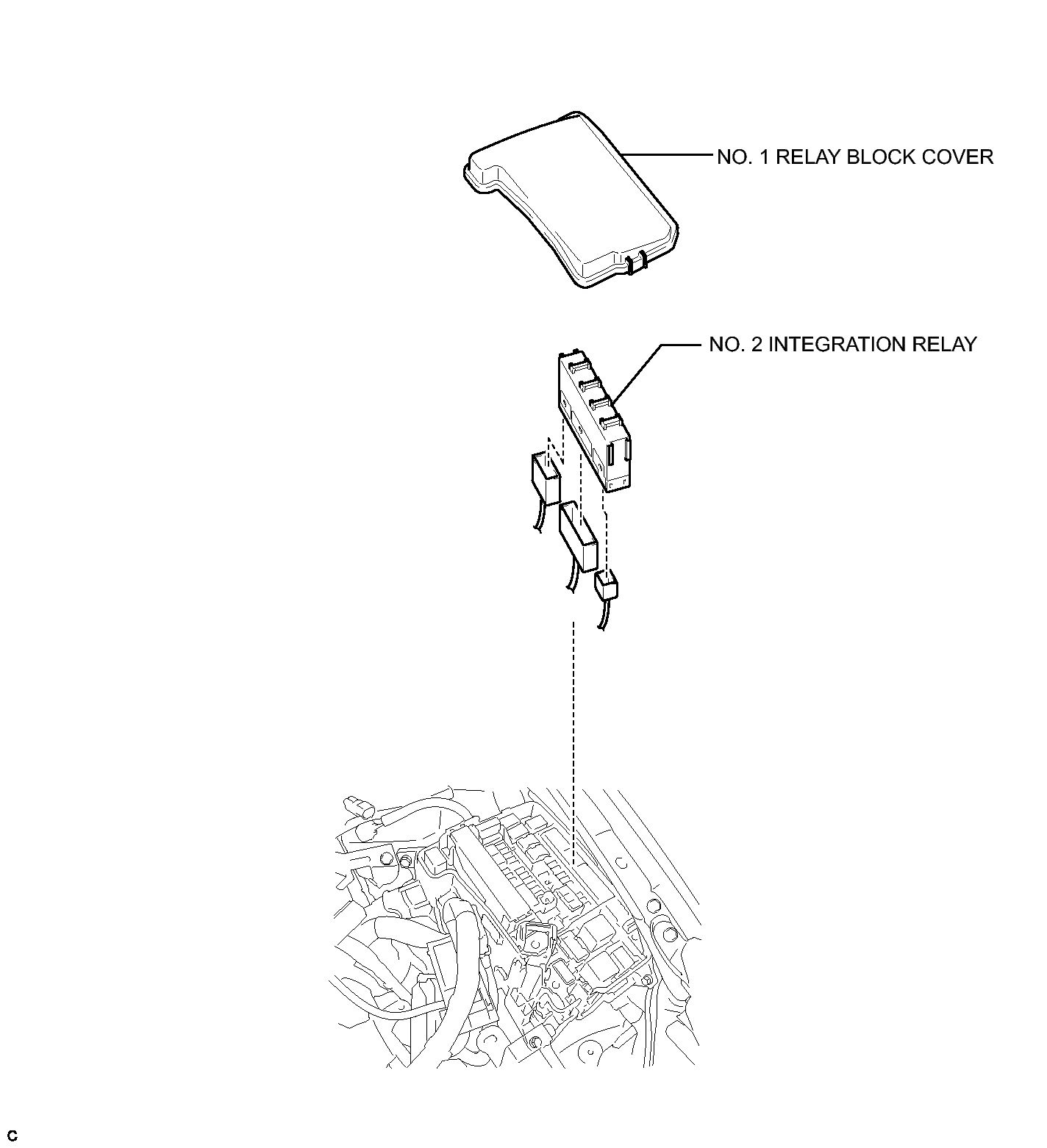

Fig 1: Identifying Integration Relay Replacement Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
