Section 104 (Smart Key System (For Entry Function) (Except Plug-In) (Diagnostics - Introduction))
›
SMART KEY SYSTEM (for Entry Function)
›
Parts Location
›
Illustrations
Parts Location: Illustrations
WARNING:
This page is about a different variant/trim than selected.

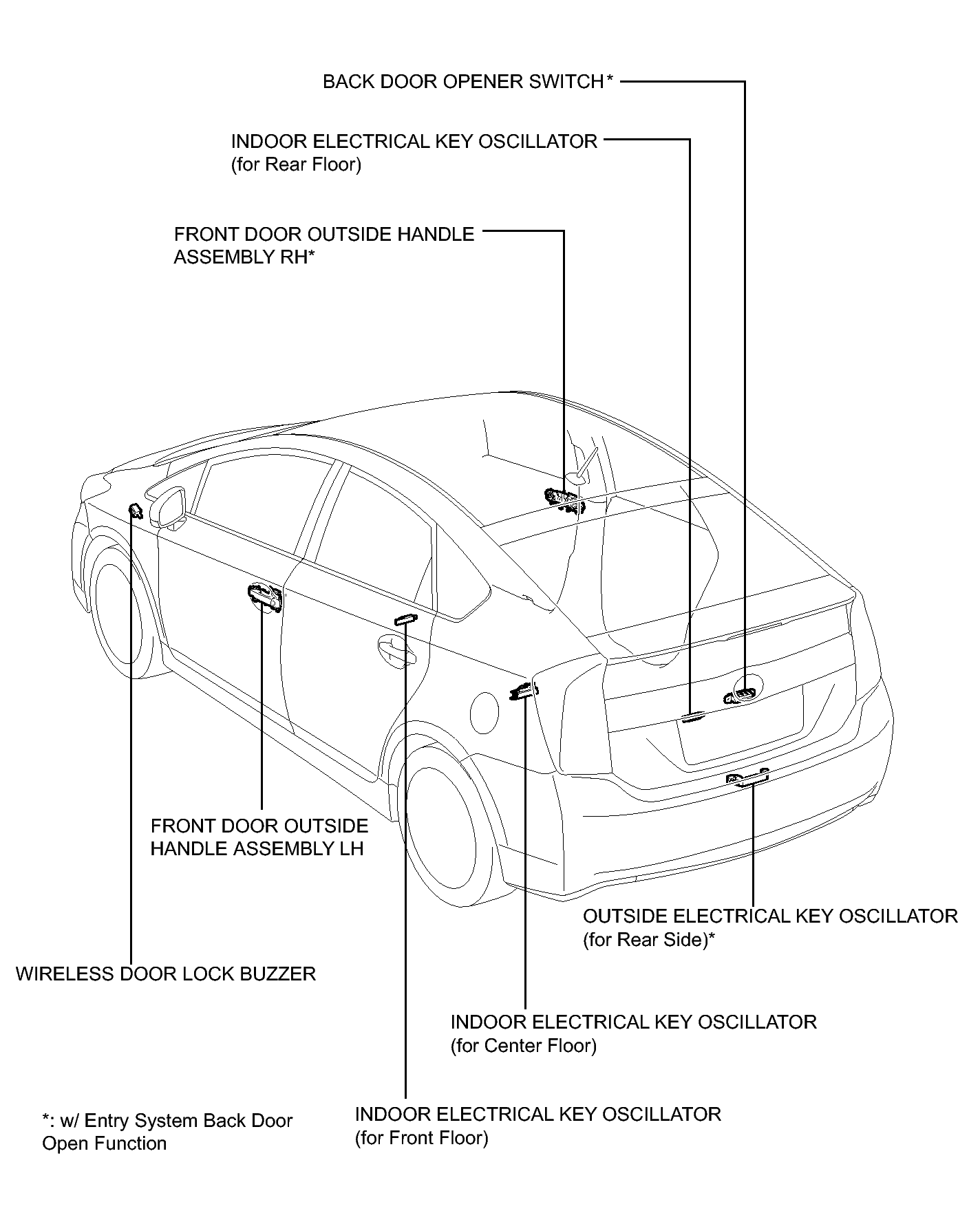

Fig 1: Identifying Smart Key System Components Location (1 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

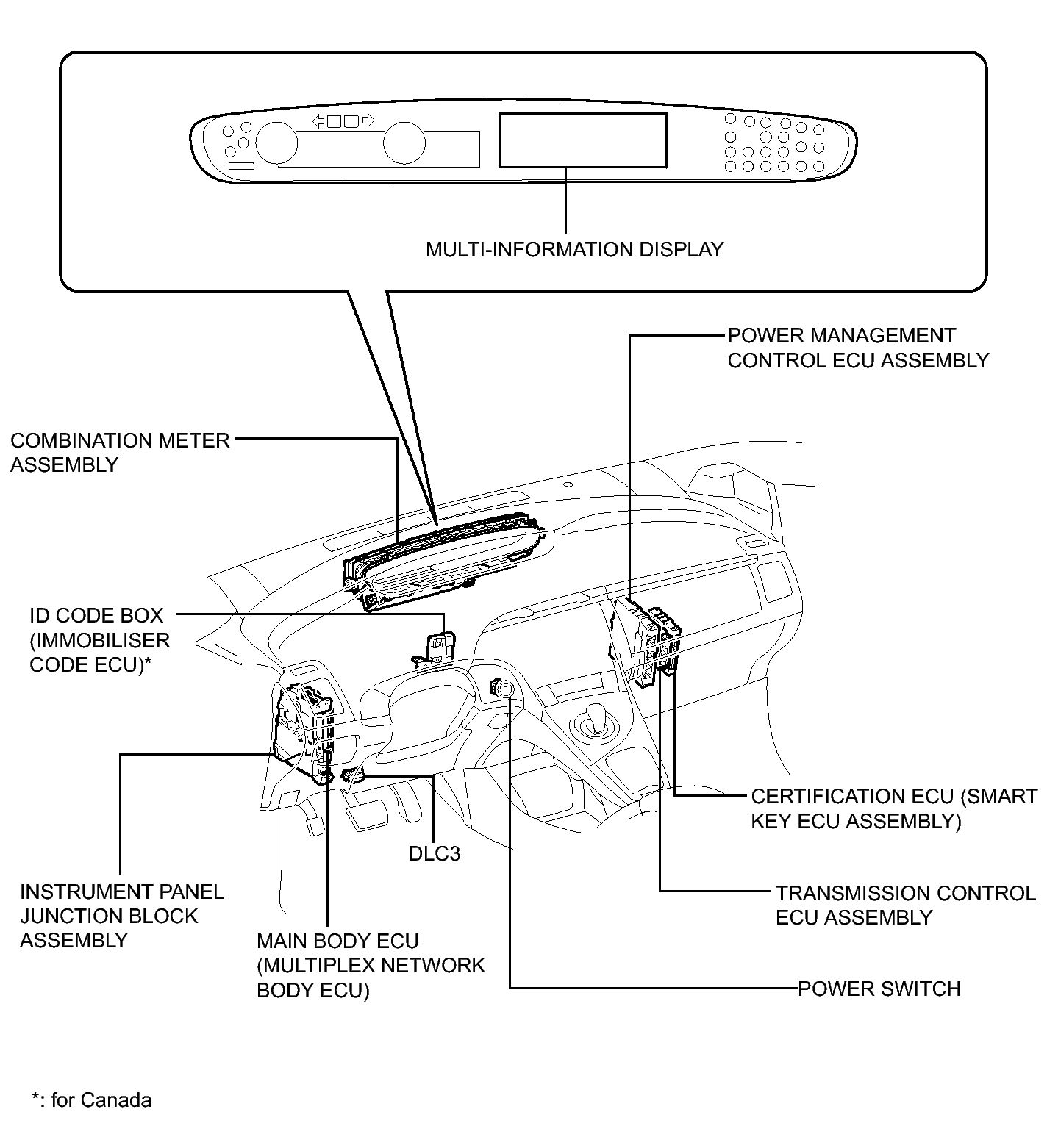

Fig 2: Identifying Smart Key System Components Location (2 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Identifying Smart Key System Components Location (3 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
