Section 145 (Vehicle Proximity Notification System (Except Plug-In) (Diagnostics))
›
Vehicle Proximity Notification System
›
System Diagram
›
System Diagram
System Diagram
WARNING:
This page is about a different variant/trim than selected.

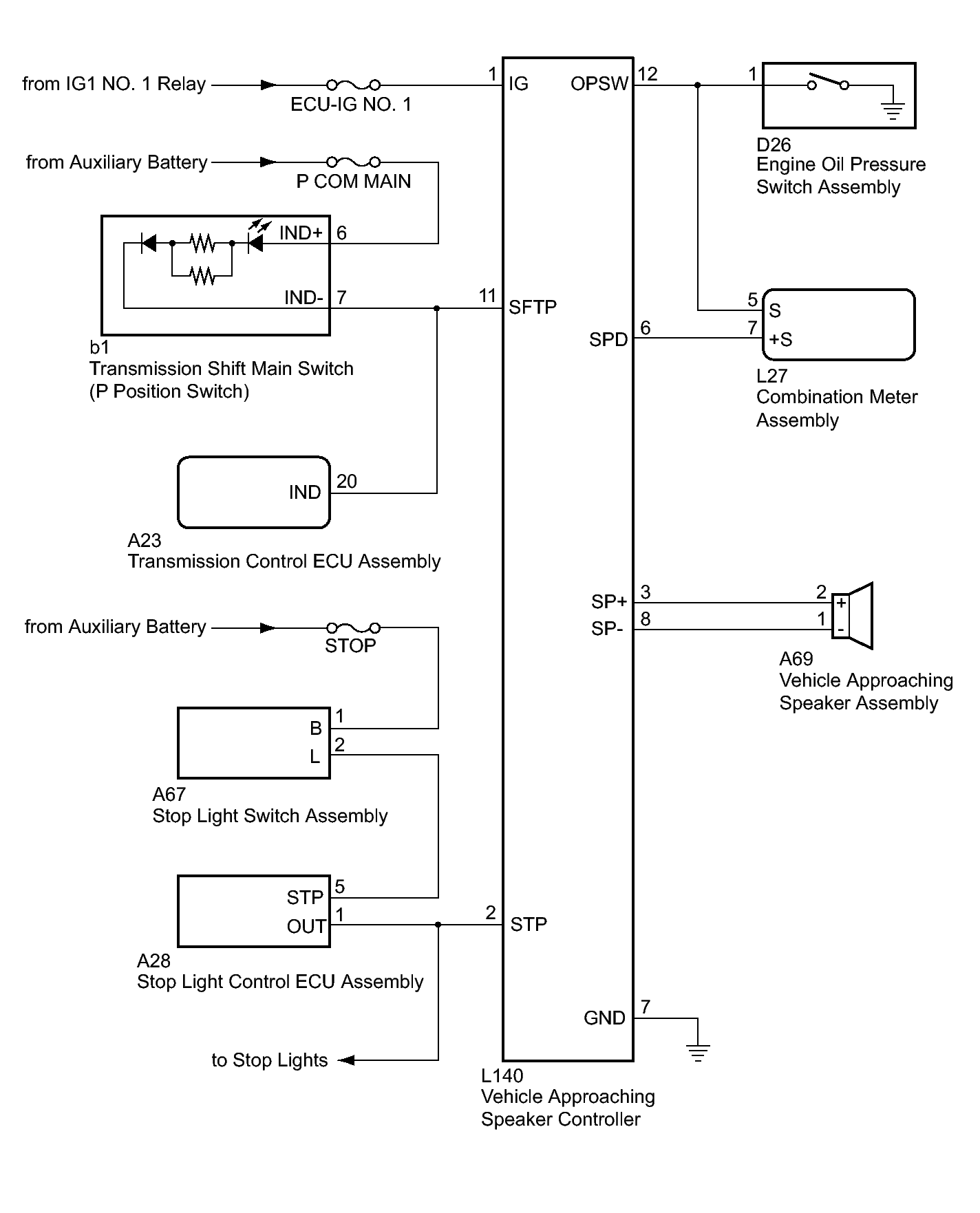

Fig 1: Vehicle Proximity Notification System Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
