Hybrid Transaxle (Except Plug-In) (Service Information): TCM: Components: Illustration

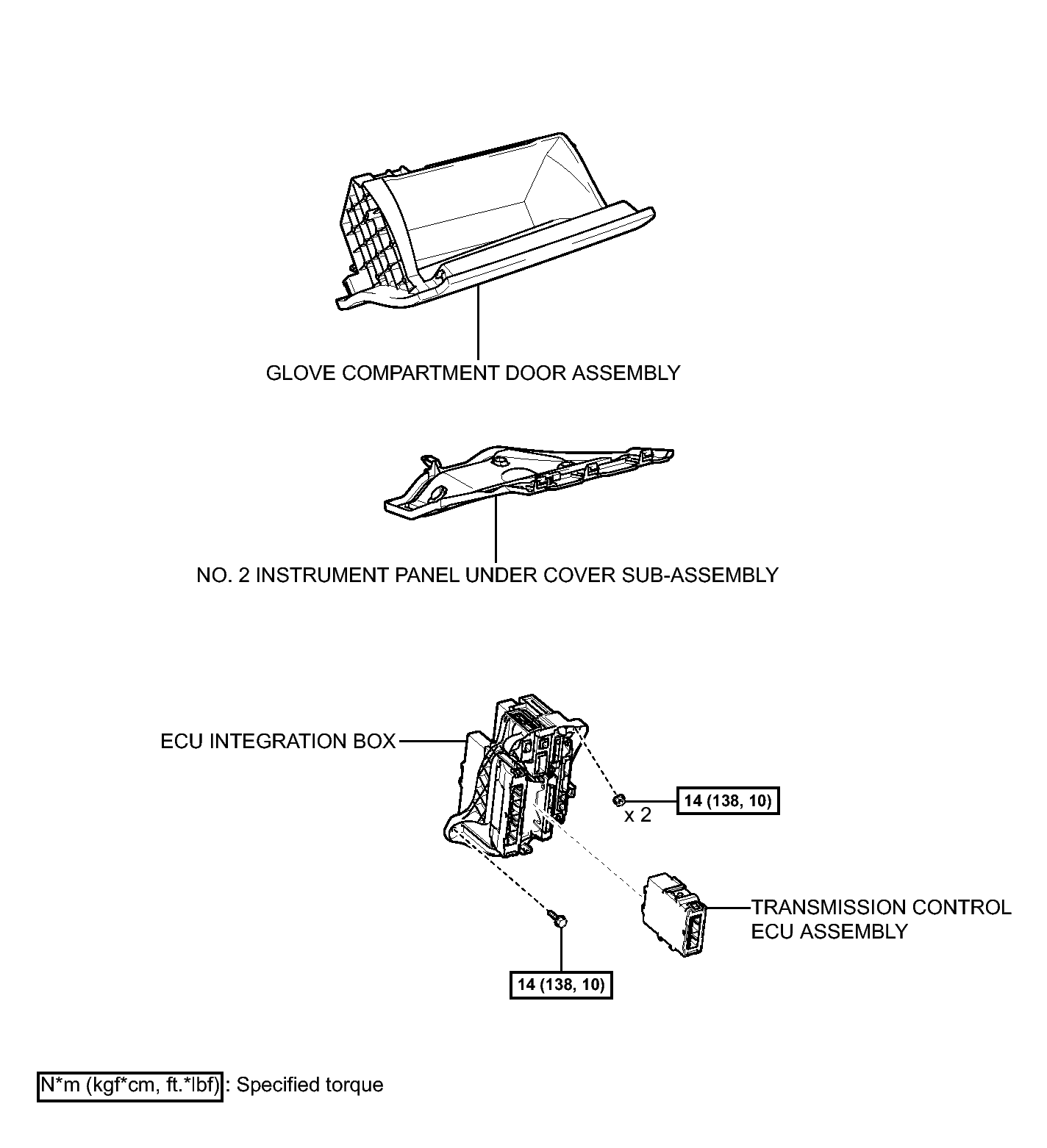

Fig 1: Identifying TCM Replacement Components With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
