Remote Up / Down Function does not Operate: Wiring Diagram

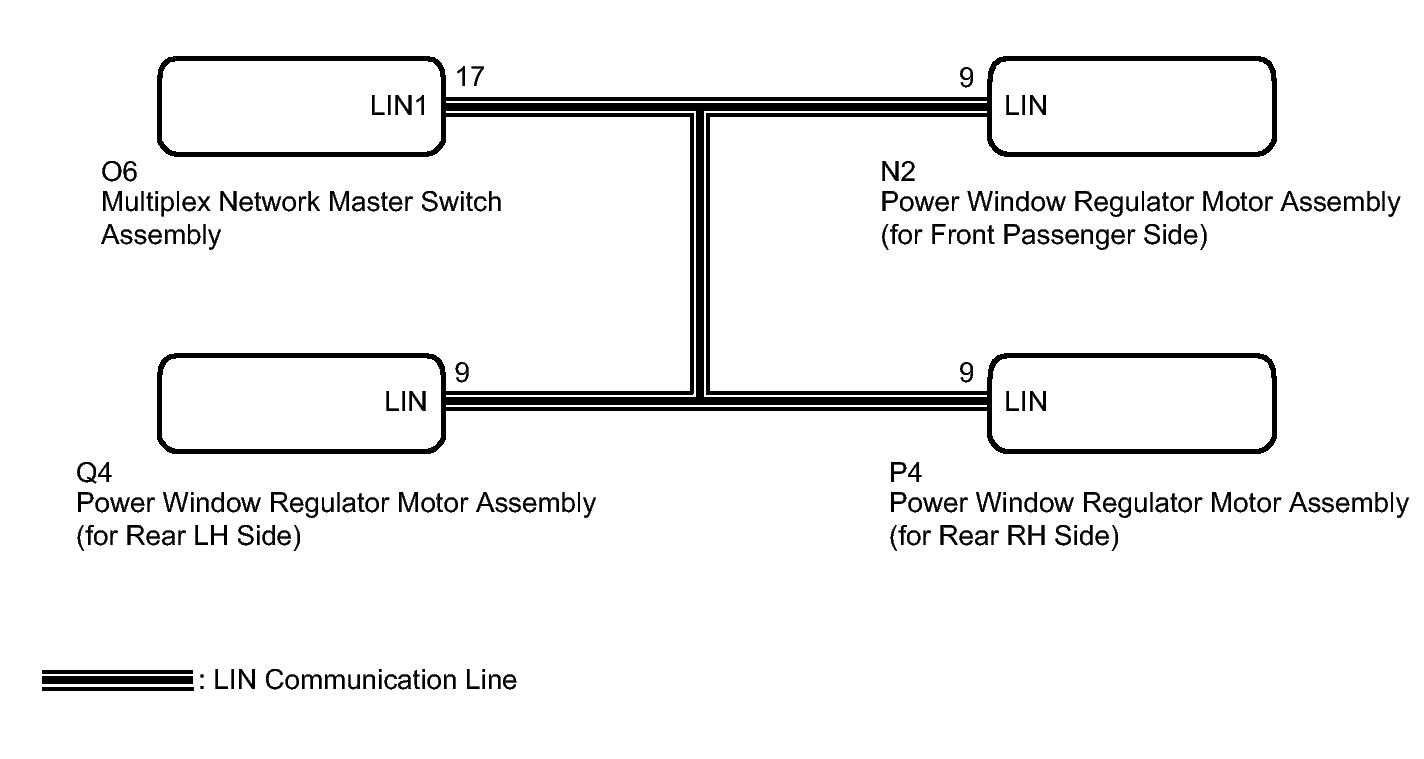

Fig 1: Identifying Multiplex Communication System Wiring Diagram
GTY232510Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
