Engine Assembly: Components: Illustration

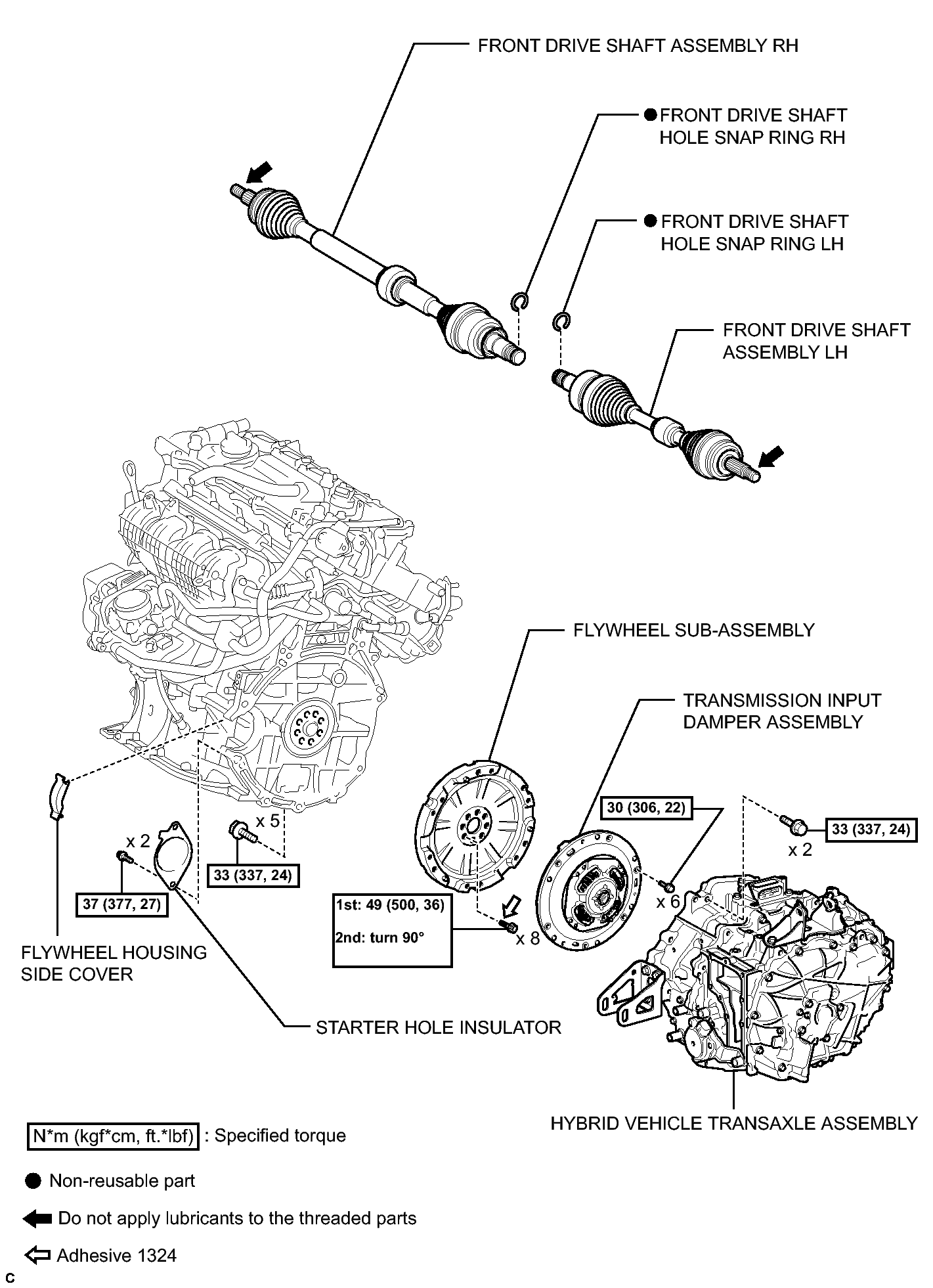

Fig 1: Identifying Engine Assembly Replacement Components (1 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

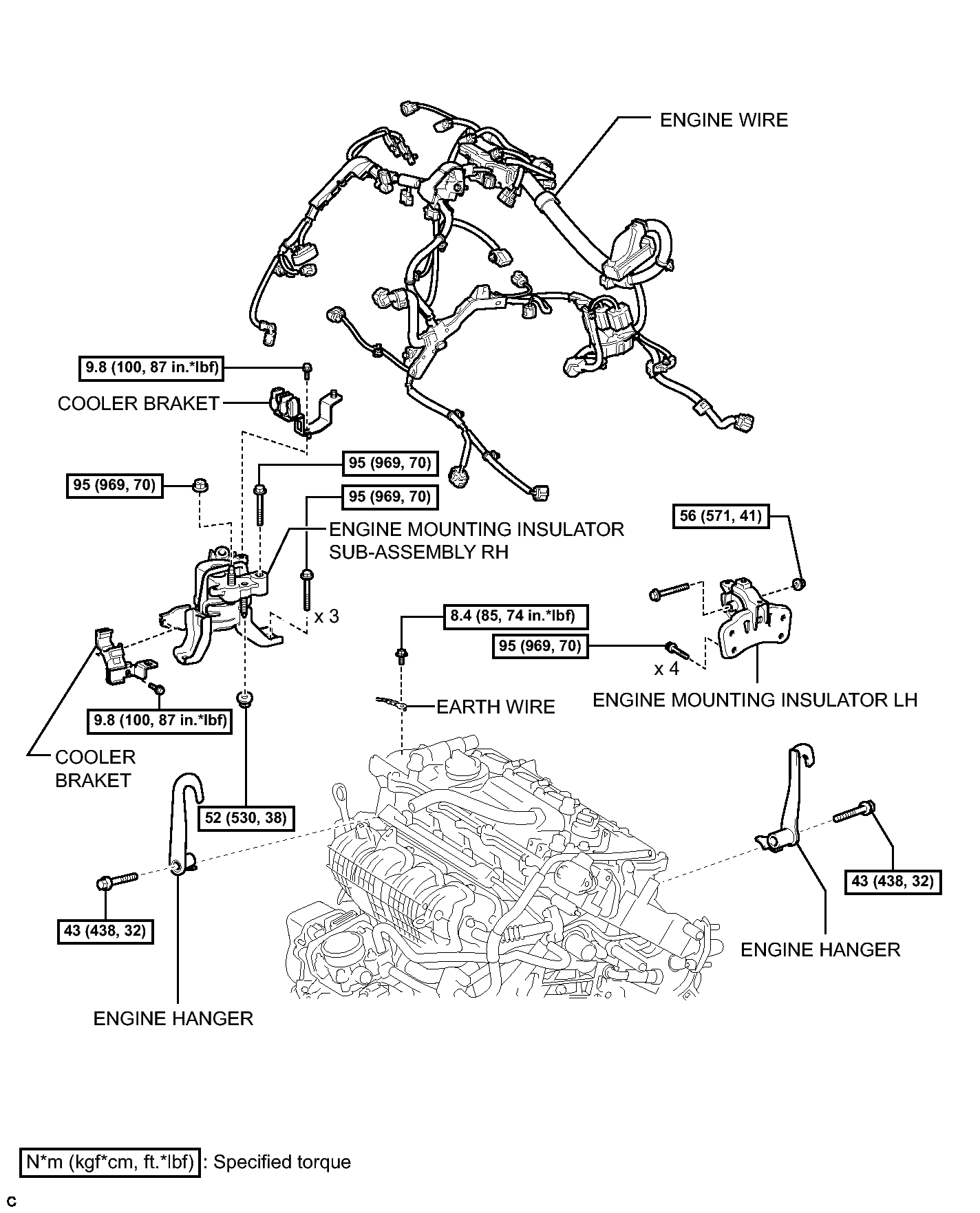

Fig 2: Identifying Engine Assembly Replacement Components (2 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

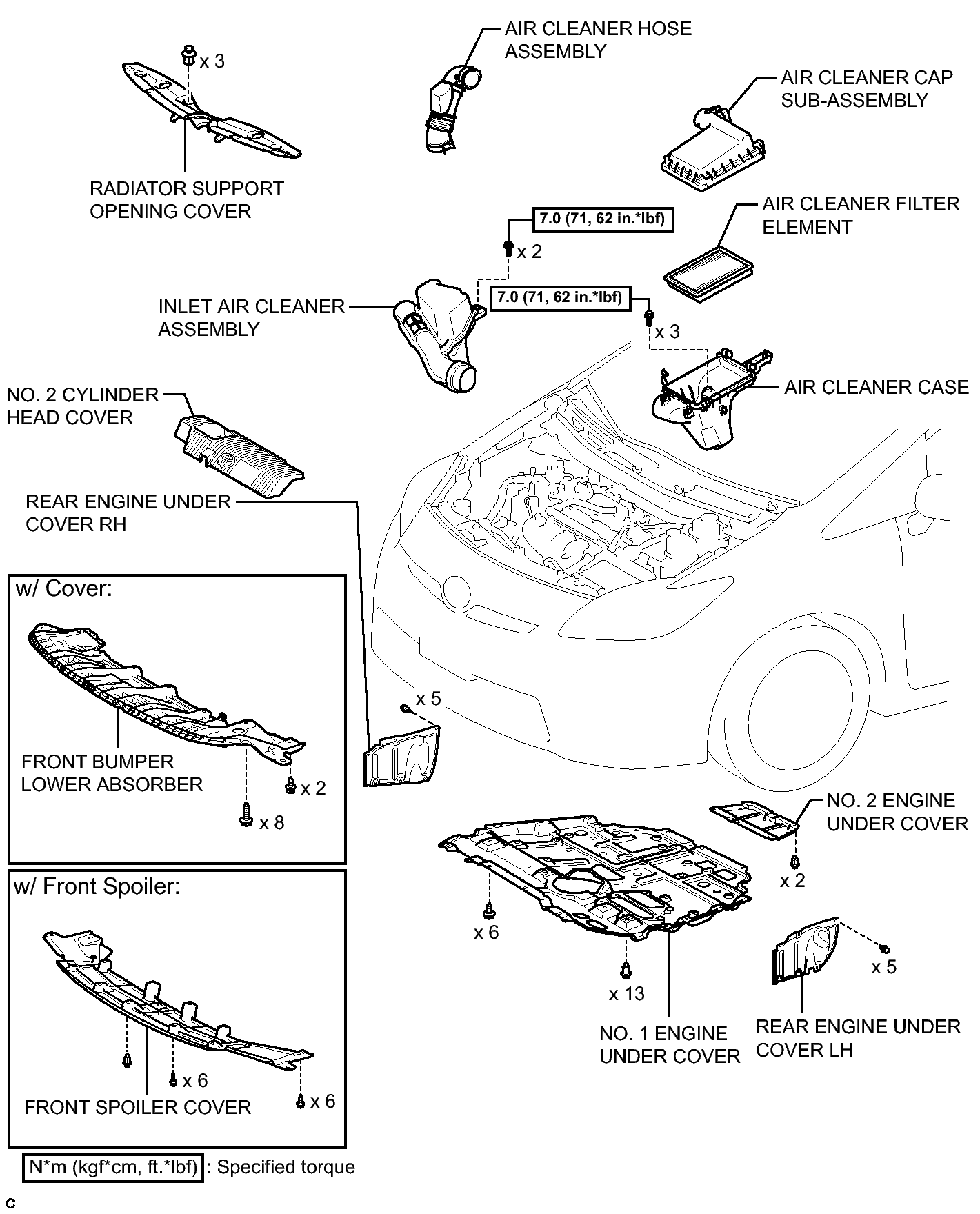

Fig 3: Identifying Engine Assembly Replacement Components With Torque Specifications (3 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

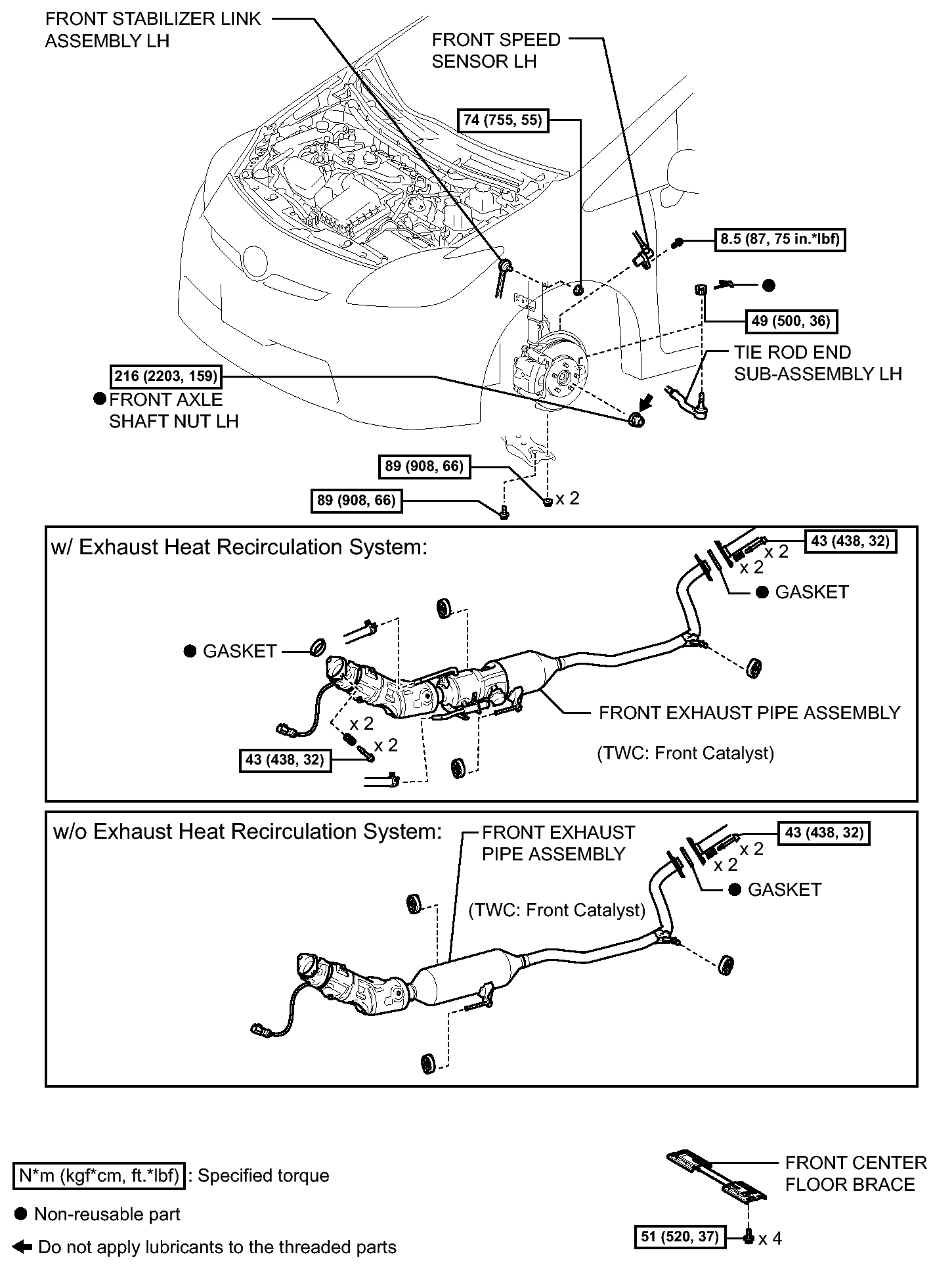

Fig 4: Identifying Engine Assembly Replacement Components With Torque Specifications (4 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

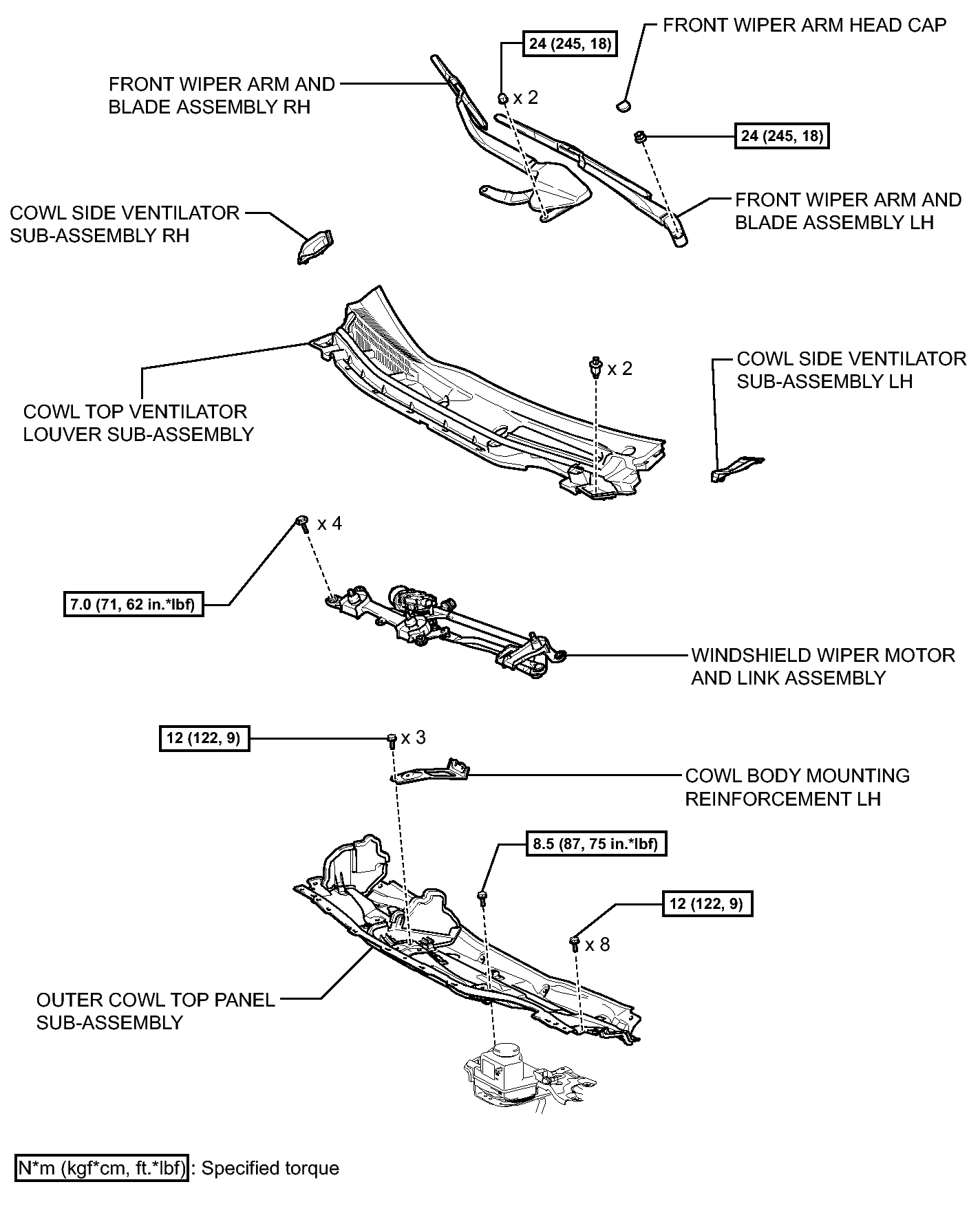

Fig 5: Identifying Engine Assembly Replacement Components With Torque Specifications (5 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

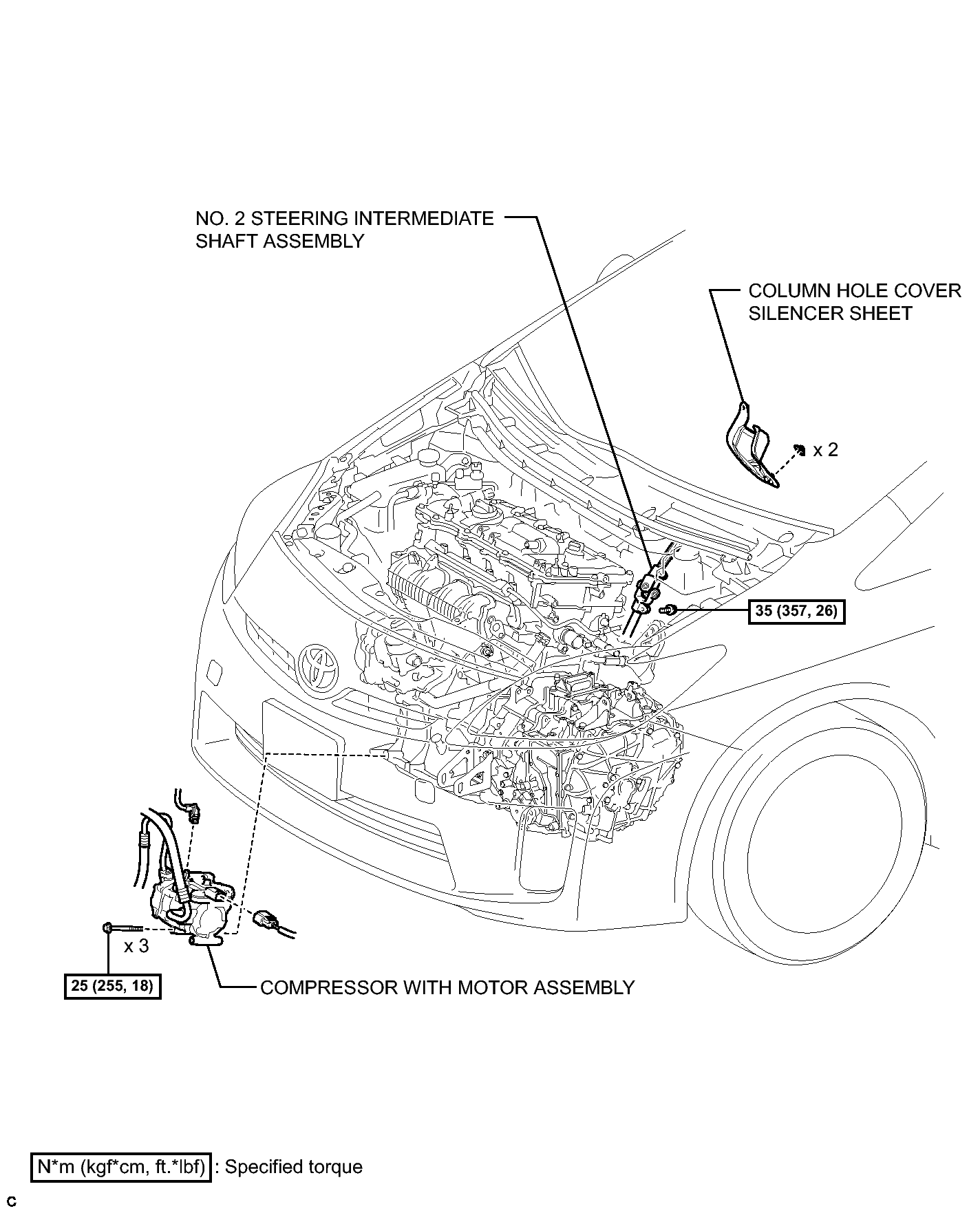

Fig 6: Identifying Engine Assembly Replacement Components With Torque Specifications (6 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

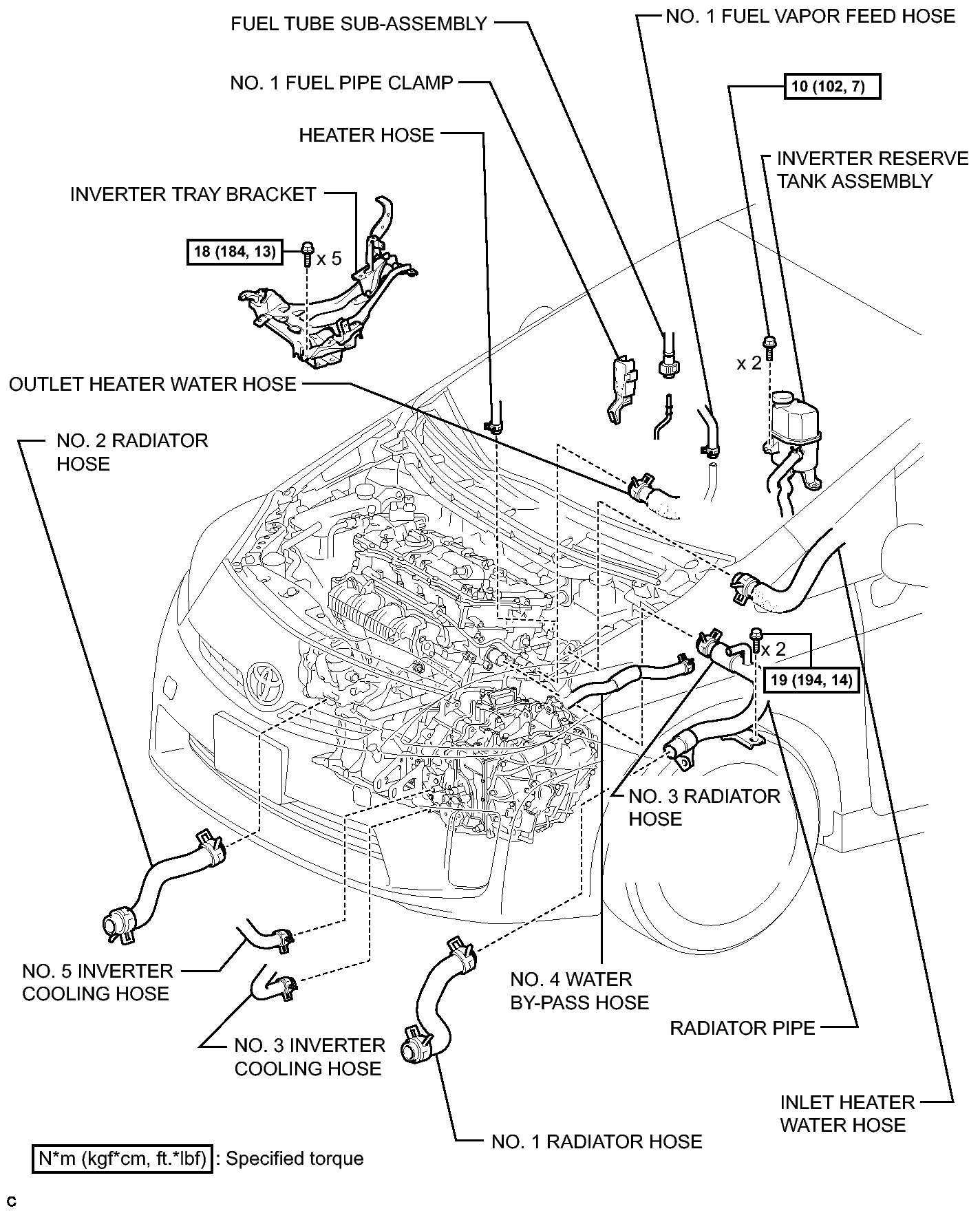

Fig 7: Identifying Engine Assembly Replacement Components With Torque Specifications (7 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

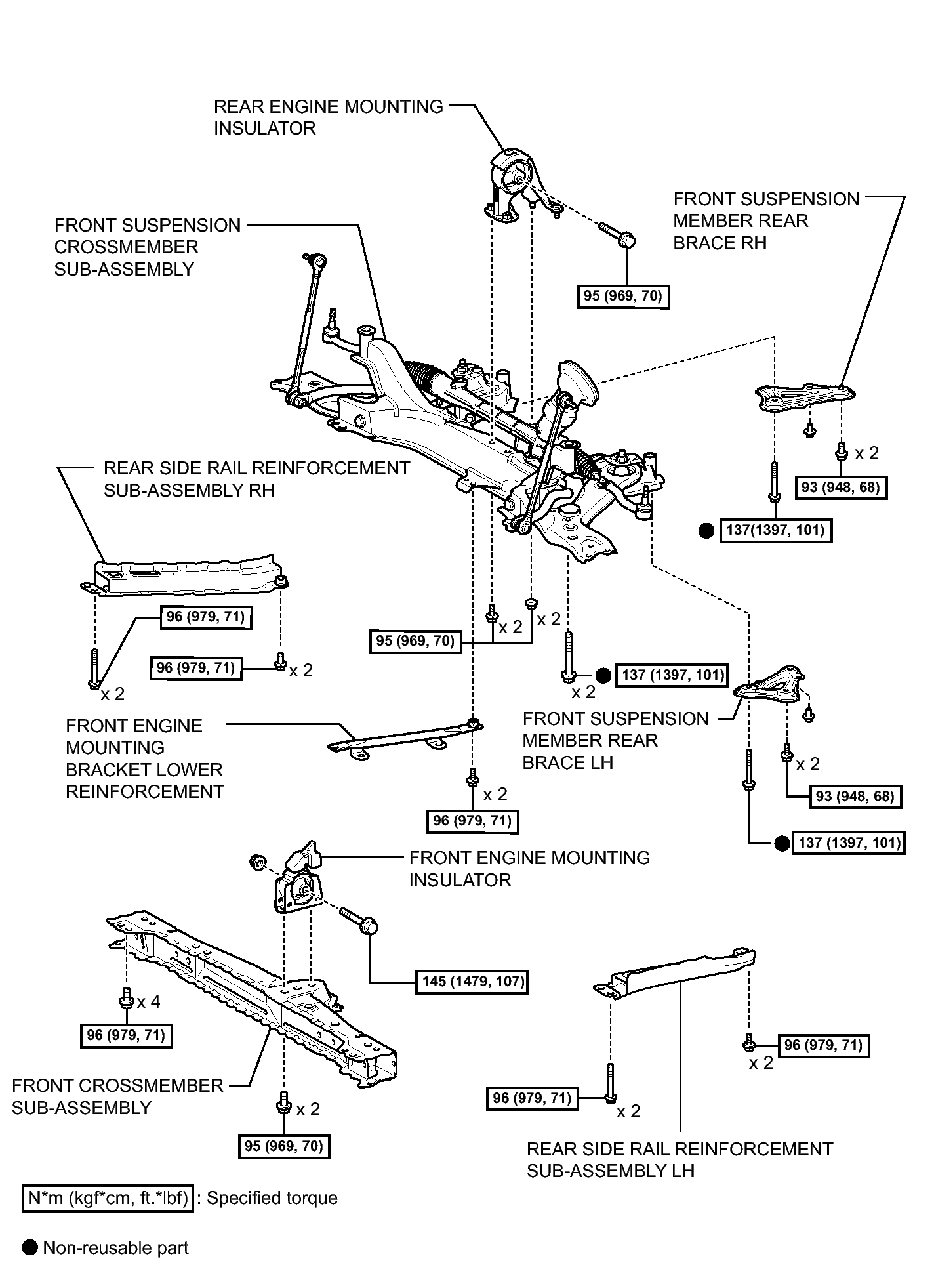

Fig 8: Identifying Engine Assembly Replacement Components With Torque Specifications (8 Of 11)

Fig 9: Identifying Engine Assembly Replacement Components With Torque Specifications (9 Of 11)

Fig 10: Identifying Engine Assembly Replacement Components With Torque Specifications (10 Of 11)

Fig 11: Identifying Engine Assembly Replacement Components With Torque Specifications (11 Of 11)
