Door Control Receiver: Components: Illustration

WARNING: This page is about a different variant/trim than selected.

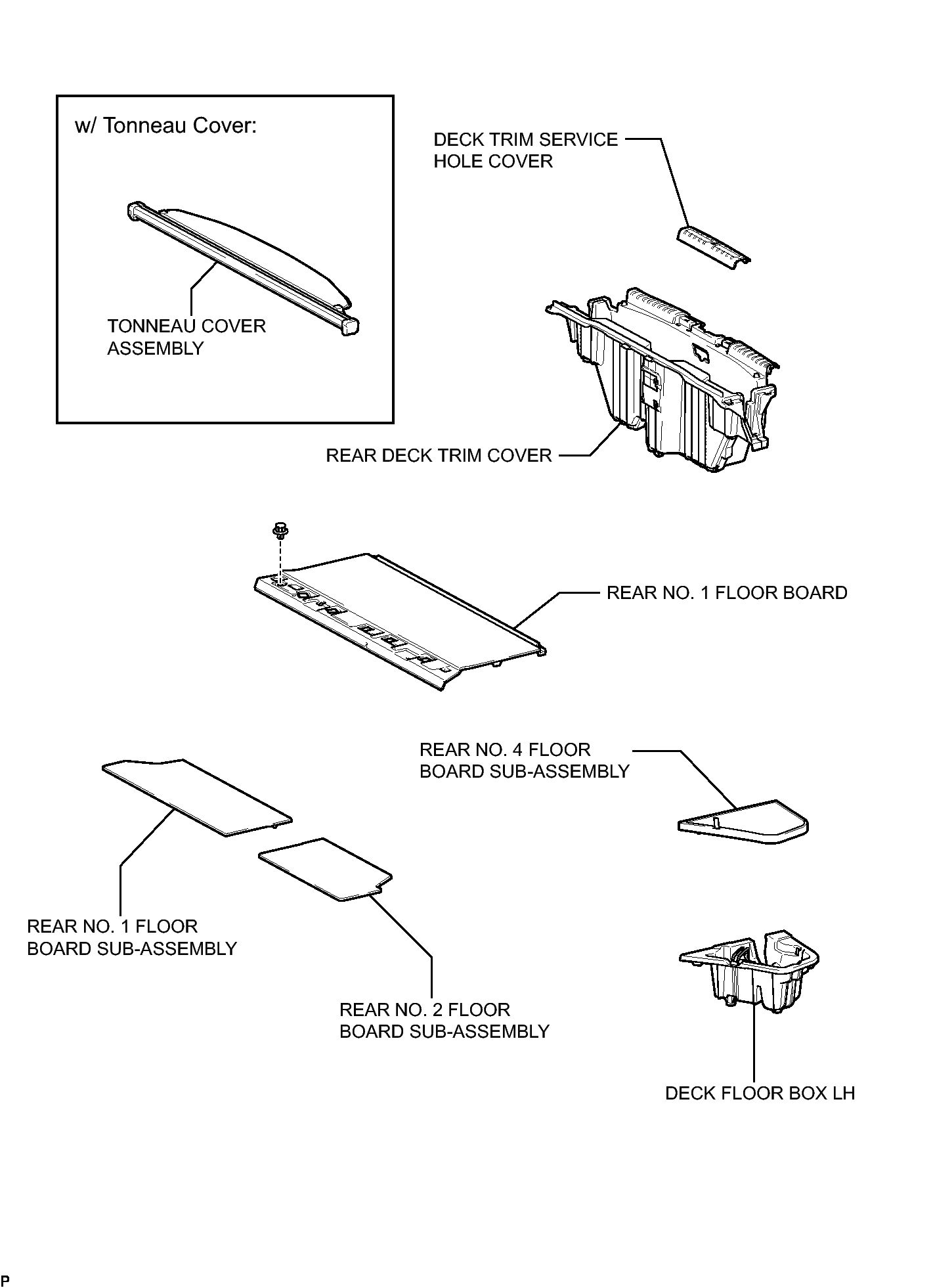

Fig 1: Identifying Door Control Receiver Replacement Components With Torque Specifications (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

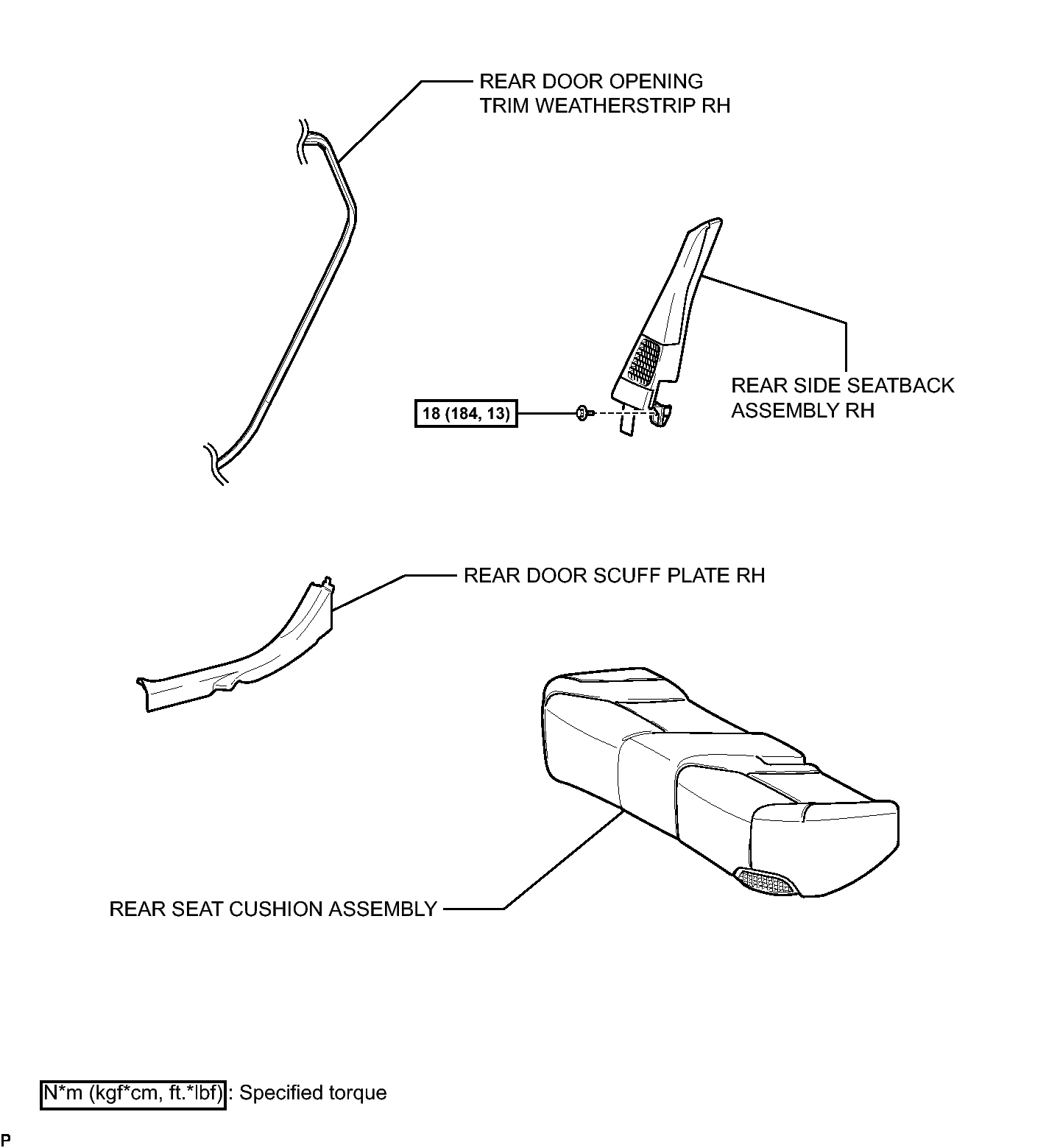

Fig 1: Identifying Door Control Receiver Replacement Components (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

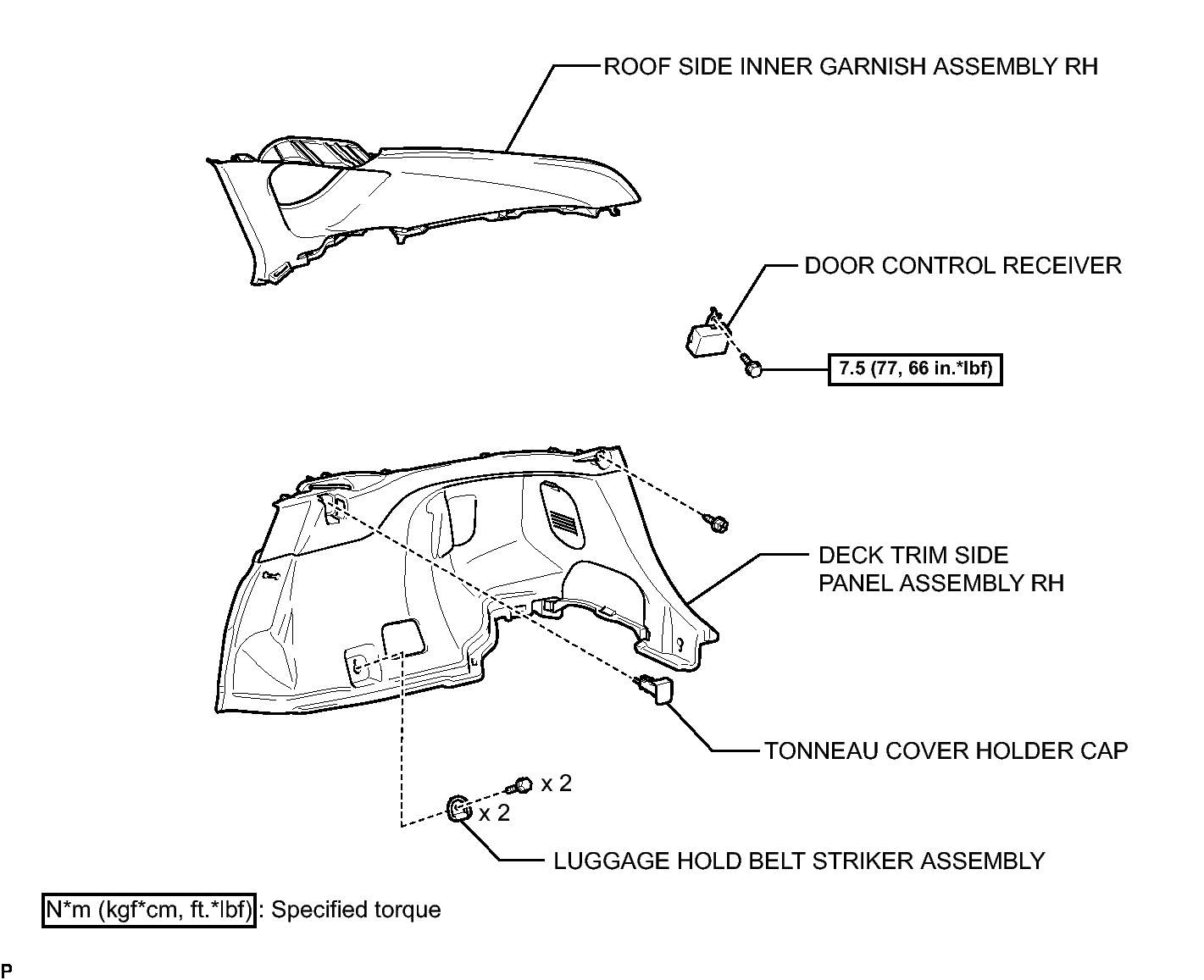

Fig 1: Identifying Door Control Receiver Replacement Components (3 Of 4)

Fig 1: Identifying Door Control Receiver Replacement Components With Torque Specifications (4 Of 4)
