Accelerator Pedal Sensor: Components: Illustration

WARNING: This page is about a different variant/trim than selected.

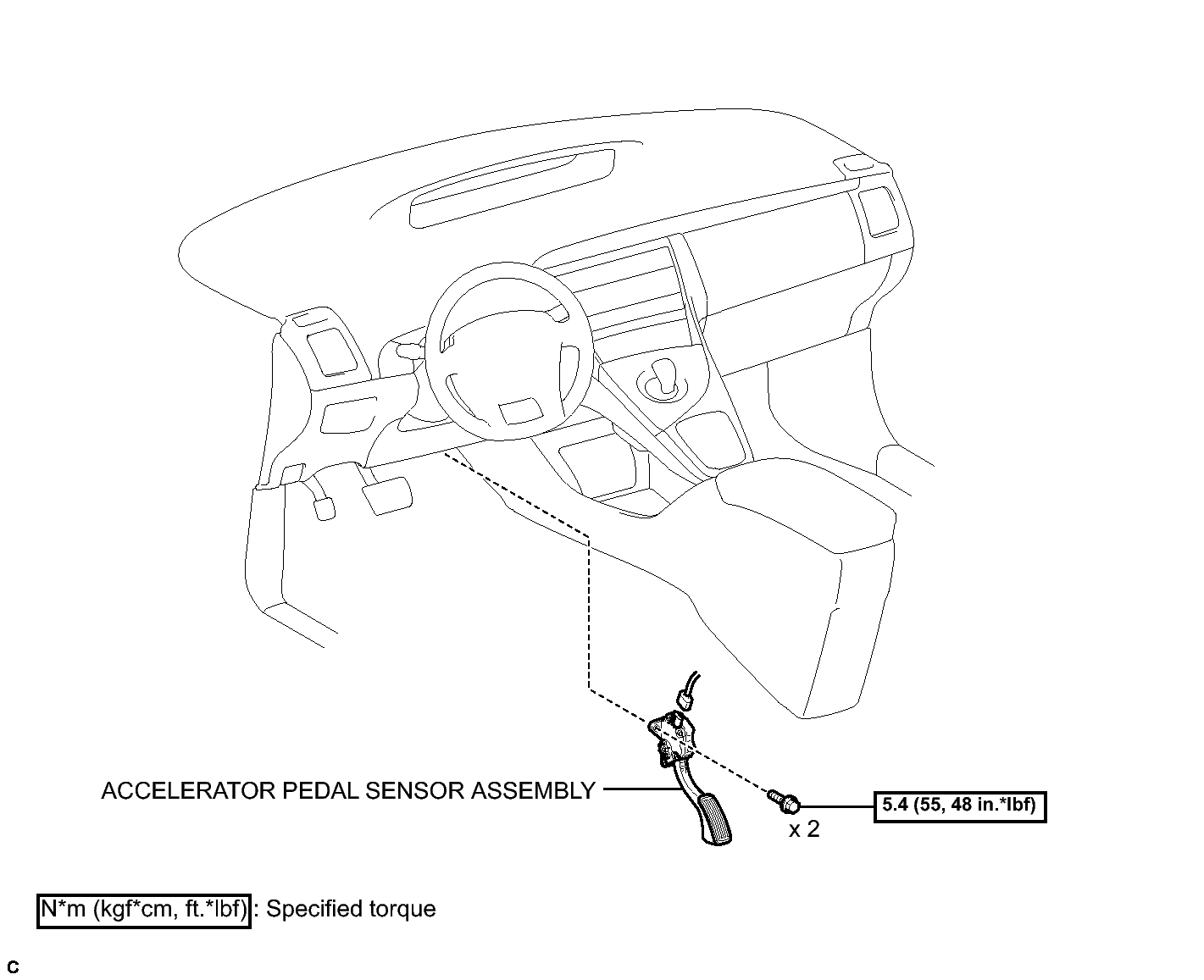

Fig 1: Identifying Accelerator Pedal Sensor Replacement Components With Torque Specifications
GTY333335Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
