Section 25 (Occupant Classification System (Plug-In) (Diagnostics - Introduction))
›
Occupant Classification System
›
Parts Location
›
Illustration
Parts Location: Illustration
WARNING:
This page is about a different variant/trim than selected.

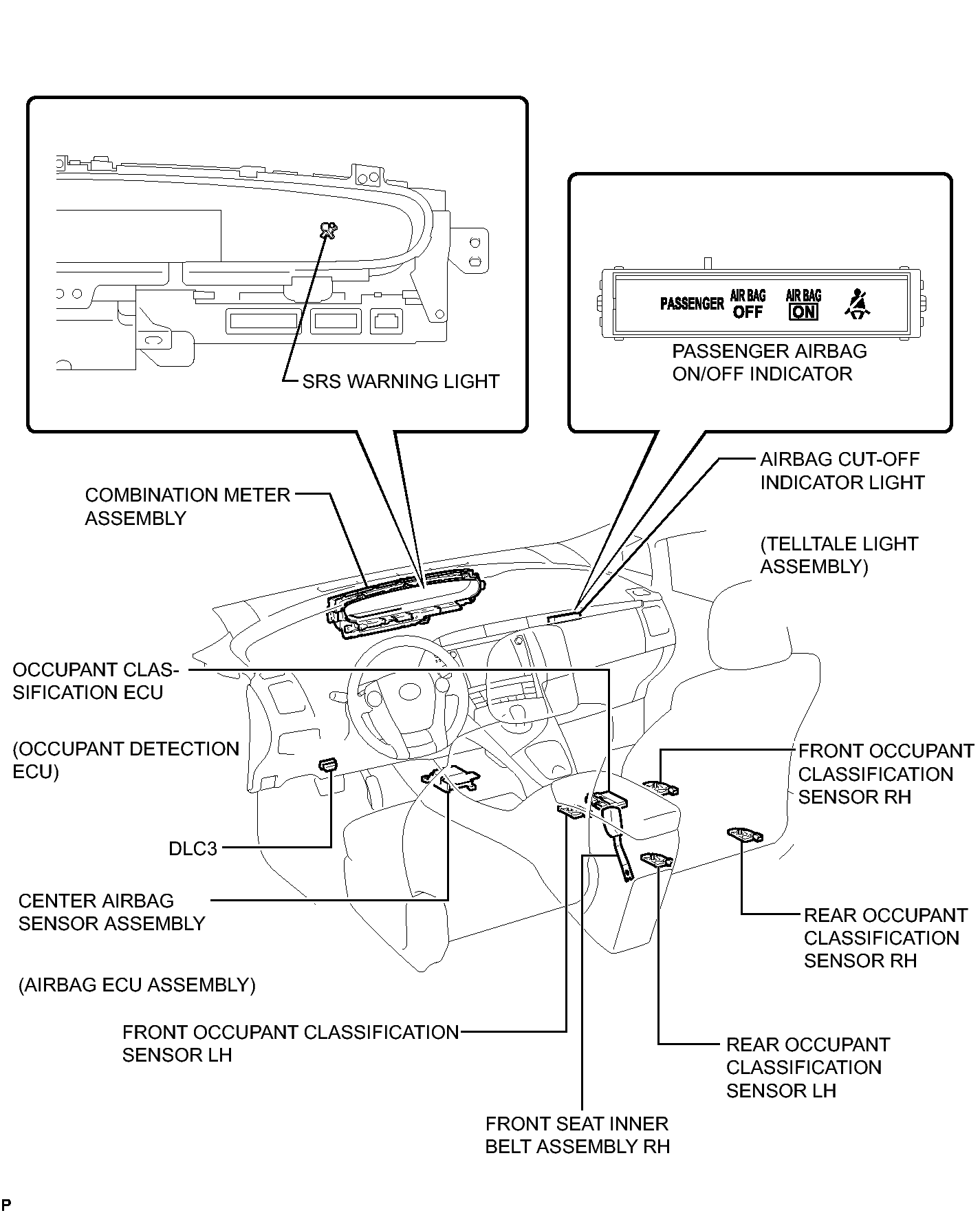

Fig 1: Identifying Occupant Classification System Component Location (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 1: Identifying Occupant Classification System Component Location (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
