Room Temperature Sensor: Components: Illustration

WARNING: This page is about a different variant/trim than selected.

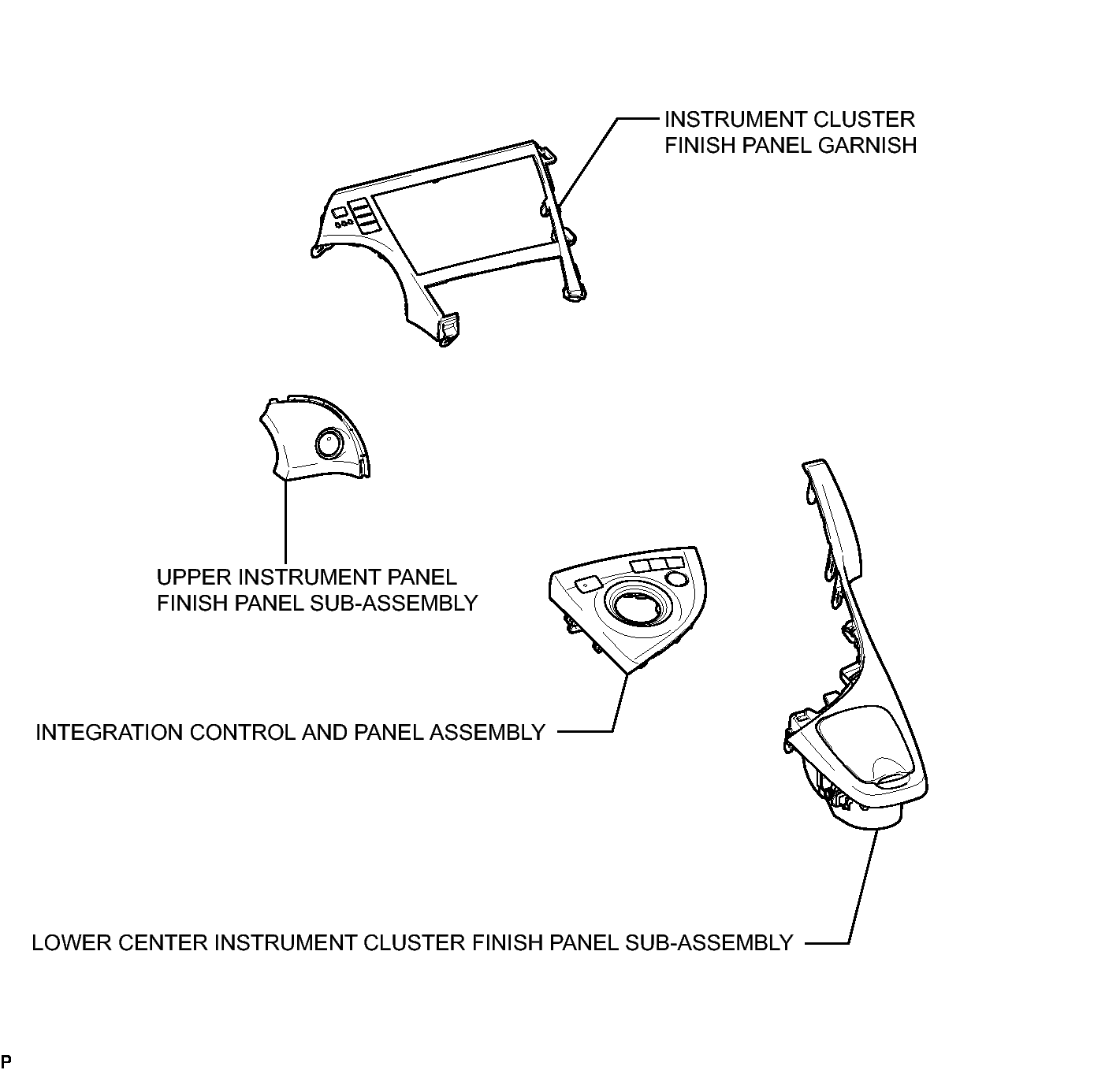

Fig 1: Identifying Room Temperature Sensor Replacement Components (1 Of 2)
GTY341537Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

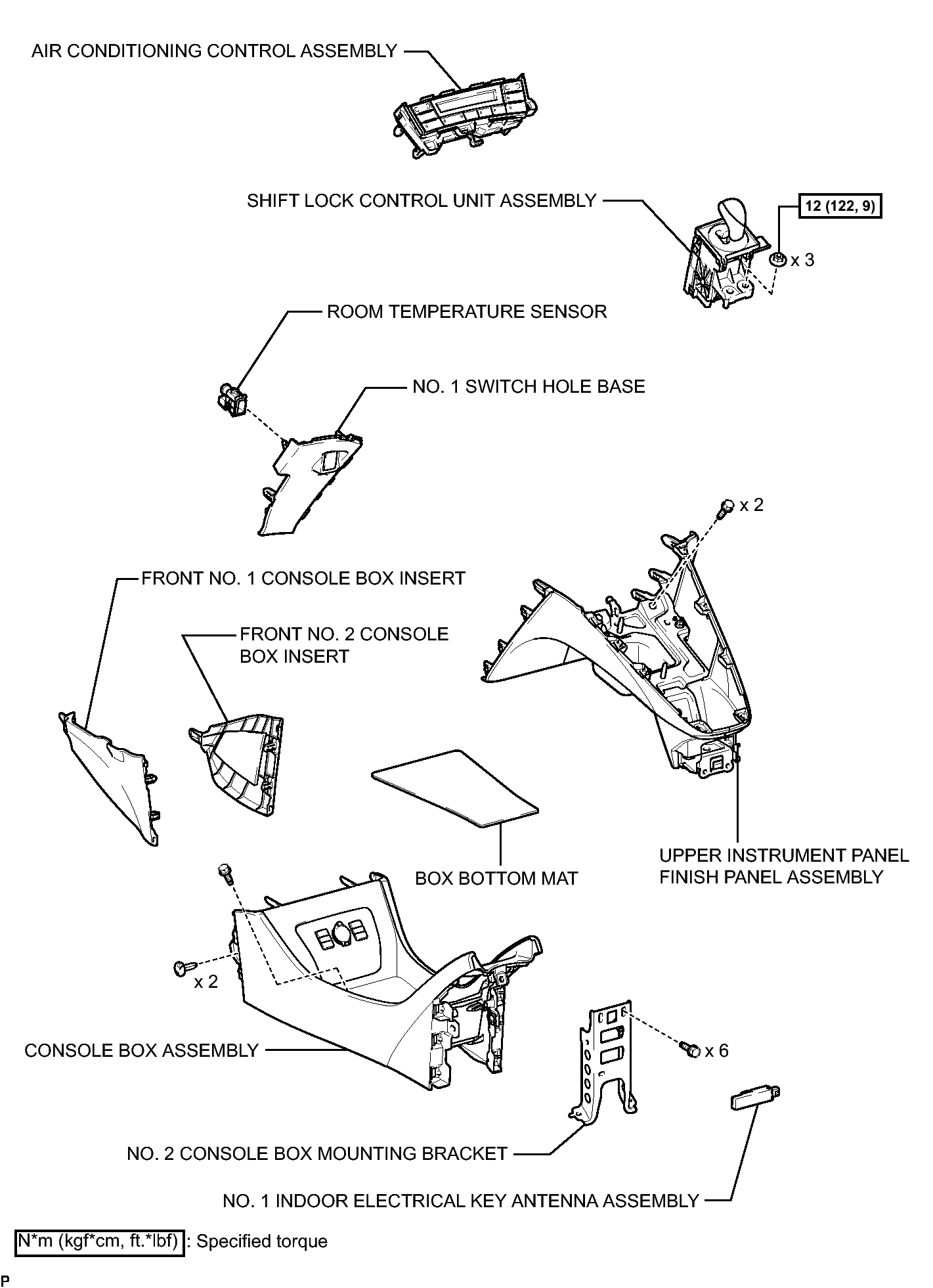

Fig 1: Identifying Room Temperature Sensor Replacement Components With Torque Specifications (2 Of 2)
GTY343458Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
