Intake Manifold: Components: Illustration

WARNING: This page is about a different variant/trim than selected.

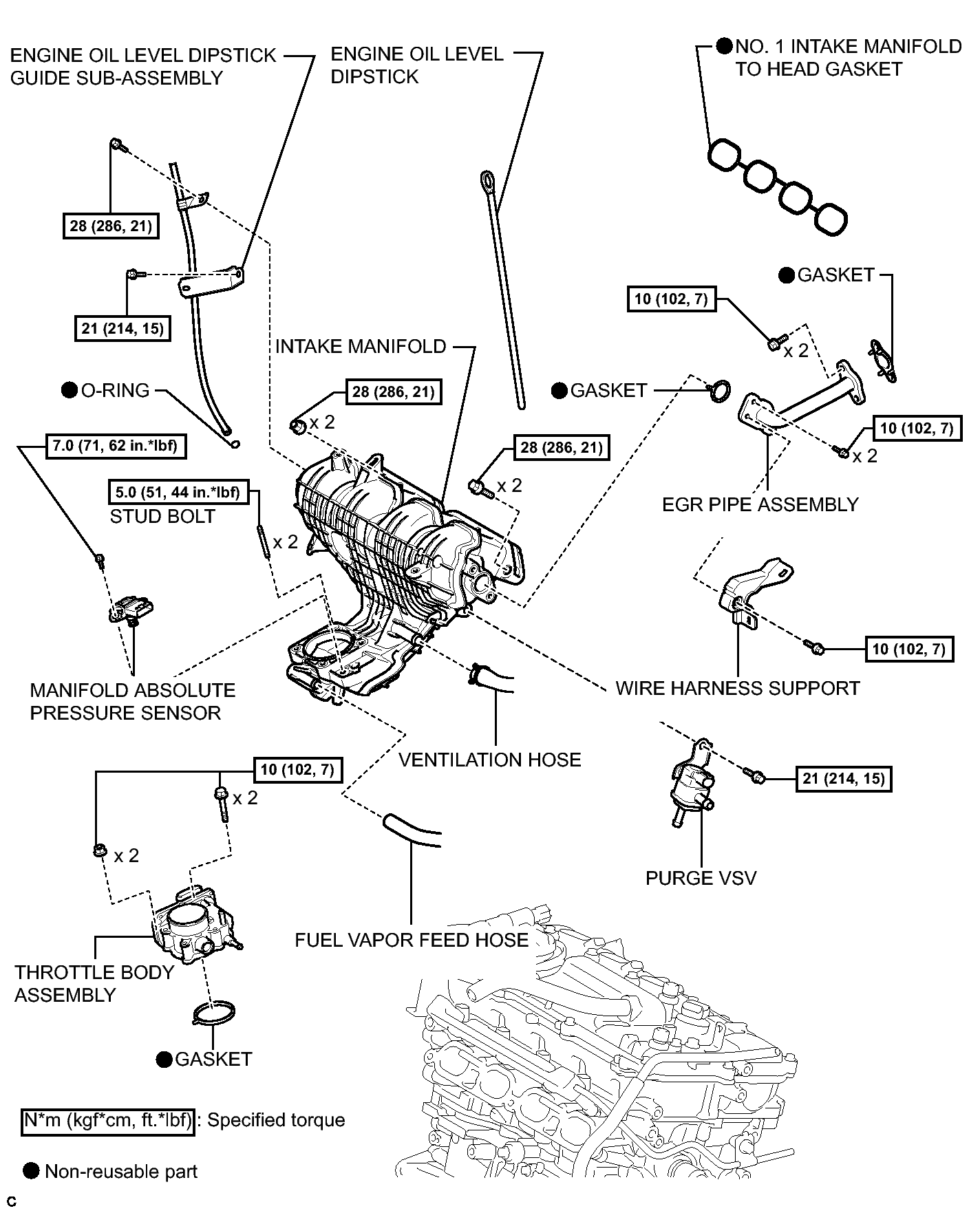

Fig 1: Identifying Intake Manifold Replacement Components With Torque Specifications

GTY332134

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
